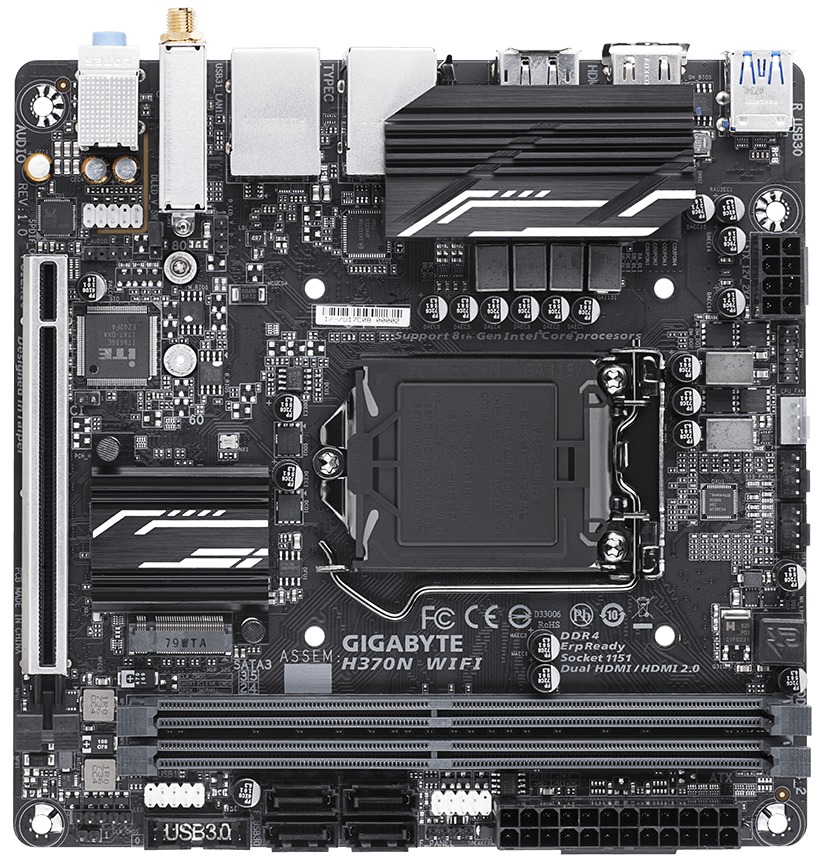

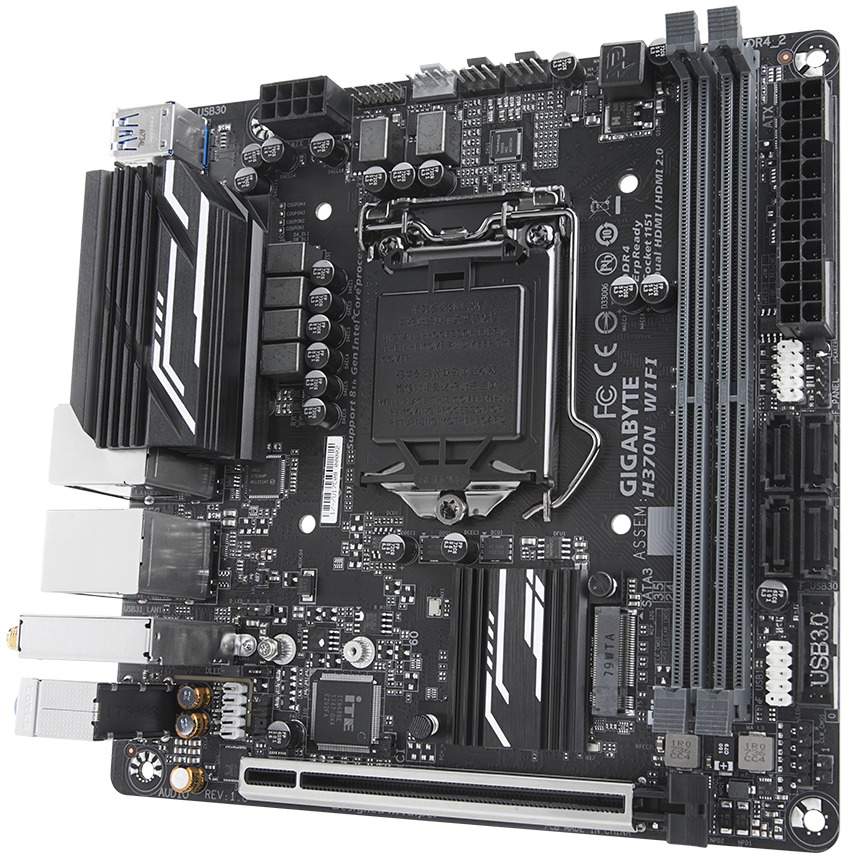

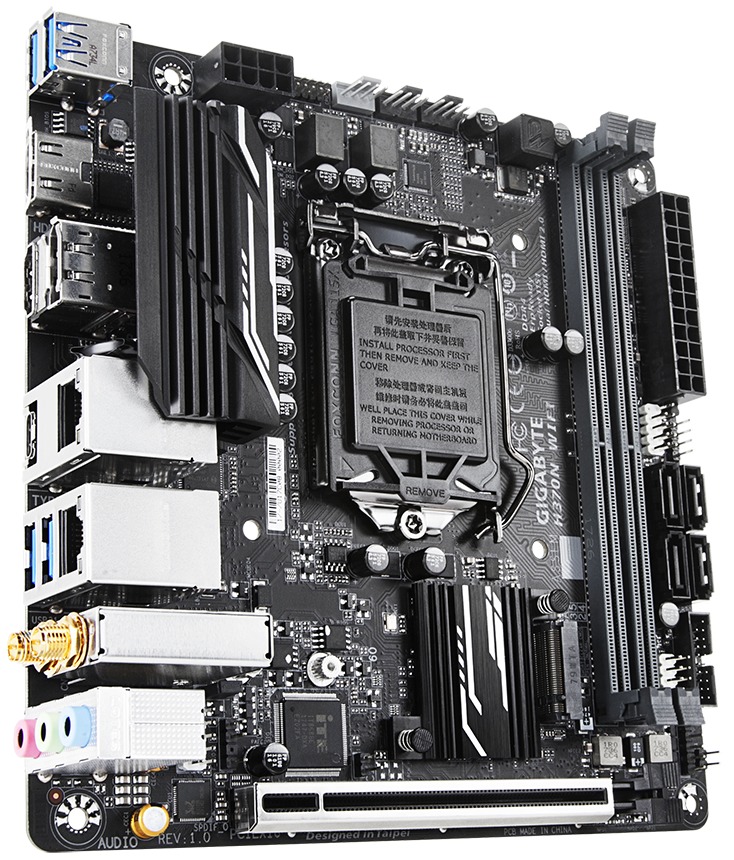

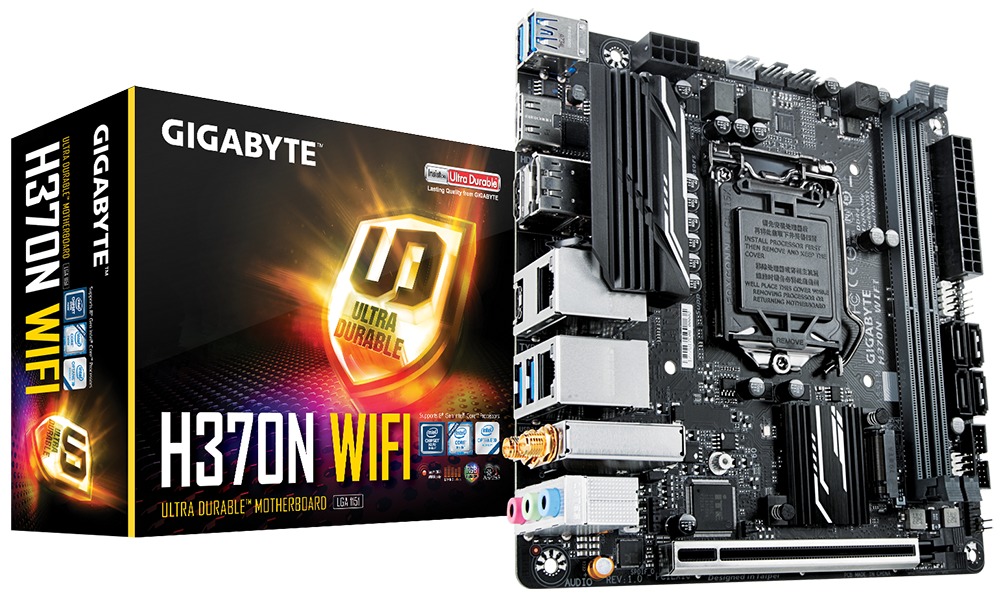

Gigabyte H370N WIFI ITX Motherboard

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$269.00
or 4 payments of $67.25 with Learn more
Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships today!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tonight 6-9pm using Same Day Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tonight to qualifying addresses in Auckland. Learn more
  • Tomorrow using standard courier delivery

Buy together and save

List price: $430.00

Buy together: $425.98 (save 1%)

25% of people buy Gigabyte H370N WIFI ITX Motherboard and 650W Corsair TX650M 80 Plus Gold Power Supply.

Description

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • Intel® CNVi 802.11ac Wave2 2T2R WIFI
  • Immersive Gaming ViBes with ALC1220-VB and High Quality Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • RGB FUSION with Digital LED & RGB LED strips Support
  • Intel® USB 3.1 Gen1 USB Type-C™
  • Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Dual HDMI (2.0a+1.4) and DisplayPort
  • Ultra Durabl PCIe Armor Design Design
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Intel® Optane™ Memory Ready
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

Specifications

  • CPU
    • Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package
    • L3 cache varies with CPU
    • (Please refer “CPU Support List” for more information.)
  • Chipset
    • Intel® H370 Express Chipset
  • Memory
    • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    • Dual channel memory architecture
    • Support for DDR4 2666/2400/2133 MHz memory modules
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    • (Please refer “Memory Support List” for more information.)
  • Onboard Graphics
    • Integrated Graphics Processor+MegaChips MCDP2800 chip:
    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    • Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    • (Requires the latest Intel® graphics driver from the GIGABYTE website.)
    • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    • Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    • Support for HDMI 1.4 version and HDCP 2.2.
    • Support for up to 3 displays at the same time
    • Maximum shared memory of 1 GB
  • Audio
    • Realtek® ALC1220 codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • Support for S/PDIF Out
  • LAN
    • 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • Wireless Communication module
    • Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5
    • Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
    • Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    • 1 x PCI Express x16 slot, running at x16
    • (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • Storage Interface Chipset:
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)*
    • The connector is on the back of the motherboard.
    • 4 x SATA 6Gb/s connectors
    • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    • Intel® Optane™ Memory Ready
  • USB
    • Chipset:
      • 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
      • 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      • 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors
    • 1 × 24-pin ATX main power connector
    • 1 × 8-pin ATX 12V power connector
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x digital LED strip header
    • 1 x digital LED strip power select jumper
    • 1 x RGB (RGBW) LED strip header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.1 Gen 1 header
    • 1 x USB 2.0/1.1 header
    • 1 x S/PDIF Out header
    • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S modu­le only)
    • 1 x speaker header
    • 1 x Clear CMOS jumper
    • 1 x chassis intrusion header

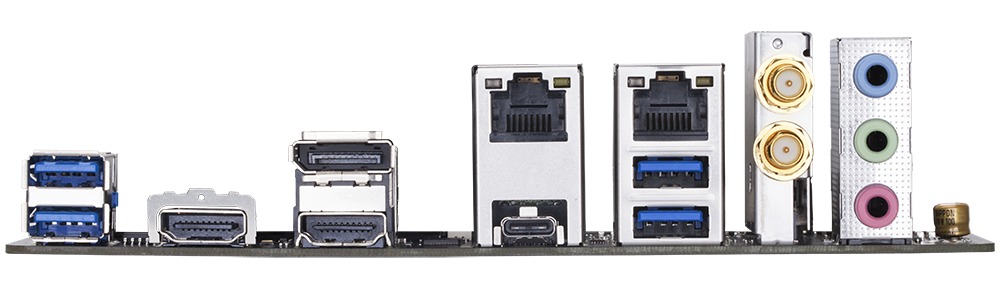

  • Back Panel Connectors
    • 1 x DisplayPort
    • 2 x HDMI ports
    • 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    • 4 x USB 3.1 Gen 1 ports
    • 2 x RJ-45 ports
    • 2 x SMA antenna connectors (2T2R)
    • 3 x audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control
    • Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    • 2 × 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • Support for DualBIOS™
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for APP Center
    • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • 3D OSD
    • @BIOS
    • AutoGreen
    • Cloud Station
    • EasyTune
    • Easy RAID
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • Platform Power Management
    • RGB Fusion
    • Smart Backup
    • Smart Keyboard
    • Smart TimeLock
    • Smart HUD
    • System Information Viewer
    • USB Blocker
    • V-Tuner
    • Support for Q-Flash
    • Support for Xpress Install
  • Bundle Software
    • Norton® Internet Security (OEM version)
    • cFosSpeed
  • Operating System
    • Support for Windows 10 64-bit
  • Form Factor
    • Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark
    • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Release date NZ
April 6th, 2018
Manufacturer code:
GA-H370N-WIFI
Warranty Period
1 year
Brand
Manufacturer
Motherboard Form Factor(s)
  • Mini-ITX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
2
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
32
Number of VGA Ports
0
Number of DVI Ports
0
Number of DisplayPort Ports
1
Number of HDMI Ports
2
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
0
Number of M.2 Sockets
1
Number of SATA Headers
4
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
1
Number of USB 3.0 Type-A Back Panel Ports
4
Number of USB 3.1 G2 Type-A Back Panel Ports
0
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Supported Wireless Networking Standards
  • 802.11ac
Box Dimensions (mm)
225x195x80
UPC
889523012901
Product ID
27821591
