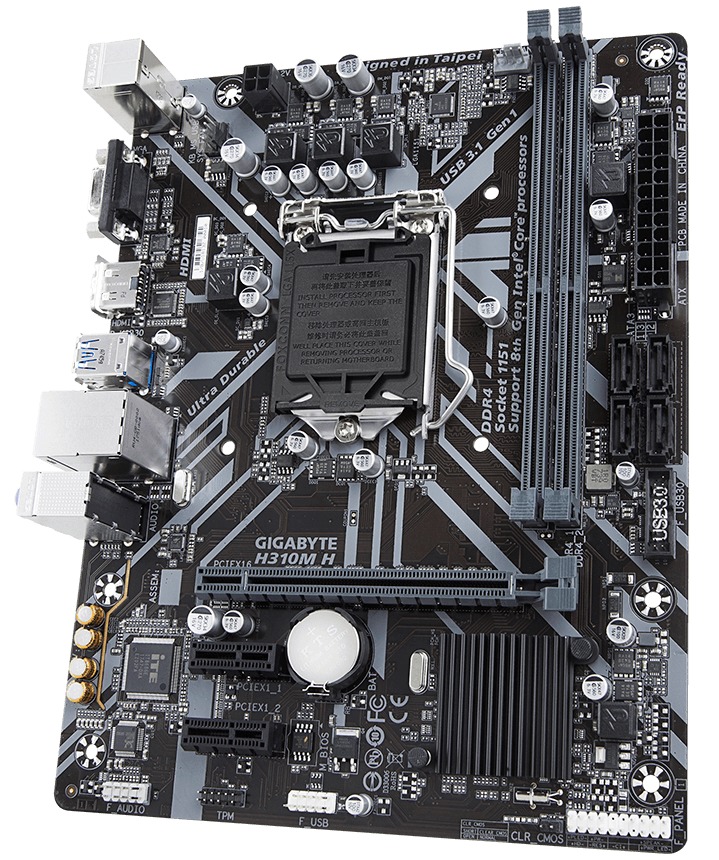

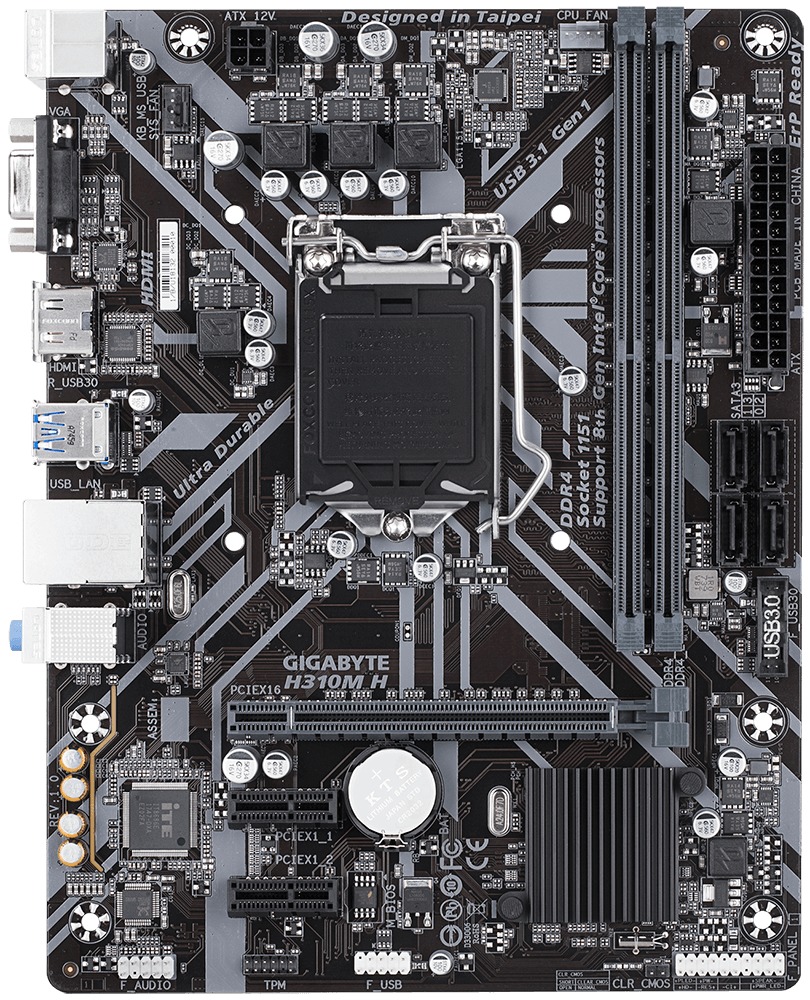

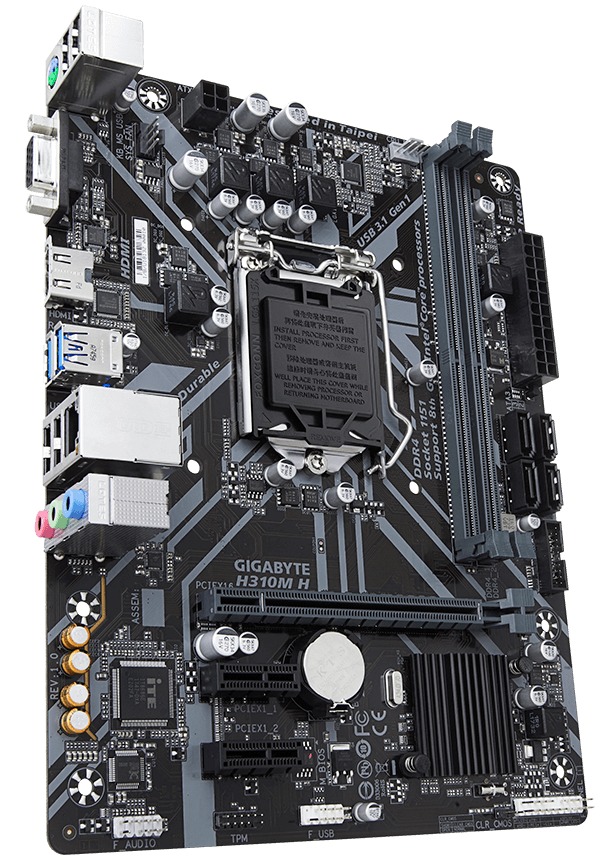

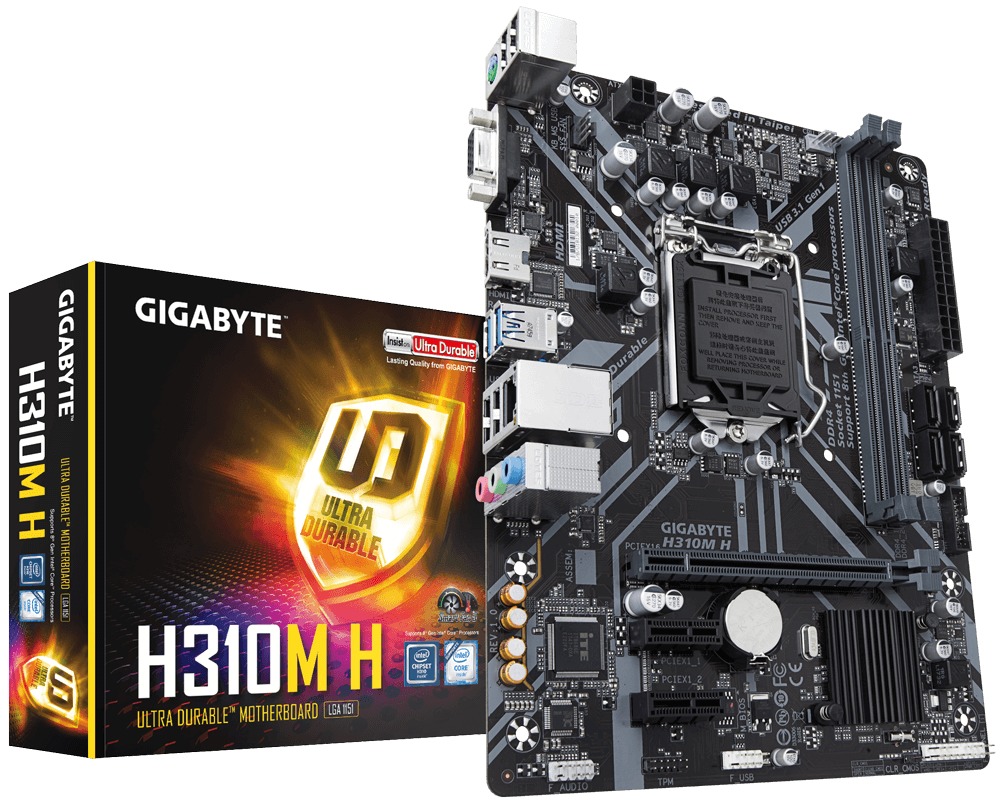

Gigabyte H310M H MATX Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

Gigabyte H310M H MATX Motherboard

Customer rating

Click to share your rating 5 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design

Specifications

  • CPU
    • Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    • L3 cache varies with CPU
    • (Please refer “CPU Support List” for more information.)
  • Chipset
    • Intel® H310 Express Chipset
  • Memory
    • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    • Dual channel memory architecture
    • Support for DDR4 2666/2400/2133 MHz memory modules
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    • (Please refer “Memory Support List” for more information.)
  • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support:
      • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
      • 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      • Support for HDMI 1.4 version and HDCP 2.2.
    • Maximum shared memory of 1 GB
  • Audio
    • Realtek® ALC887 codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    • Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    • 1 x PCI Express x16 slot, running at x16
    • (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • 2 x PCI Express x1 slots
    • (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    • Chipset:
      • 4 x SATA 6Gb/s connectors
    • USB Chipset:
      • 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    • 1 × 24-pin ATX main power connector
    • 1 × 4-pin ATX 12V power connector
    • 4 x SATA 6Gb/s connectors
    • 1 x CPU fan header
    • 1 x system fan header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.1 Gen 1 header
    • 1 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S modu­le only)
    • 1 x Clear CMOS jumper

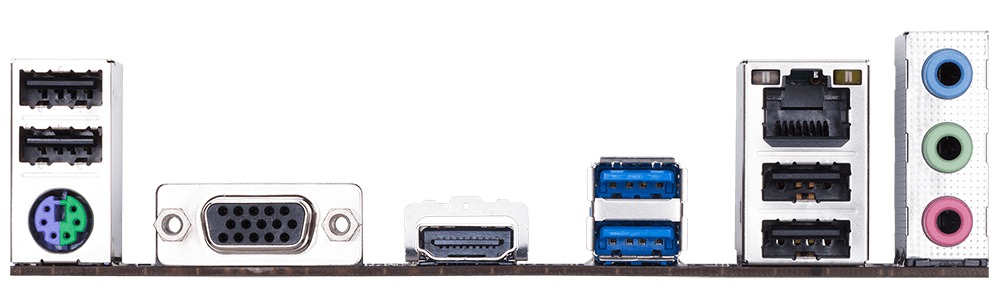

  • Back Panel Connectors
    • 1 x PS/2 keyboard/mouse port
    • 1 x D-Sub port
    • 1 x HDMI port
    • 2 x USB 3.1 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control
    • Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    • 1 × 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for APP Center
    • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • 3D OSD
    • @BIOS
    • AutoGreen
    • Cloud Station
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • Platform Power Management
    • Smart Backup
    • Smart Keyboard
    • Smart TimeLock
    • Smart HUD
    • System Information Viewer
    • USB Blocker
    • V-Tuner
    • Support for Q-Flash
    • Support for Xpress Install
  • Bundle Software
    • Norton® Internet Security (OEM version)
  • Operating System
    • Support for Windows 10 64-bit
  • Form Factor
    • Micro ATX Form Factor; 22.6cm x 17.4cm
  • Remark
    • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Release date NZ
April 6th, 2018
Manufacturer code:
H310M H (rev. 1.0)
Warranty Period
1 year
Brand
Manufacturer
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
2
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
32
Number of VGA Ports
1
Number of DVI Ports
0
Number of DisplayPort Ports
0
Number of HDMI Ports
1
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
2
Number of M.2 Sockets
0
Number of SATA Headers
4
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
1
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Number of USB Type-C Back Panel Ports
0
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
270x235x50
UPC
889523013465
Product ID
27821813
