Features
- Powered by GeForce® RTX 2080
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion – 16.7M customizable color lighting
- Metal Back Plate
Core Clock
- 1800 MHz in OC mode
- 1785 MHz in Gaming mode
- (Reference Card: 1710 MHz)

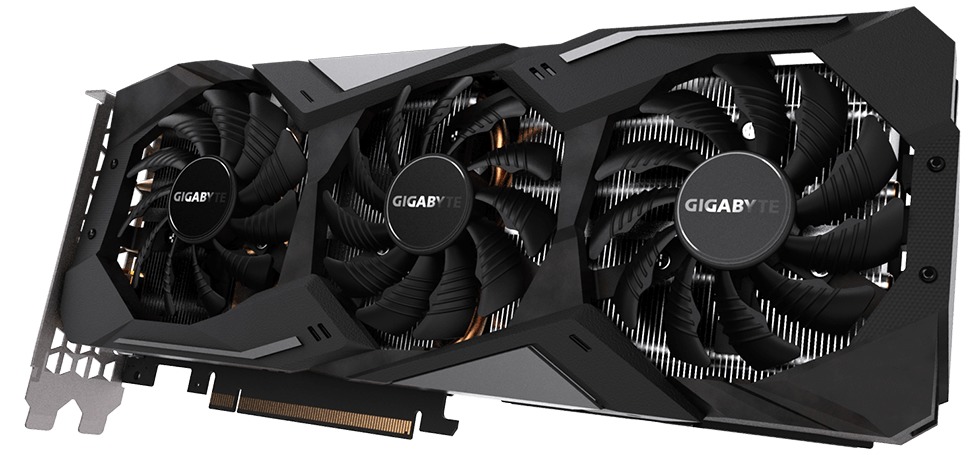

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3× 80mm unique blade fans, alternate
spinning fan, 6 composite copper heat pipes, heat-pipe direct touch and 3D
active fan functionality, together delivering an effective heat dissipation
capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve
the turbulent airflow of three fans. The biggest problem with the three fans is
turbulence. Since the fans rotate in the same direction, the airflow direction
is opposite between the fans, which will cause turbulent airflow and reduce heat
dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction,
so that the airflow direction between the two fans is the same, reducing the
turbulence and enhancing the airflow pressure.
- Graphics Processing GeForce® RTX 2080
- Core Clock
- 1800 MHz in OC mode
- 1785 MHz in Gaming mode
- (Reference Card: 1710 MHz)
- CUDA® Cores 2944
- Memory Clock 14000 MHz
- Memory Size 8 GB
- Memory Type GDDR6
- Memory Bus 256 bit
- Memory Bandwidth (GB/sec) 448 GB/s
- Card Bus PCI-E 3.0 × 16
- Digital max resolution 7680×4320@60Hz
- Multi-view 4
- Card size 280.35116.4540.24mm
- PCB Form ATX
- DirectX 12
- OpenGL 4.5
- Recommended PSU 650W ( With One 8-Pin and One 6-Pin EXTERNAL POWER CONNECTOR)
- I/O
- DisplayPort 1.4 x3, HDMI 2.0b x1,
- USB Type-C ™ (support VirtualLinkTM) x1
- SLI support 2-way NVIDIA NVLINKTM
