PC Parts & Components:

Gigabyte GeForce GTX 1060 6GB OC Graphics Card

Sorry, this product is not currently available to order

Here are some other products you might consider...

Gigabyte GeForce GTX 1060 6GB OC Graphics Card

Boost: 1797MHz/ Base: 1582MHz in OC Mode
Click to share your rating 54 ratings (4.9/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Customer reviews

4.9 out of 5 stars Based on 54 Customer Ratings

5 star
(49)
4 star
(5)
3 star
(0)
2 star
(0)
1 star
(0)
Showing top 3 most helpful reviews.

View all 8 reviews...

Write a Review
"Great price to performance!"
5 stars"
Purchased on Mighty Ape

I got this card because it fit into my budget and was thinking of getting a better card later to keep up with newer games but I don't really need to. I havn't had a problem with anything really.

7 out of 7 people found this review helpful.
"Keith"
5 stars"
Purchased on Mighty Ape

Fantastic card, great performer. Very quiet too, and will run silently in most circumstances. Not as hot or power hungry as previous generation cards.

Note, there are no accessories or adapters included.

5 out of 5 people found this review helpful.
"Its a 1060... Its good"
5 stars"
Purchased on Mighty Ape

Its a really good graphics card and wasn't too expensive

4 out of 4 people found this review helpful.

Description

  • Powered by GeForce® GTX 1060
  • Integrated with 6GB GDDR5 192bit memory
  • WINDFORCE 2X with Blade Fan Design
  • Support up to 8K display @60Hz
  • Build with 4+1 power phases
  • Boost: 1797MHz/ Base: 1582MHz in OC Mode
  • Boost: 1771MHz/ Base: 1556MHz in Gaming Mode

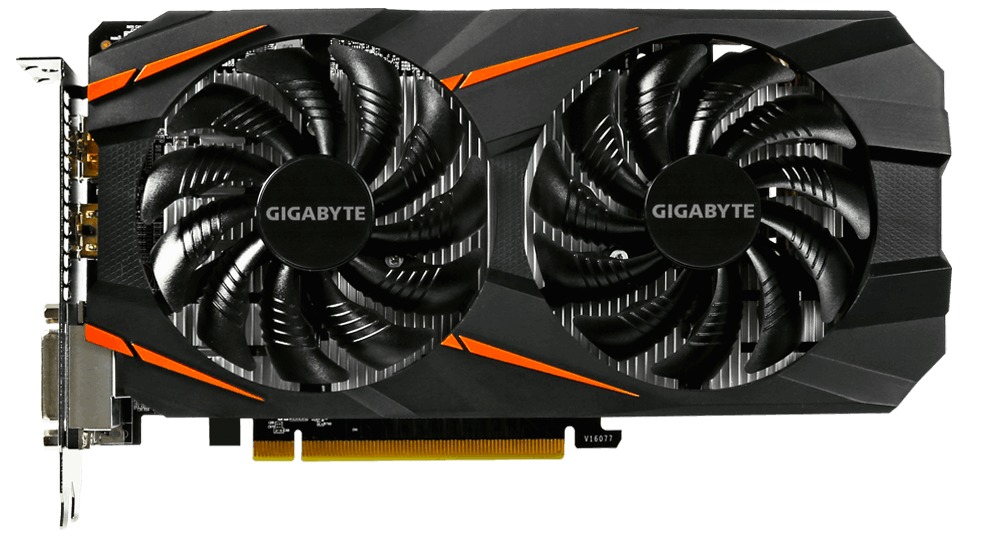

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

WINDFORCE 2X Cooling System- Fans
Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

WINDFORCE Cooling System- protection back plate

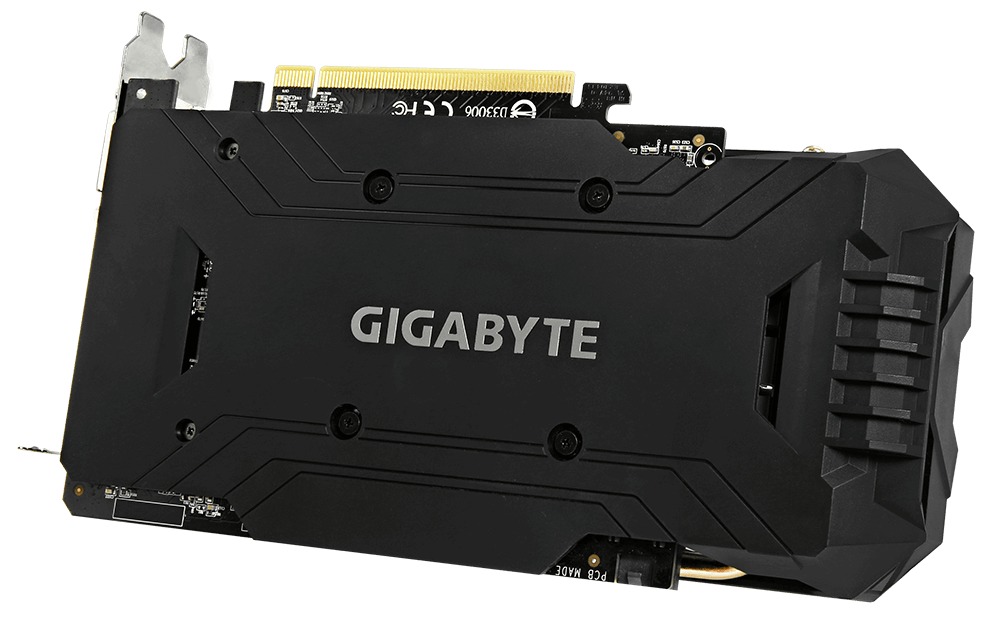

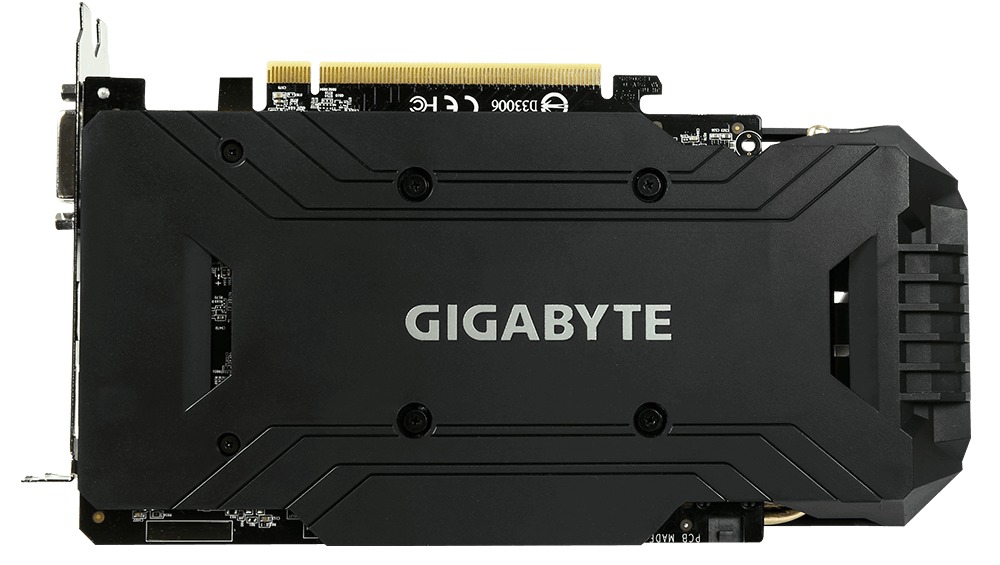

Protection back plate
Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.

Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Specs

  • Core Clock
    • Boost: 1797MHz/ Base: 1582MHz in OC Mode
    • Boost: 1771MHz/ Base: 1556MHz in Gaming Mode
  • Graphics Processing GeForce® GTX 1060
  • Memory Clock 8008 MHz
  • Process Technology 16 nm
  • Memory Size 6 GB
  • Memory Type GDDR5
  • Memory Bus 192 bit
  • Card Bus PCI-E 3.0 × 16

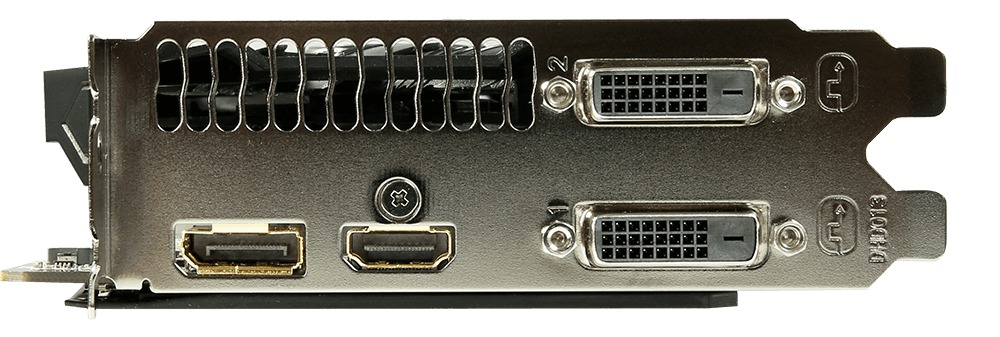

  • Output
    • Dual-link DVI-D *2
    • HDMI-2.0b*1 (Max Resolution: 4096×2160 @60 Hz)
    • Display Port-1.4 *1 (Max Resolution: 7680×4320 @60 Hz)
    • Digital max resolution 7680×4320
  • Multi-view 4
  • Card size H=39 L=223 W=121 mm
  • PCB Form ATX
  • DirectX 12
  • OpenGL 4.5
  • Power Connectors 6 pin*1
Release date NZ
August 17th, 2016
Manufacturer code:
GV-N1060WF2OC-6GD
Warranty Period
1 Year
Brand
Number of Full Length Full Height Expansion Slots
2
Depth (mm)
223
Interface Type
PCI Express x16
Number of PCI Express 6-pin Power Connectors
1
GPU Memory Size (GB)
6
Number of DVI Ports
2
Number of DisplayPort Ports
1
Number of HDMI Ports
1
Minimum PSU Output Wattage (W)
500
Box Dimensions (mm)
335x240x60
UPC
889523006702
All-time sales rank
Top 5000
Product ID
25724404
