Computer Components:

Gigabyte GA-Z270X-Gaming SOC ATX Motherboard

Sorry, this product is no longer available to order

Here are some other products you might consider...

Gigabyte GA-Z270X-Gaming SOC ATX Motherboard

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Features

  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
  • 3-Way Graphics Support with Ultra Durable™ Metal Shielding over PCIe Slots
  • Support OC Touch Panel for Extreme Overclocking
  • Triple NVMe PCIe SSDs in RAID 0 Support
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  • Intel® Optane™ Memory Ready
  • ALC1220 120dB SNR HD Audio with Smart Headphone Amp
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • USB DAC-UP 2 with Adjustable Voltage
  • RGB FUSION LED Light Show design
  • Swappable Overlay for Accent LED
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

RGB FUSION – Set the Color that Matches Your Style
GIGABYTE's 200 se­ries motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you'll have a blast making your GIGABYTE your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC's temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.Smart Headphone AmpAutomatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics-preventing issues such as low volume and distortion.

Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)GIGABYTE' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

GIGABYTE Extreme USB 3.1 Motherboards
The ASMEDIA 2142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Support for DDR4 XMP Up to 4133MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Specifications

CPU
Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium®proces­sors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Chipset
Intel® Z270 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz* Support for HDMI 1.4 version.
Maximum shared memory of 1 GB

Audio
Realtek® ALC1220 codec
? TI Burr Brown® NE5532 operational amplifier
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed,be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)* The PCIEX4_1 slot shares bandwidth with the M2P_32G connector. The PCIEX4_1 slot and M2P_32G connector operate at up to x2 mode when both are populated.* The PCIEX4_2 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4_2 slot is populated, the PCIEX16 slot operates at up to x8 mode and the PCIEX8 operates at up to x4 mode.
2 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
Chipset 2 x M.2 connectors (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support)
1 x U.2 connector
2 x SATA Express connectors
6 x SATA 6Gb/s connectors (SATA3 0~5)
Support for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to “1–10 Internal Connectors,” for the installation notices for the PCIEX4_1/M.2/SATA connectors.
ASMedia® ASM1061 chip 2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

USB
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports onboard, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 × 4-pin ATX 12V power connector
1 x U.2 connector
2 x M.2 Socket 3 connectors
2 x SATA Express connectors
8 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 3.1 Gen 1 ports
1 x USB 2.0/1.1 header
1 x OC Touch header
1 x RGB (RGBW) LED strip extension cable header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
1 x OC Turbo button
1 x CPU Ratio Down button
1 x CPU Ratio Up button
1 x audio gain control switch
1 x BIOS switch
1 x DualBIOS™ switch

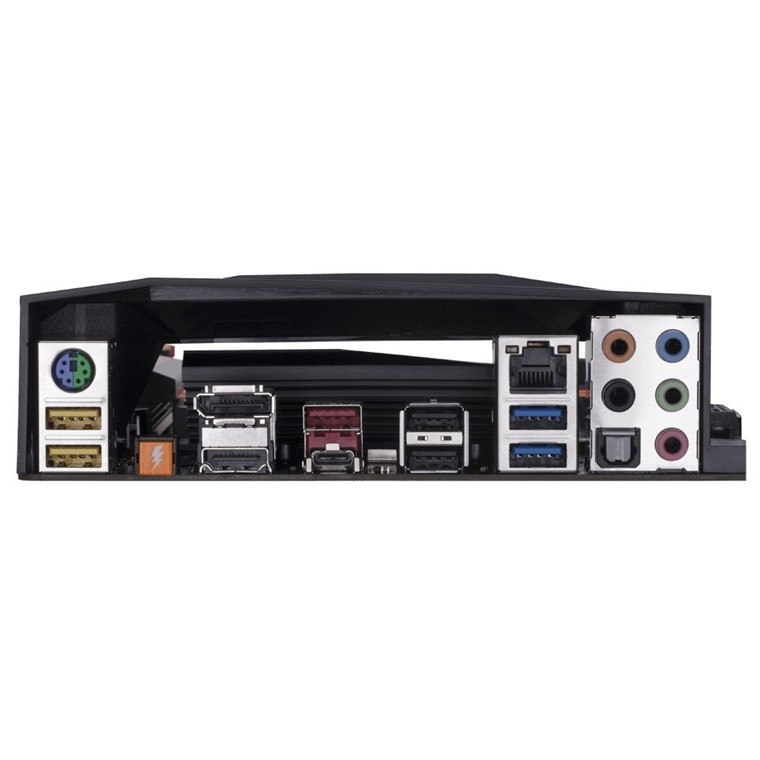

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x OC IGNITION button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGre­enBIOS SetupColor TemperatureCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSystem Information ViewerUSB BlockerUSB DAC-UP 2V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton® Internet Security (OEM version)
Intel® Optane™ Memory Ready
cFosSpeed

Operating System
Support for Windows 10 64-bit (for 7th Generation Intel® processors)
Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel® processors)* Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7.

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

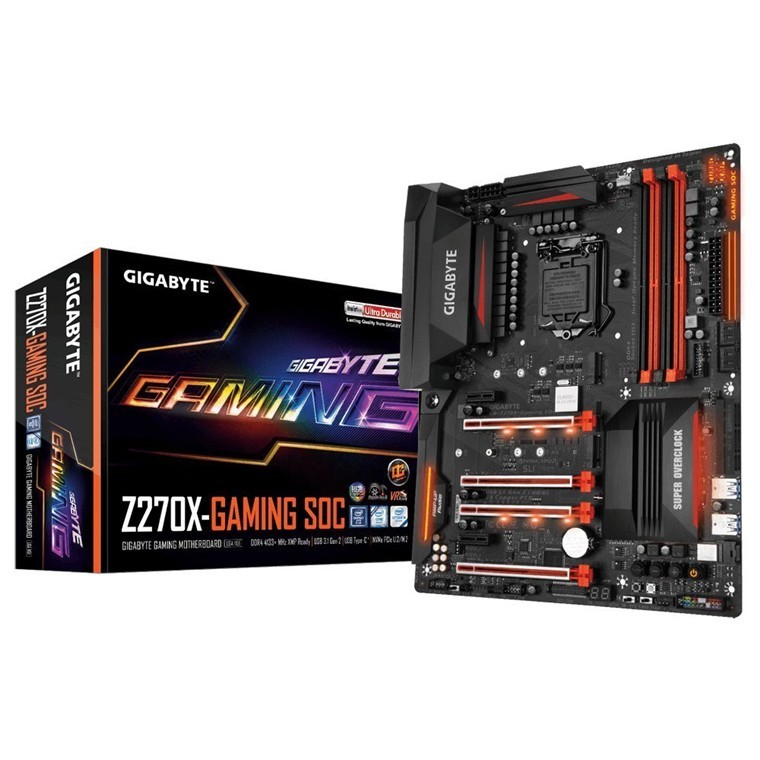

Box Contents
GA-Z270X-Gaming SOC motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Four SATA cables
I/O Shield
One G Connector
One pack of back I/O dust covers
One GC-SLI2P bridge connector

Release date NZ
August 9th, 2017
Manufacturer code:
GA-Z270X-Gaming SOC
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Motherboard Chipset
Intel Z270
Supported CPU Socket
LGA 1151 (Socket H4)
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Channels
  • Dual Channel
Maximum Memory Size (GB)
64
Supported Multi-GPU Technology(ies)
  • AMD 3-Way CrossFireX
  • NVIDIA 2-Way SLI
Number of DVI Ports
1
Number of PCI Express x16 Slots
4
Number of PCI Express x1 Slots
2
Number of M.2 Sockets
2
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
350x290x90
UPC
889523008744
Product ID
26877068
