Computer Components:

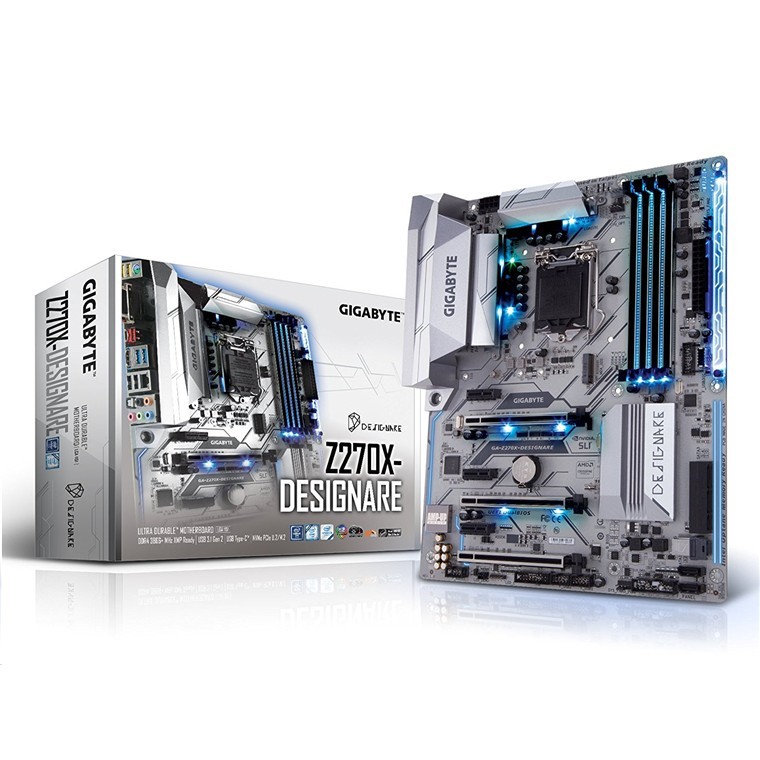

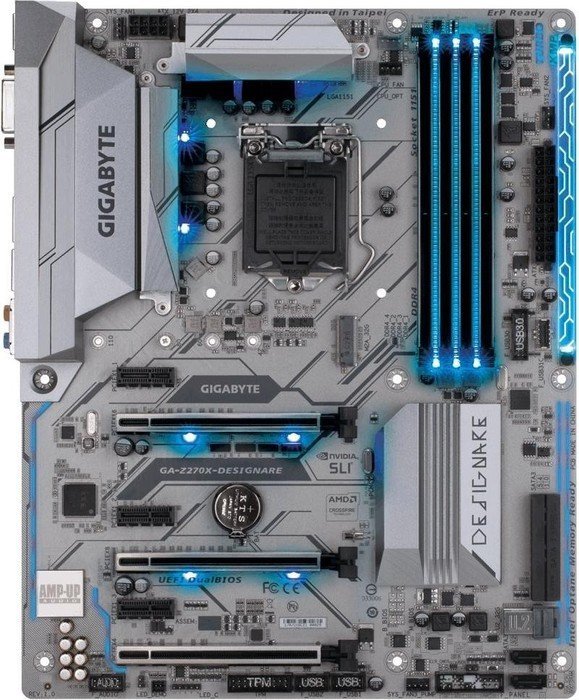

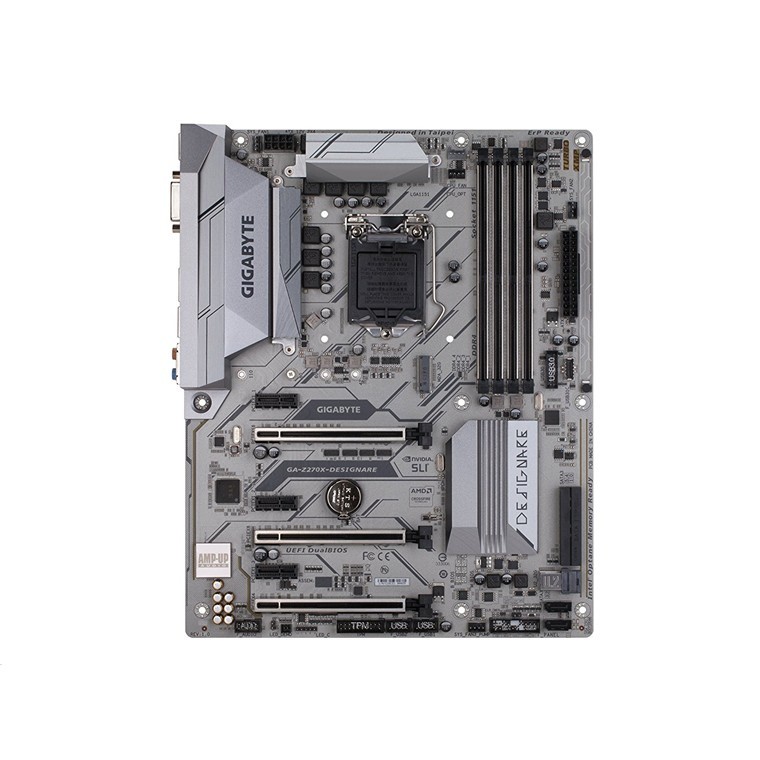

Gigabyte GA-Z270X-DESIGNARE ATX Motherboard

Sorry, this product is no longer available to order

Here are some other products you might consider...

Gigabyte GA-Z270X-DESIGNARE ATX Motherboard

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Features

  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Front USB 3.1 Gen 2 Header
  • Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
  • 3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Dual NVMe PCIe SSDs in RAID 0 Support
  • NVMe PCIe Gen3 x4 U.2 Connector
  • Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  • Intel® Optane™ Memory Ready
  • ALC1220 120dB SNR HD Audio with Smart Headphone Amp
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • USB DAC-UP 2 with Adjustable Voltage
  • RGB FUSION LED Light Show Design
  • Swappable Overlay for Accent LED
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • Silver Alloy Coated PCB Design
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

RGB FUSION – Set the Color that Matches Your Style

GIGABYTE's 200 se­ries motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you'll have a blast making your GIGABYTE your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC's temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics-preventing issues such as low volume and distortion.

Fast Onboard Storage with NVMe – PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Support for DDR4 XMP Up to 3866MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3866MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Refreshed BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Supports High-Performance EK Monoblock
Designed and engineered in co-operation with EK Water Blocks, this monoblock uses the award winning EK-Supremacy EVO cooling engine to ensure the best possible CPU cooling. It directly cools the CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with a system using weaker water pumps.

Specifications

CPU Socket Type
LGA 1151
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipset
Intel Z270
Onboard Video Chipset
Integrated Graphics Processor – Intel HD Graphics support1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz* Support for HDMI 1.4 version.Maximum shared memory of 1GB
Number of Memory Slots
4×288pin
Memory Standard
DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot will operates at up to x1 mode.
PCI Express x1
3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
SATA Express
2 x SATA Express connectors
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support)1 x U.2 connector
SATA RAID
Support for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to “1–8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1 Channels

Onboard LAN
LAN Chipset
Intel GbE LAN chip
Max LAN Speed
10/100/1000Mbps

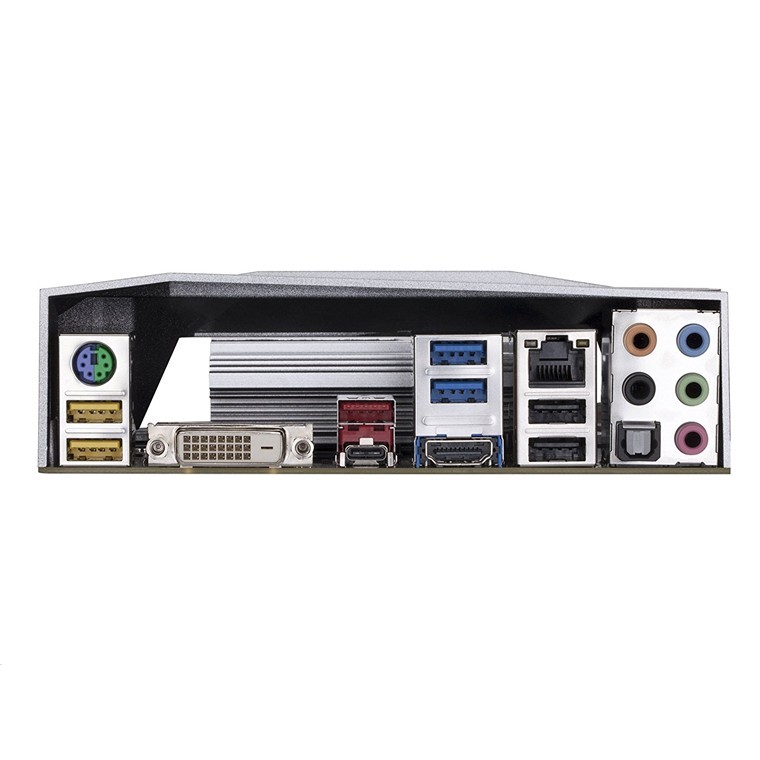

Rear Panel Ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI
1 x RJ45
1 x USB Type-C port, with USB 3.1 Gen 2 support1 x USB 3.1 Gen 2 Type-A port (red)4 x USB 3.1 Gen 1 ports
2 x USB 2.0
1 x Optical
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB
1 x USB 3.1 Gen 2 header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers

Other Connectors
1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers1 x system fan/water cooling pump header1 x RGB (RGBW) LED strip extension cable header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper
Power Pin
1 × 24-pin ATX main power connector1 × 8-pin ATX 12V power connector

Release date NZ
August 9th, 2017
Manufacturer code:
GA-Z270X-DESIGNARE
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Motherboard Chipset
Intel Z270
Supported CPU Socket
LGA 1151 (Socket H4)
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Supported Multi-GPU Technology(ies)
  • AMD 3-Way CrossFireX
  • NVIDIA 2-Way SLI
Number of DVI Ports
1
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
3
Number of M.2 Sockets
1
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
350x270x90
UPC
889523009277
Product ID
26877067
