Gigabyte GA-Q170M-MK Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

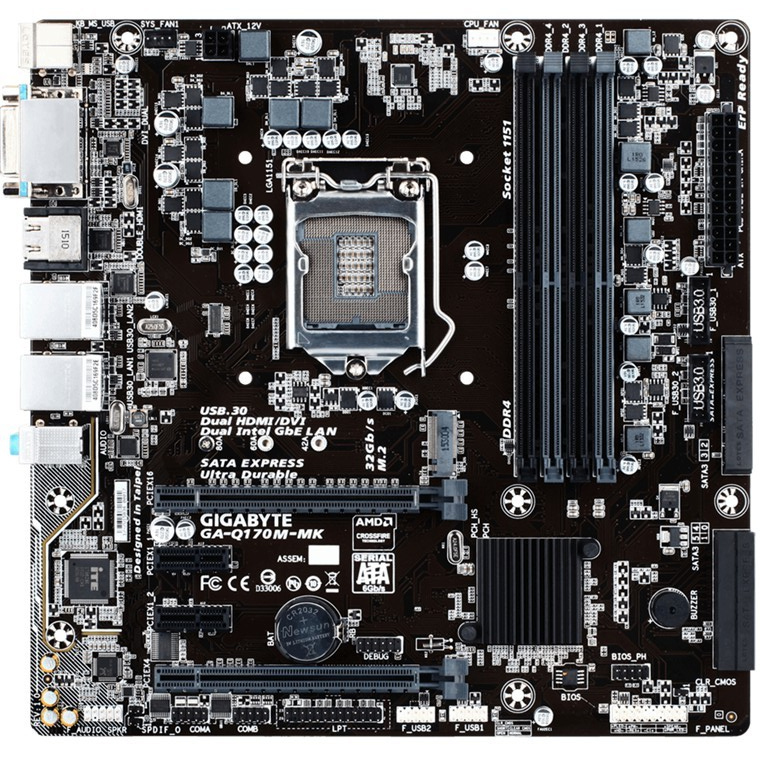

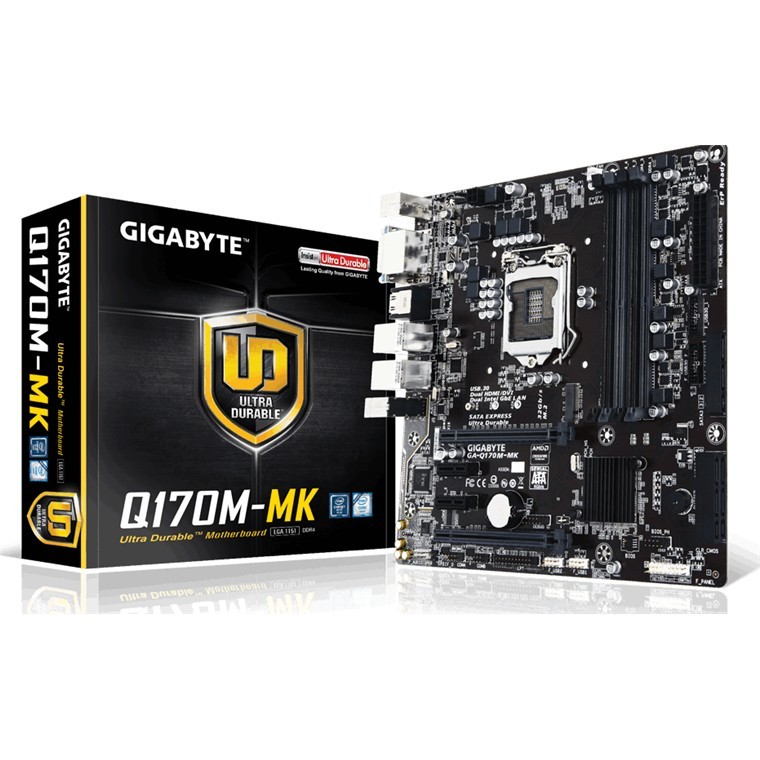

Gigabyte GA-Q170M-MK Motherboard

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

Features

  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 4 DIMMs
  • 2-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 8-channel HD Audio with High Quality Audio Capacitors
  • Dual Intel® GbE LAN
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Dual HDMI , DVI-D, DVI-I
  • GIGABYTE UEFI BIOS Technology
  • Support Intel vPro Techonogy
  • Support Intel® Small Business Advantage

GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

Specifications

CPU
Support for 7th/6th Generation Intel®Core™ i7 processors/In­tel®Core™ i5 processors/ Intel®Core™ i3 processors/In­tel®Pentium®pro­cessors/ Intel®Celeron®pro­cessors in the LGA1151 package

  • For 7th Generation Intel®Core™ processors support need to update the latest BIOS.

L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)

Chipset
Intel®Q170 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

  • Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel®HD Graphics support 1 x DVI-I port, supporting a maximum resolution of 1920×1200@60 Hz

  • Because the upper HDMI port shares bandwidth with the DVI-I port, the DVI-I port will become unavailable if the upper HDMI port is in use. The DVI-I port and the upper HDMI port can output simultaneously only if the DVI-I port is used to connect a D-Sub monitor by adapter.

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

  • The DVI-D port does not support D-Sub connection by adapter.

2 x HDMI ports, supporting a maximum resolution of 4096×2160@24 Hz

  • Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 1024 MB

Audio
Realtek®ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

  • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN
2 x Intel®GbE LAN chips (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
Chipset 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2/x1 SSD support)
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

  • Refer to “1–7 Internal Connectors,” for the supported configurations with the M.2, SATA Express, and SATA connectors.

Multi-Graphics Technology
Support for 2-Way AMD CrossFire™ technology

USB
Chipset 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 4-pin ATX 12V power connector
1 x M.2 Socket 3 connector
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
2 x USB 3.0/2.0 headers
2 x USB 2.0/1.1 headers
2 x serial port headers
1 x parallel port header
1 x Clear CMOS jumper

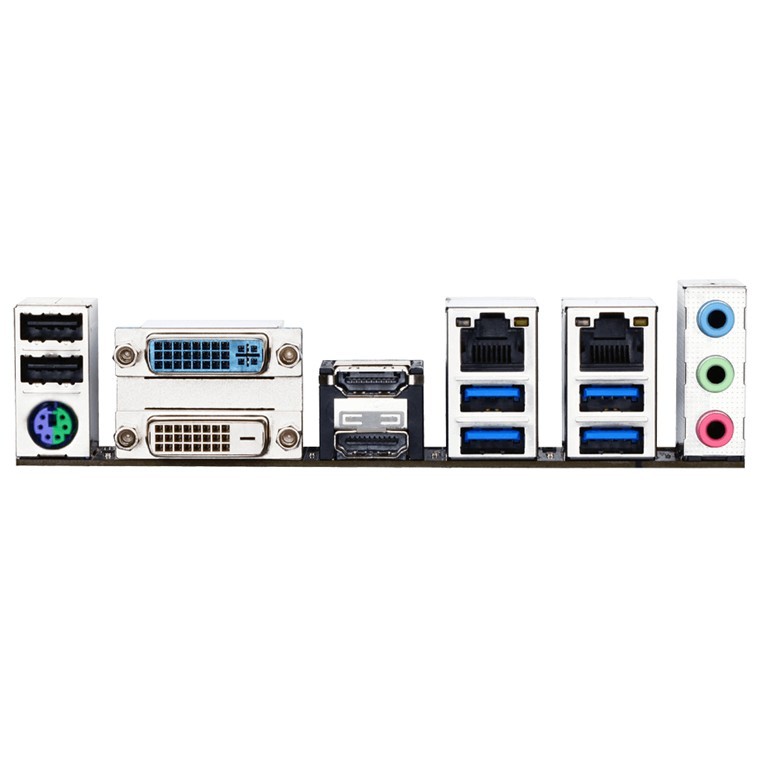

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DVI-I port
2 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE®I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control

  • Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center

  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
AutoGreen
Cloud Station
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

Bundle Software
Norton®Internet Security (OEM version)
Intel®Small Business Advantage
Intel®Smart Response Technology

Operating System
Windows®10 64-bit (for 7th Generation Intel®Processors)
Windows®10 64-bit / Windows®8.1 64-bit / Windows®7 32-bit / 64-bits (for 6th Generation Intel®Processors)

  • Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7.

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

Release date NZ
August 9th, 2017
Manufacturer code:
GA-Q170M-MK
Brand
Manufacturer
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 4-pin
Supported CPU Socket
LGA 1151 (Socket H4)
Supported Memory Module Type(s)
  • DIMM
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Supported Multi-GPU Technology(ies)
  • AMD 3-Way CrossFireX
Number of VGA Ports
1
Number of DVI Ports
1
Integrated Ethernet Networking
Yes
UPC
889523003886
Product ID
26877044
