Description

Features

Supports AMD Ryzen™ & 7th Generation A-series / Athlon™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Fast 2 USB 3.1 Gen 2 with USB Type-A
2-Way CrossFire™ Multi-Graphics Support with Ultra Durable™ Metal Shielding over PCIe Slots
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
ALC1220 120dB SNR HD Audio with Smart Headphone Amp
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
USB DAC-UP 2 & 2 Front USB 3.0 Ports with Adjustable Voltage
RGB FUSION with Multi-Zone LED Light Show design
Swappable Overlay for Accent LED
Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers
GIGABYTE™ UEFI DualBIOS™
APP Center Including EasyTune™ and Cloud Station™ Utilities

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
  • Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE's M.2 so­lution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2× faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Refreshed BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

Supported CPU CPU Socket Type
AM4
CPU Type
Ryzen Series
Chipset
AMD B350
Number of Memory Slots
4×288pin
Memory Standard
DDR4 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
**Expansion Slots **
PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Actual support may vary by CPU.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16
1 x PCI Express x16 slot, running at x4 (PCIEX4)

  • The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
  • Actual support may vary by CPU.

PCI Express x1
3 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

**Storage Devices **
6 x SATA 6Gb/s

M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4*/x2 SSD support)

  • Actual support may vary by CPU.

SATA RAID
Support for RAID 0, RAID 1, and RAID 10

  • Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Onboard Video Chipset
Integrated Graphics Processor
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz

  • The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz

  • Support for HDMI 1.4 version.

Maximum shared memory of 2GB

Audio Chipset
Realtek ALC887

Audio Channels
2/4/5.1/7.1-channel

  • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN LAN Chipset
Realtek GbE LAN

Max LAN Speed
10/100/1000Mbps

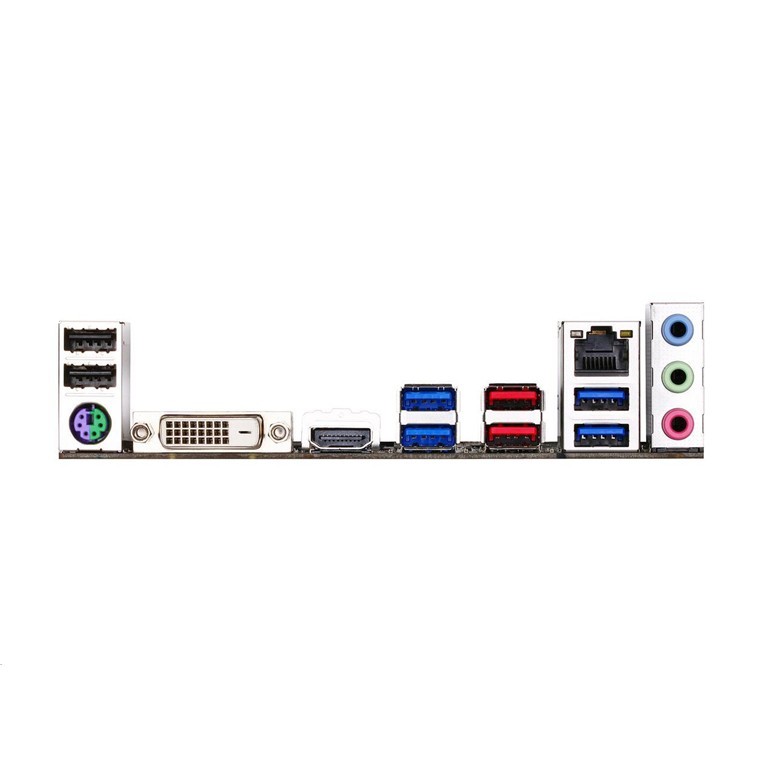

Rear Panel Ports PS/2
1 x PS/2 keyboard/mouse port

Video Ports
1 x DVI-D port

HDMI
1 x HDMI

RJ45
1 x RJ45

USB 3.1
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)

USB 1.1/2.0
2 x USB 2.0

Audio Ports
3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors Onboard USB
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

Other Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Physical Spec Form Factor
ATX

Dimensions (W x L)
12.0" x 8.9"

Power Pin
24 Pin

I/O Controller

  • iTE I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

  • 2 × 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for APP Center
  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS
3D OSD
Ambient LED
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner

  • Support for Q-Flash
  • Support for Xpress Install

Bundle Software

  • Norton Internet Security (OEM version)
  • cFosSpeed

Operating System

  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
  • Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7
Release date NZ
August 9th, 2017
Manufacturer code:
GA-AB350-Gaming
Brand
Manufacturer
Box Dimensions (mm)
340x260x60
UPC
889523009215
Product ID
26876970
