Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mid-tower
size

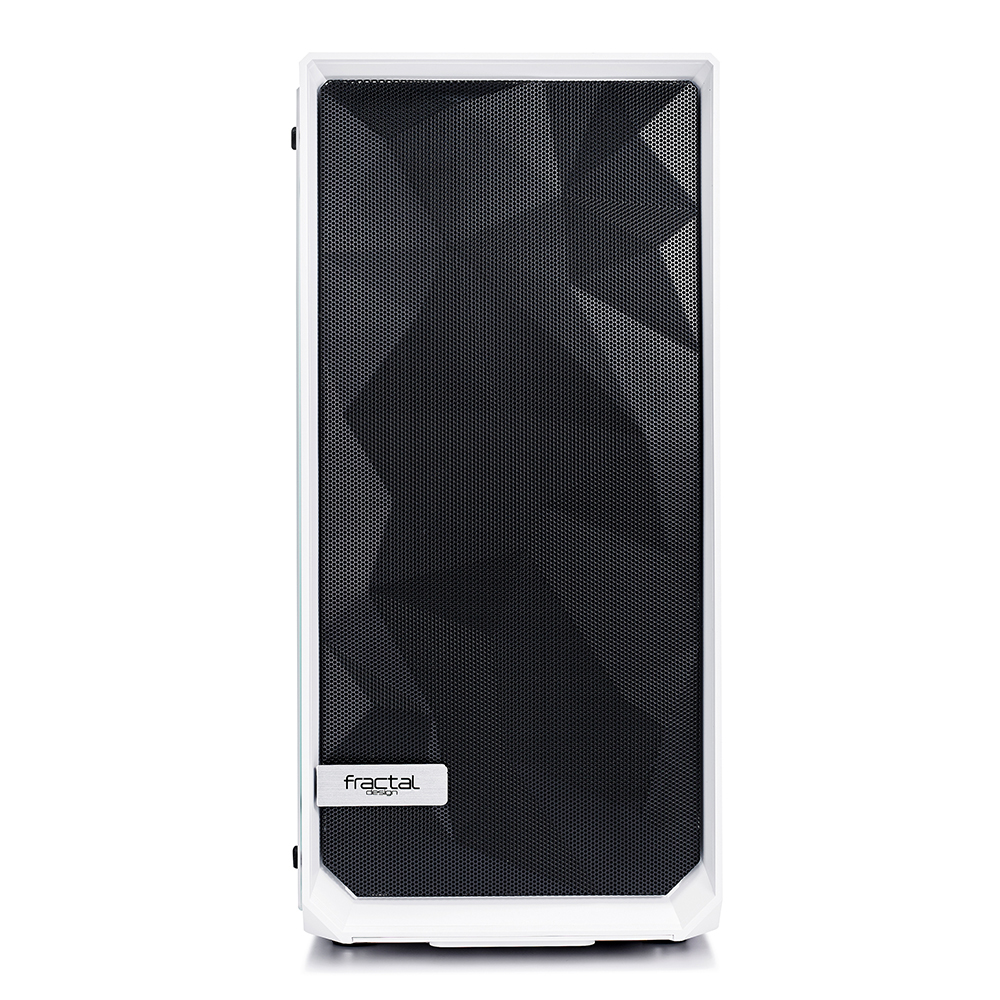

Newly designed angular mesh front panel maximizes air intake
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard
drives for smooth, quiet and reliable operation
Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum
airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to
rear exhaust
Easy-to-clean filters on the front, top, and base with full PSU coverage and
convenient front access
Full-length power supply shroud conceals drive cage and excess cabling for
unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for
clean cable routing
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Specification
3.5" or 2.5" Drive capacity
2
Dedicated 2.5" drive capacity
3
Expansion slots
7
Motherboard compatibility
ATX, mATX, ITX
Power supply type
ATX
Total fan mounts
7
Front fan
3× 120 or 2× 140 1× Dynamic X2 GP-12 included
Top fan
2× 120/140
Rear fan
1× 120 1× Dynamic X2 GP-12 included
Bottom fan
1× 120
Side fan
No
Dust filters
Bottom fan + PSU Front fans Top fans
Front radiator
120/240/360mm 140/280mm
Top radiator
120/240mm (max component height on motherboard 40mm)
Rear radiator
120mm (max width 125mm)
Power supply depth limit
Maximum 175mm recommended
Graphics card length limit
Max 315mm with front fan mounted
CPU cooler height limit
172mm
Cable routing
15–35mm space
Cable routing grommets
Yes
Fixed Hook & Loop straps
Yes
Captive thumbscrews
Right side panel SSD brackets
Left side panel
Tempered Glass
Case dimensions (LxWxH)
395 × 212 × 440mm
Case dimensions – with feet/protrusions/screws
409 × 217 × 453mm
Net weight
6.5 kg
Package dimensions (LxWxH)
543 × 295 × 484mm
Package weight
7.9 kg
