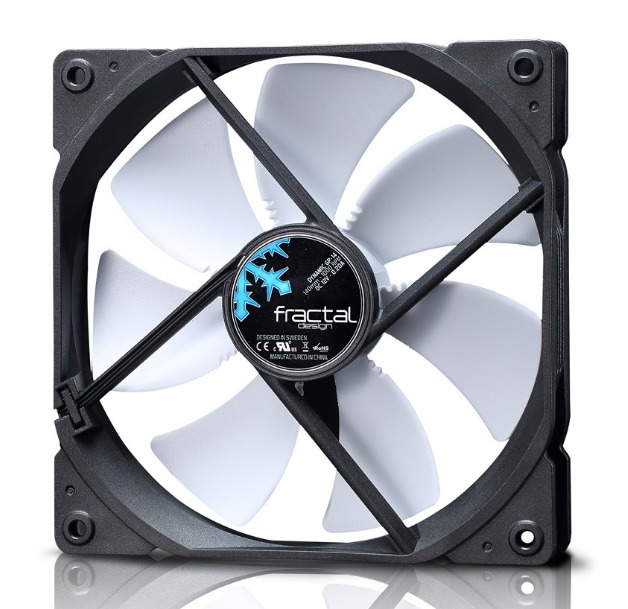

Fractal Design: Dynamic Series GP-14 Case Fan - 140mm

White

Customer rating

Click to share your rating 2 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

$30.00
Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships Monday!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Monday 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm on 22 July to qualifying addresses in Auckland. Learn more
  • Tuesday using standard courier delivery

Description

Fractal Design Dynamic GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet.

Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio.

The Dynamic Series fans come in two color combinations: all-black and the classic Fractal Design signature color scheme with white blades and black frame.

Features:

  • Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing and a true FDB bearing

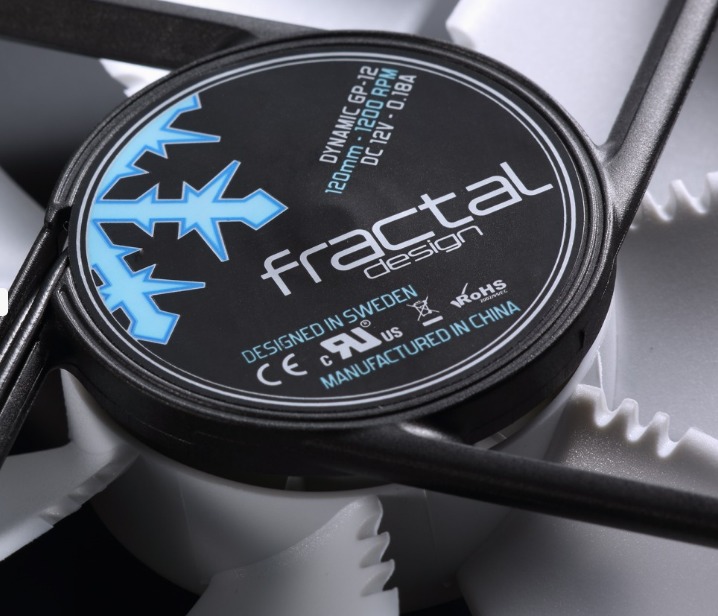

  • Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing
  • Optimised fan geometry for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
  • Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence.
  • Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear.
  • Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts
  • Includes a “trip wire” on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient and quiet fan environment.
  • The customized design of the Dynamic Series fans contributes to a beautiful, cool build

Specifications:

  • Fan: GP-14
  • Size [mm]:140 × 14­0 × 25mm
  • Screw hole pattern: 125*125mm
  • Connector: 3-pin fan header
  • Bearing: Hydraulic
  • Number of blades: 7
  • Rotational speed [RPM]: 1000
  • Acoustical noise [dB (A)]: 18.9
  • Maximum air flow [CFM]: 68.4
  • Maximum pressure [mm H2O]: 0.71
  • Actual input power [W]: 1.7
  • Maximum rated input current [A]: 0.20
  • Nominal input voltage [V]: 12
  • Minimum startup voltage [V]: 4
  • MTBF [hours]: 40,000
  • Cable type: Black ribbon cable
Release date NZ
November 30th, 2016
Manufacturer code:
CFAN-FDDSGP-14
Manufacturer
Box Dimensions (mm)
145x200x26
UPC
817301013321
Product ID
26164742
