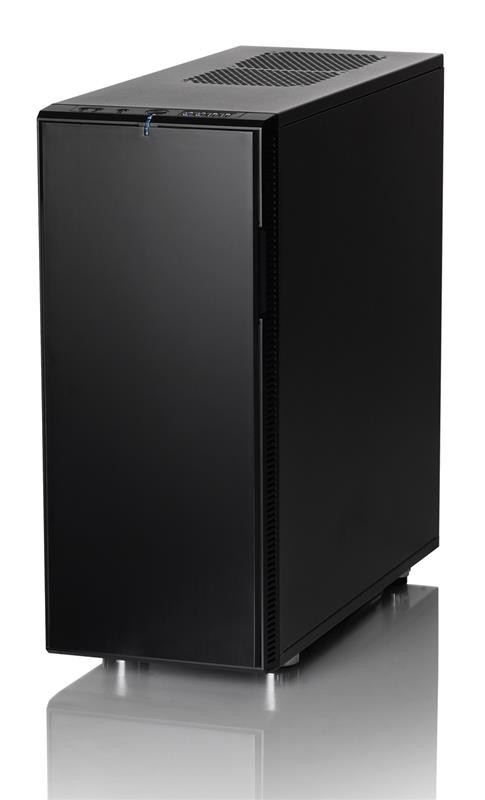

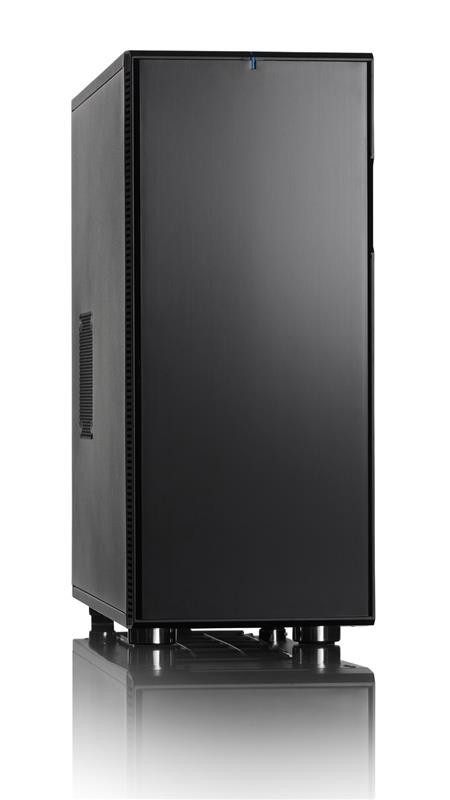

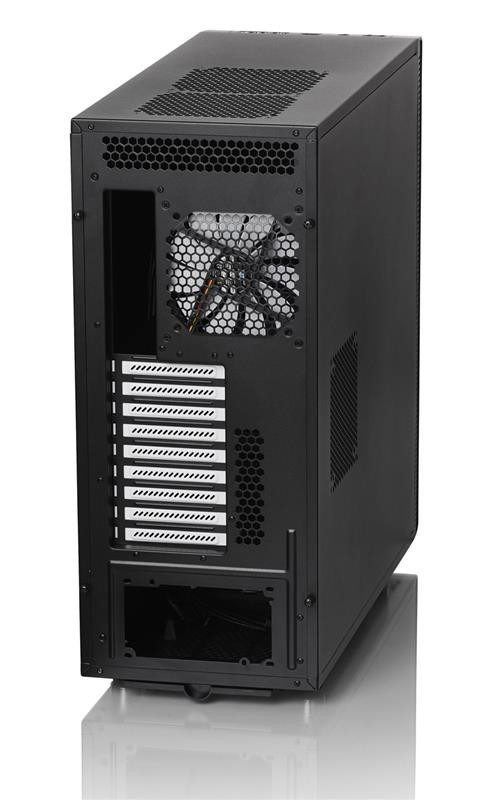

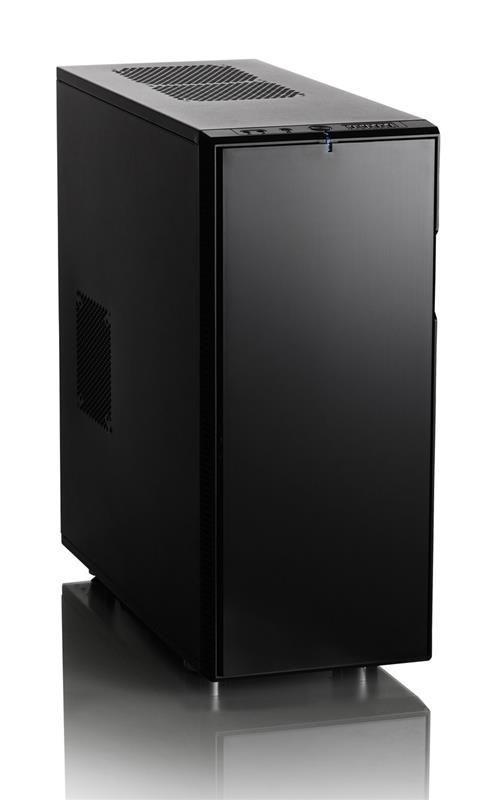

Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2

This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

The Define XL R2, which includes Fractal Design’s innovative ModuVent™ feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.

PSU not included.

Features:

• High density noise-reducing material for an optimal silent case
• Patented ModuVent™ design allowing the user to choose between optimal silence or maximum airflow.
• With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
• Both HDD cages can be removed or repositioned – Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
• The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
• Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
• New tool-less front fan holder makes switching front fans a breeze

Specifications:

• Colour: Black Pearl
• ATX, Micro ATX, Mini ATX, E-ATX and XL-ATX motherboard compatibility
• 4 – 5.25" bays
• 8 – 3.5" HDD trays – all compatible with SSDs
• A total of 9 expansion slots
• 3 – ModuVent™ plates – two in the top and one in the side
• 7 – Fan positions (3 fans included)
• Filtered fan slots in front and bottom
• CPU coolers up to 170 mm tall (when no fan is installed in the side panel)
• PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be used
• Graphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed – With the top cage removed, graphics cards up to 480mm in length may be installed
• 26 mm of space for cable routing behind the motherboard plate
• Thick rubber grommets on all holes on the motherboard plate
• Case dimensions (WxHxD): 232×559×560mm
• Net weight: 16.4kg
