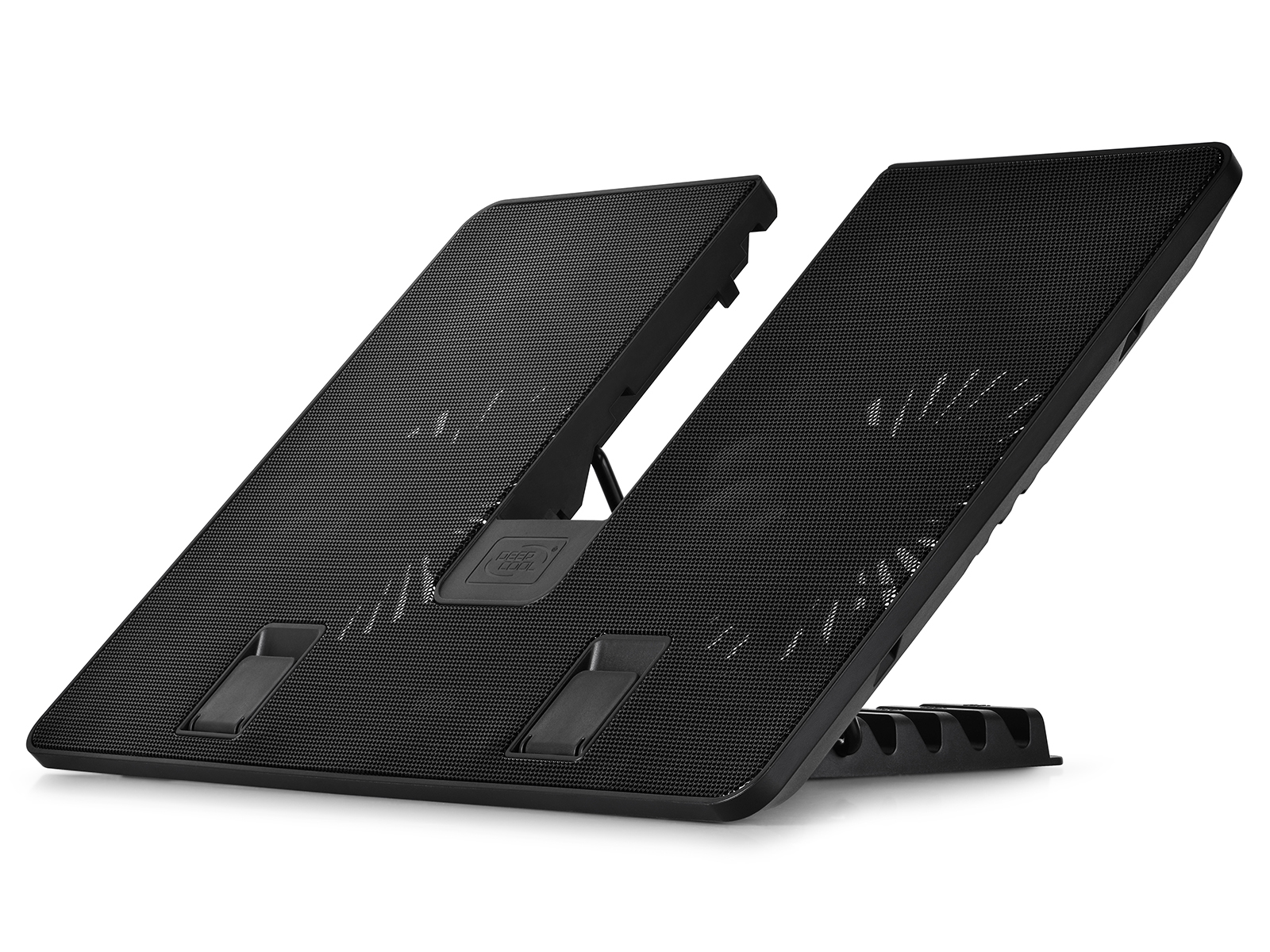

The New Arch of Triumph
The U-shaped notebook cooler is inspired by the Arch of Constantine of Rome.
U PAL is a single product that combines the impressive features of classical
architecture and key elements required for the best cooling performance.

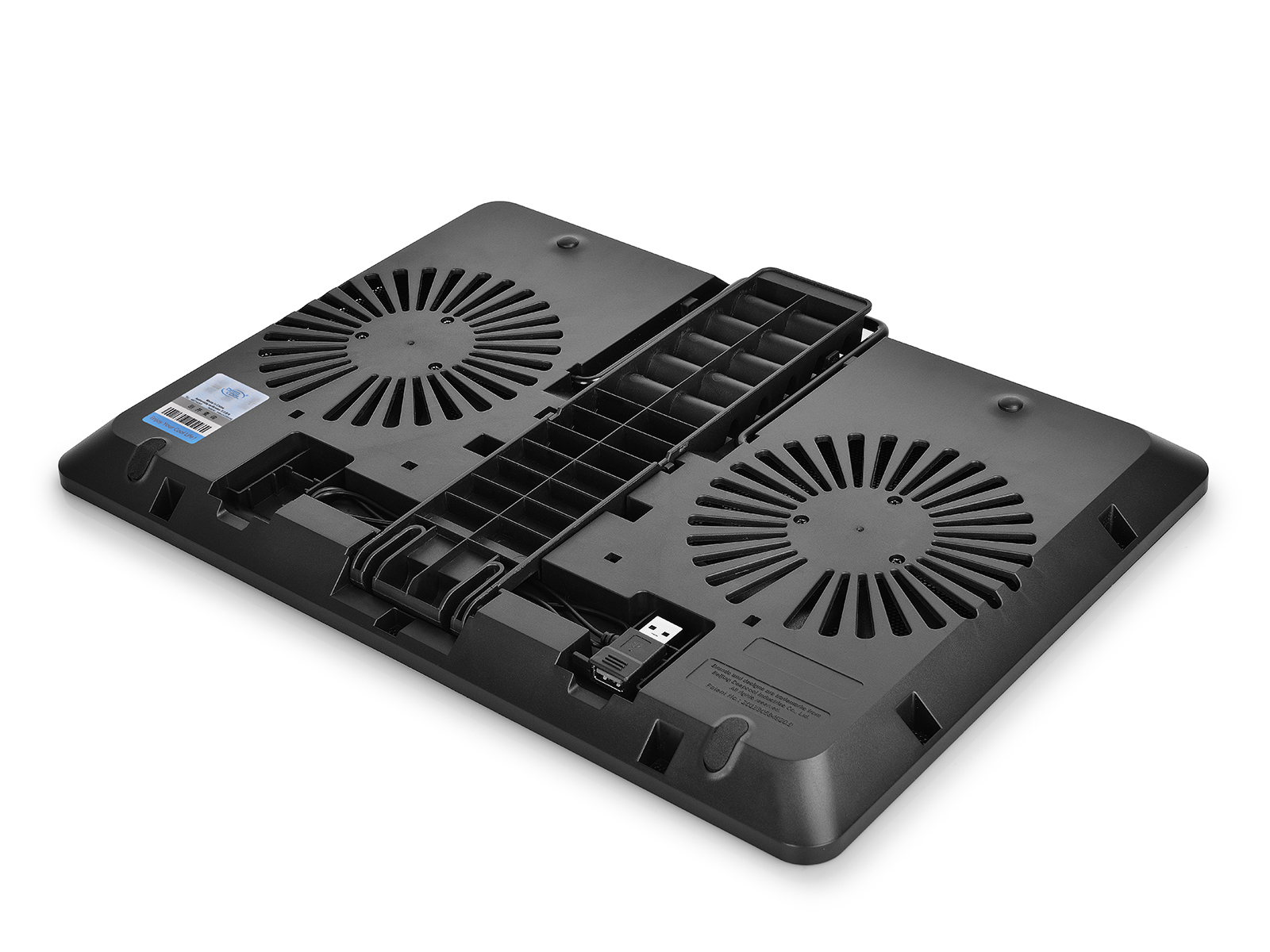

U Channel Cooling
Studies found that notebook hotspots are often located at the two sides.
U Channel Cooling thus deployed two 140 mm fans at the two sides to provide
cooling coverage to the hot zones. The empty region between the two fans will
help accelerate the dispersion of hot air.

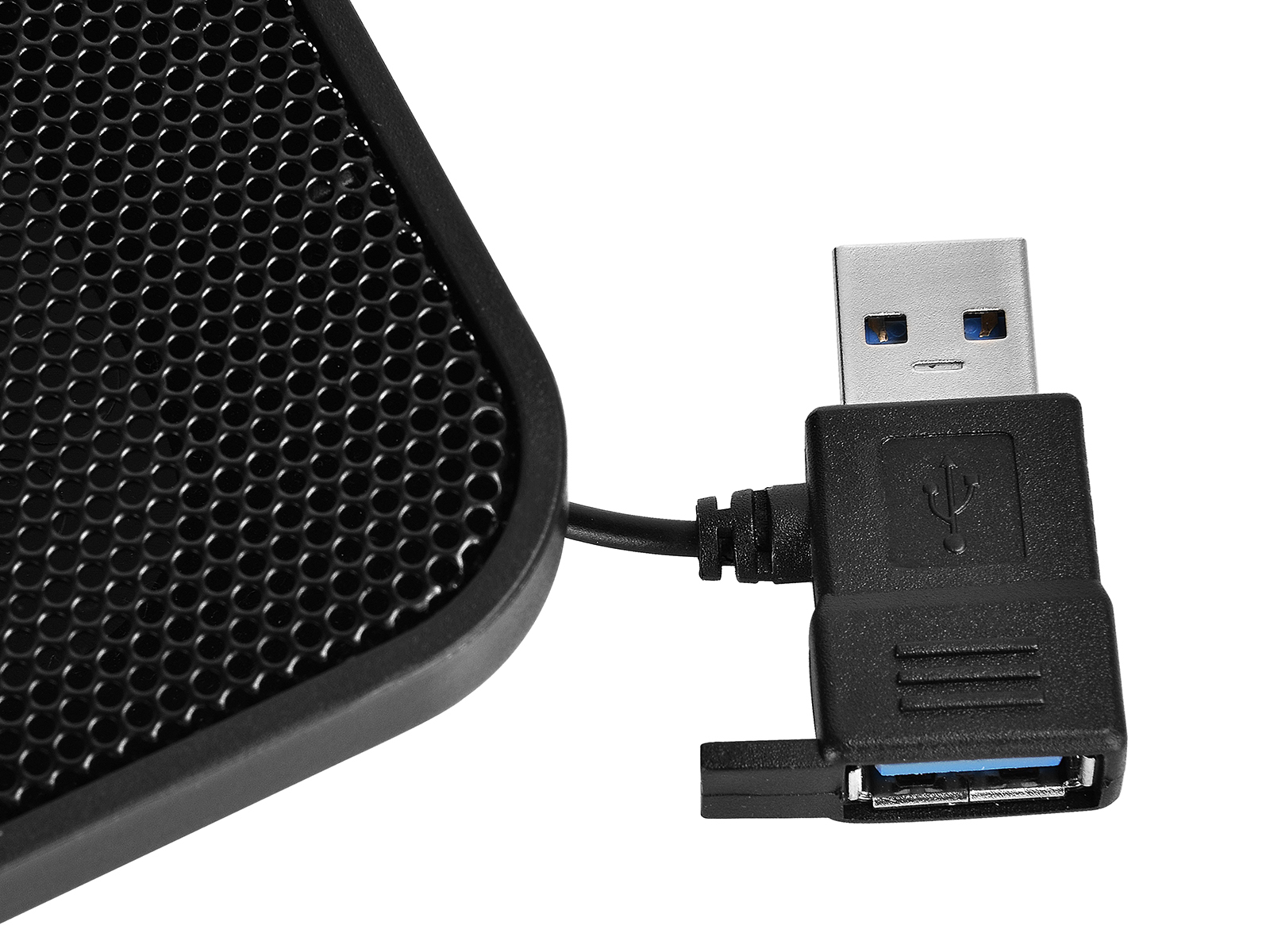

Superfast USB 3.0 Passthrough
Superfast USB 3.0 USB passthrough power connector allows the fastest data
transfer speeds.

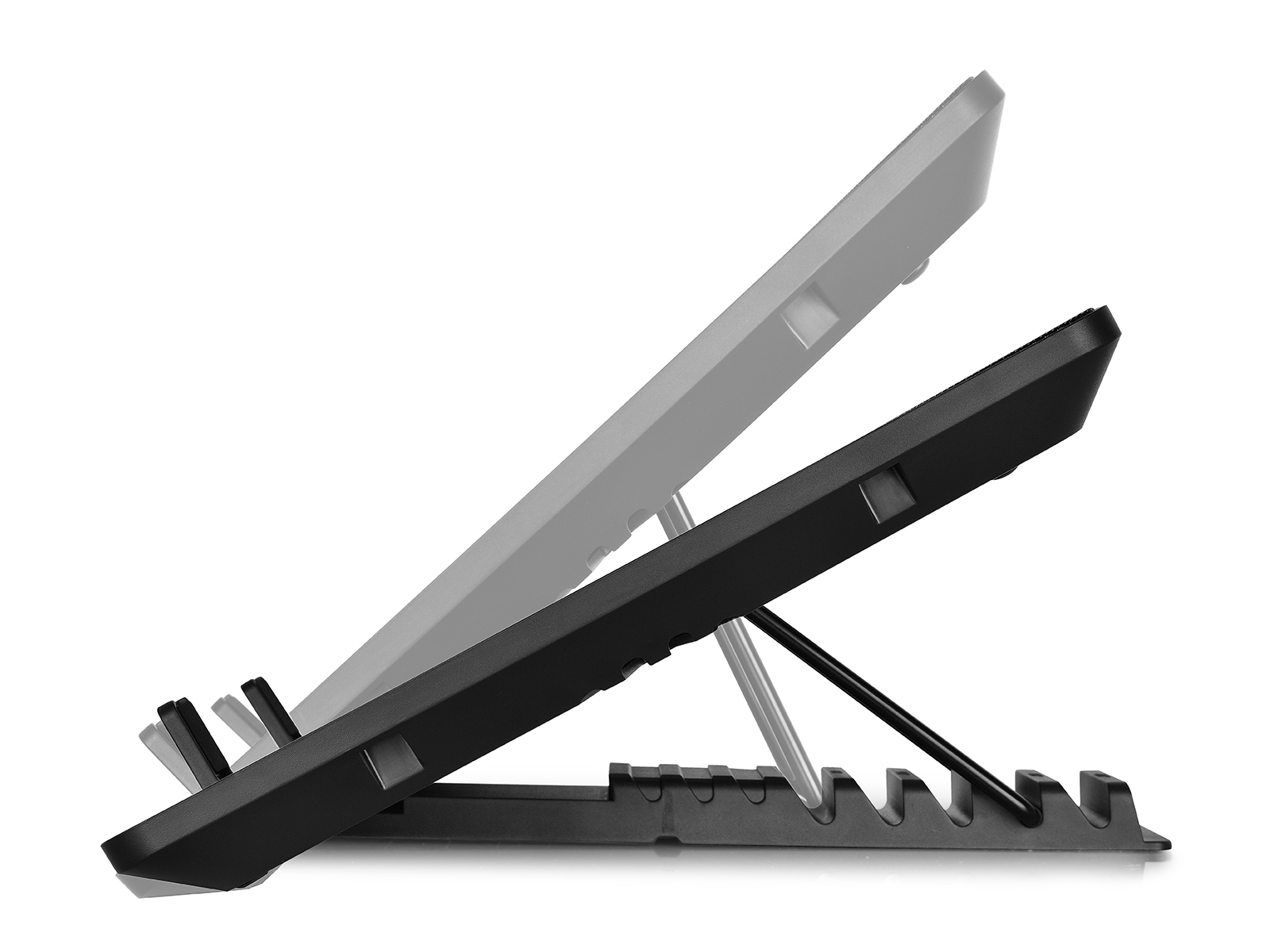

Adjustable Angle for User Comfort
U PAL offers 6 different supporting angles that allow you to adopt any
postures for relaxation, entertainment, work, whether you are seated or lying
down, alleviating the strain of natural spinal curvature for enhanced
comfort.
Silent Operation
2 built-in 140 mm fans run at the speed of 1,000 RPM to keep the notebook
cool. The fans also run at very low noise levels to eliminate any source of
noise disturbance during work or study.

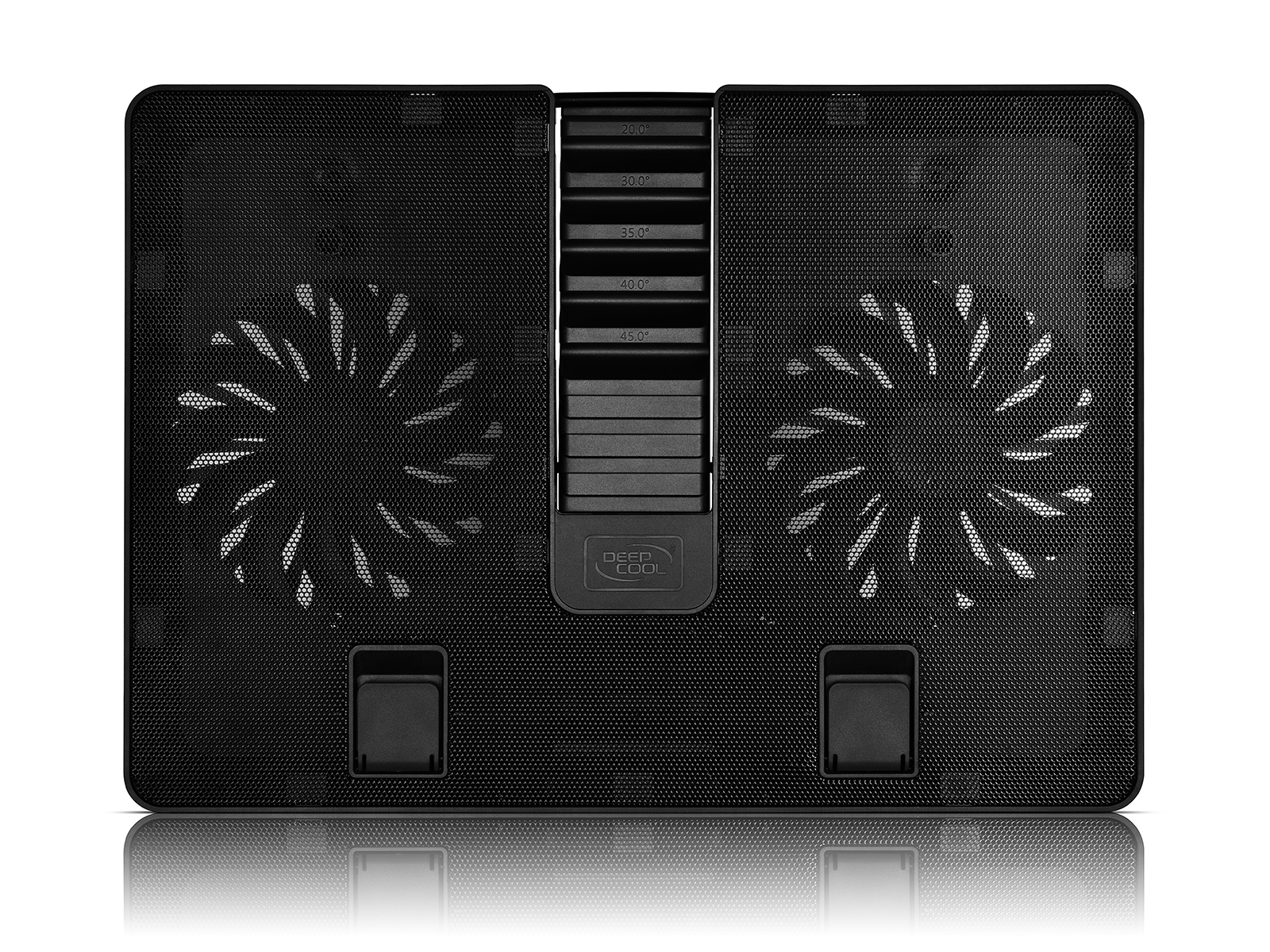

Metal Mesh Design
Honeycomb metal mesh design allows rapid passage of air currents to achieve the
best cooling performance.
Anti-Slip Design
Slip elimination features include anti-slip buckles and rubber feet, ensuring
the safety of your notebook during use for any special angle that offers the
highest degree of user comfort.

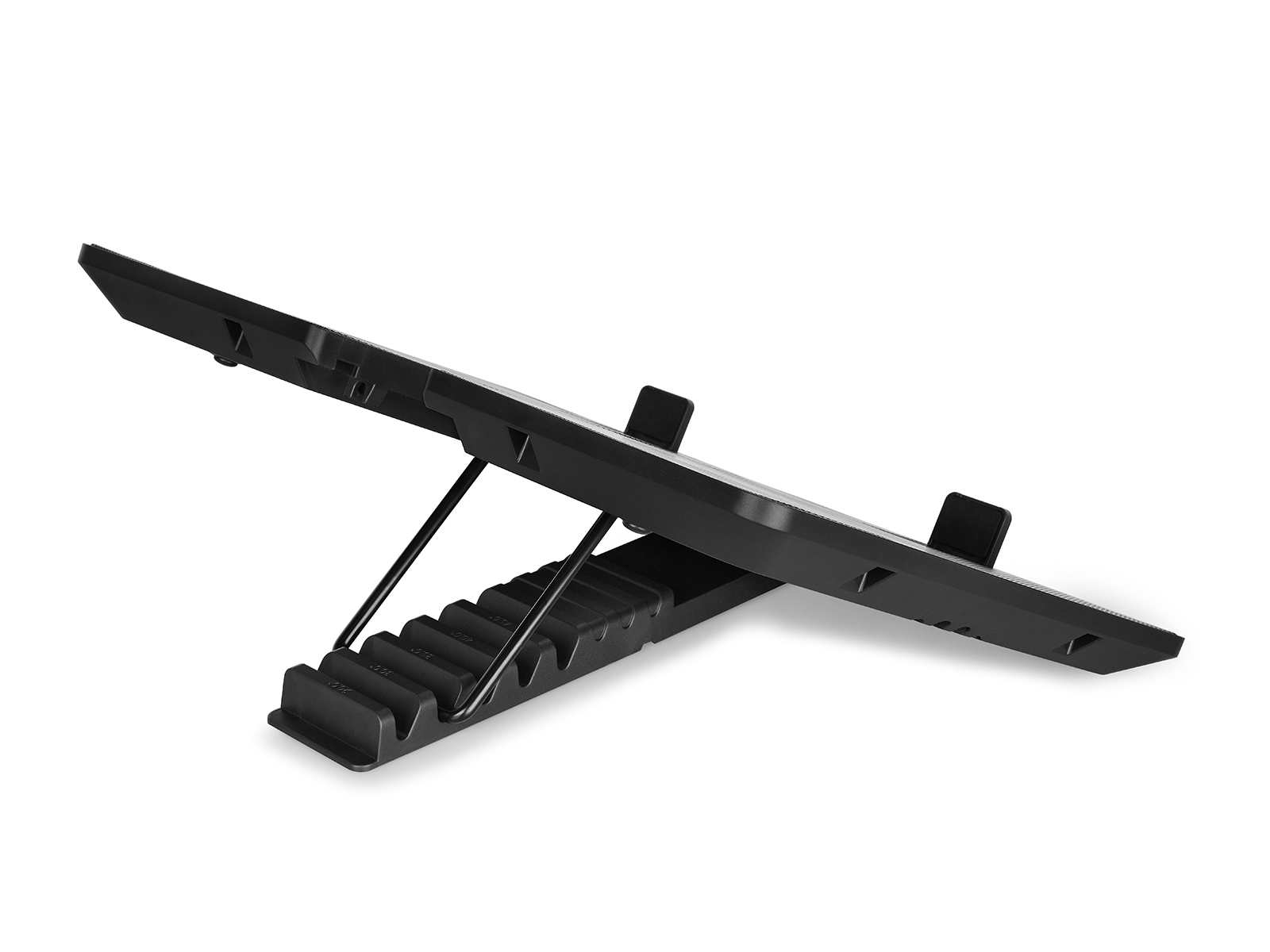

Steady Supporting Feet
Steel supporting feet keep your notebook stable all the time.
Reliable Quality
Deepcool is a leading manufacturer of cooler solutions, and has gained a solid
reputation in product quality and services in over 60 countries.
Features
- Ultrafast USB 3.0 passthrough connector for rapid data transfer speeds;
- Unique U-shaped design provides smooth cooling airflow to hotspots on your notebook;
- Adjustable angle to protect your spine and physical health;
- Two 140 mm fans that provide air current coverage equivalent to eight 70 mm fans.
Application For
Compatible with 15.6" notebooks and below.
Technical Specs
- Overall Dimension 390X280X27.5mm
- Fan Dimension 140X140X15mm
- Net Weight 765g
- Bearing Type Hydro Bearing
- Rated Voltage 5VDC
- Operating Voltage 4.5～5VDC
- Started Voltage 4VDC
- Rated Current 0.30±10%A
- Power Input 1.5W
- Fan Speed 1000±10%RPM
- Max. Air Flow 92.22CFM
- Noise 26.3dB(A)
