Maximise Extraordinariness

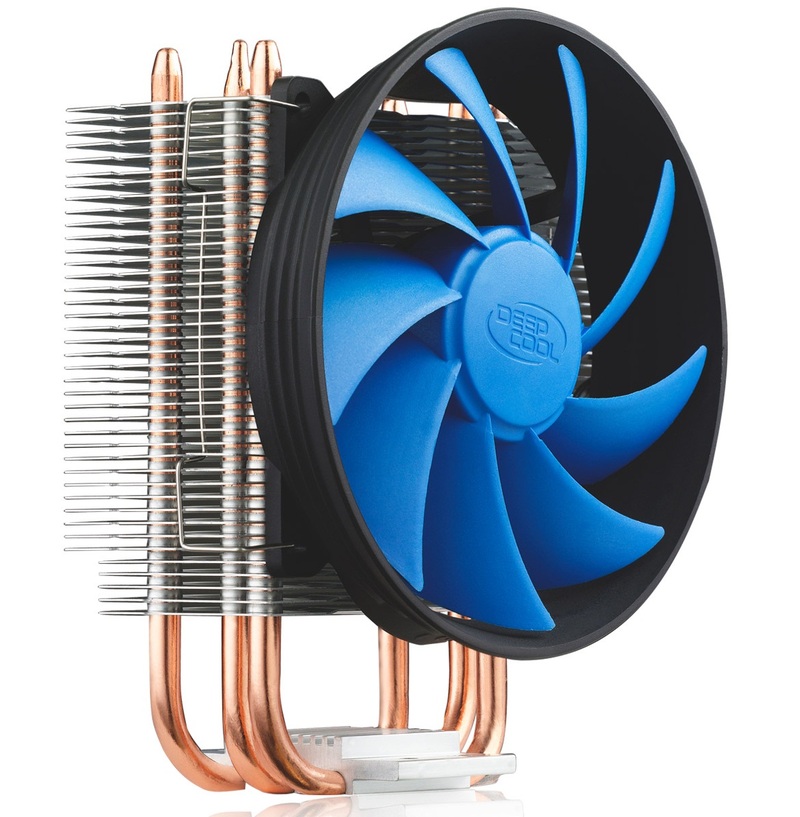

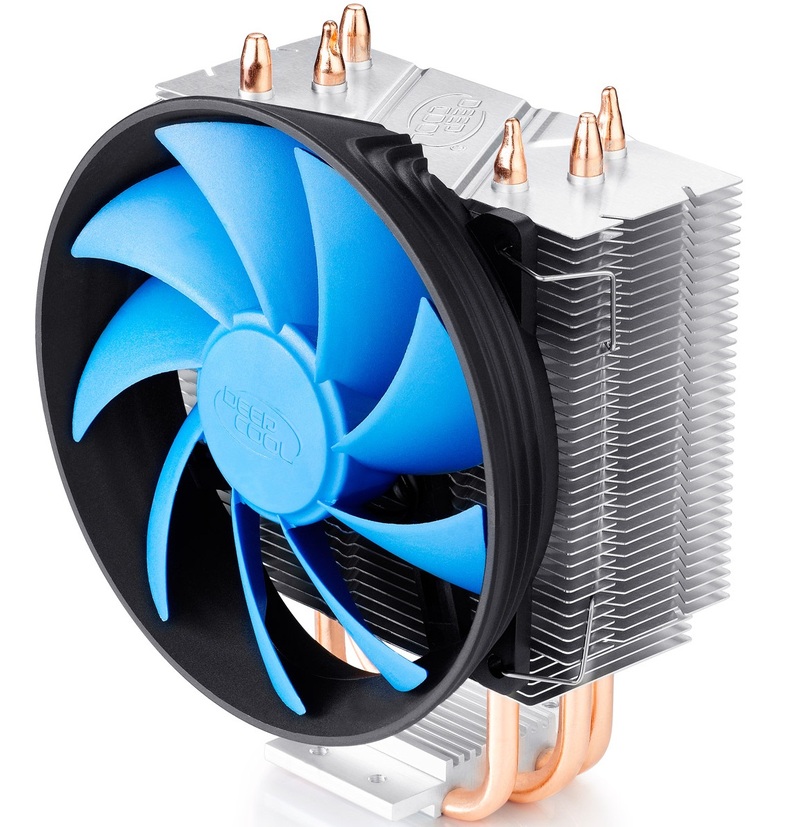

GAMMAXX 300 comes with a turbine fan and can be further mounted with a second fan. This is one of the most highly recommended mainstream CPU thermal solution. GAMMAXX 300 comes with the Core Touch Technology (CTT), enabling rapid heat dissipation, and making it the ideal multipurpose option for gamers and general users.


FEATURES

• Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/A­M3+/AM3/AM2+/AM2/K8.
• Excellent cooling performance up to 130 W.

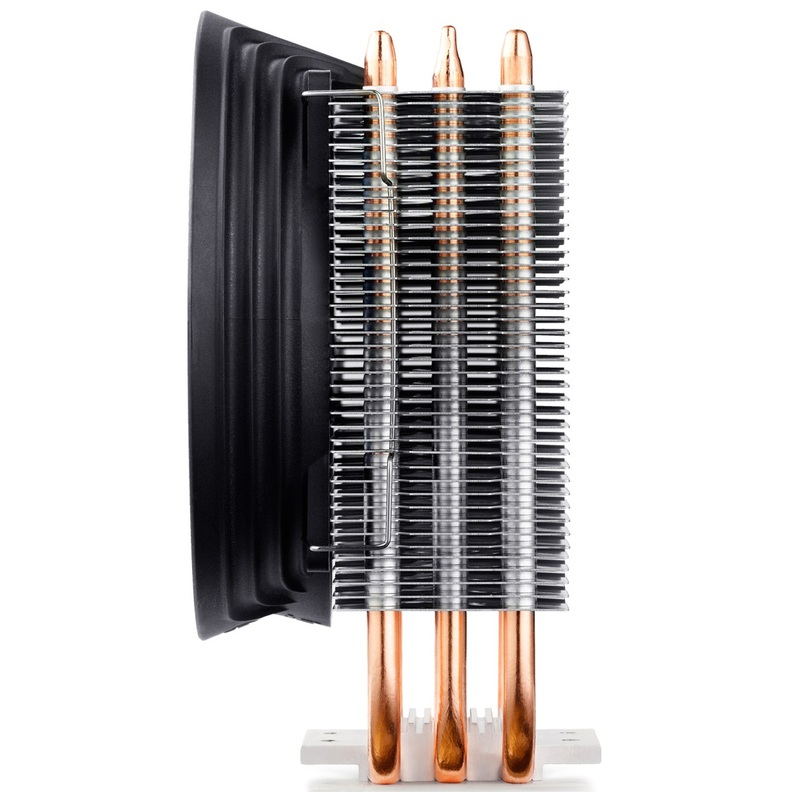

• Effective Cooling Performance: 3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.
• Ф120 × 25 mm PWM-capable Fan: Ф120 × 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.
• Universal Socket Compatibility: Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/A­M3+/AM3/AM2+/AM2/K8.
• Easy Installation: Can be easily installed without moving the motherboard.

• Application For:
  • LGA1366/LGA12­00/1151/1150/1155/LGA775:
    • High End Desktop i9/i7
    • Core i7 Extreme/i7/i5/i3
    • Core 2 Extreme/Quad/Duo
    • Pentium/Pentium G
    • Celeron/Celeron G
  • AM4/AM3+/AM3/­AM2+/AM2/FM2+/FM2/FM1:
  • (NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/­AM3+/AM3/AM2+/AM2)
    • Ryzen
    • APU A12/A10/A8/A6/A4
    • FX 8/6/4-Core
    • Phenom II X6/X4/X3/X2
    • Athlon II X4/X3/X2
    • Athlon X4

SPECIFICATIONS

• Product Dimensions: 121X75.5X135.7 mm
• Heatsink Dimensions: 110X57.2X130.56 mm
• Net Weight: 433 g
• Heatpipe: Ø6 mm×3 pcs
• Fan Dimensions: Φ120X25 mm
• Fan Speed: 900~1600 RPM±10%
• Fan Airflow: 55.5 CFM
• Fan Air Pressure: 2.03 mmAq
• Fan Noise: ≤21 dB(A)
• Fan Connector: 4-pin PWM
• Bearing Type: Hydro Bearing
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.11 A
• Fan Power Consumption: 1.32 W
• EAN: 6933412708124
• P/N: DP-MCH3-GMX300
