10/100Mbps Adapter with Advanced Functions

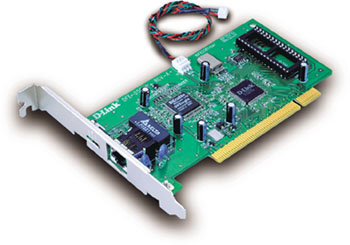

The DFE-550TX is a high-performance auto-sensing 10/100Mbps network adapter for desktop PCs. The adapter is equipped with advanced features and is an excellent choice for powerful PCs directly connect to a LAN switch in a dedicated bandwidth workstation or high-speed server configuration.

Features:

10/100Mbps auto-sensing with single shielded RJ-45 connector

32-bit PCI Bus Master operation

Full/half duplex for 10BASE-T, 100BASE-TX

Wake-on-LAN (WOL) function

IEEE 802.3x flow control for connection to LAN switch

16 on-board counters for statistic report (DMI driver provided)

IP multicast address filter mechanism

Low network command processing overhead

Run Win95, 98, NT, NetWare, OS/2, Unix, other O.S.

Optional boot ROM for remote program load from servers
