The Most Colorful Way To Cool – MASTERLIQUID
ML120R RGB
Dual Chamberlow-profile Dual Chamber
The PPS (Polyphenylene sulfide) and glass fiber construction resists a broad
range of chemicals and is unaffected by moisture or immersion in water. Our pump
is light and impervious to oxidation and corrosion.
Stylish Radiator
Custom design low resistance radiator allows higher flow rate, heat exchange
efficiency and provides unmatched cooling performance
Double Tubing
FEP tubing makes it durable yet flexible. Sleeved tubing on the exterior to
give it a premium look.
MF120R ARGB Fans
MasterFan MF120R ARGB provides a specific air cooling solution ideal to
maximize air pressure for AIO liquid cooling. Designed for Builders with
Addressable RGB-enabled PCs, you can personalize the color of your fans to match
your PC perfectly.

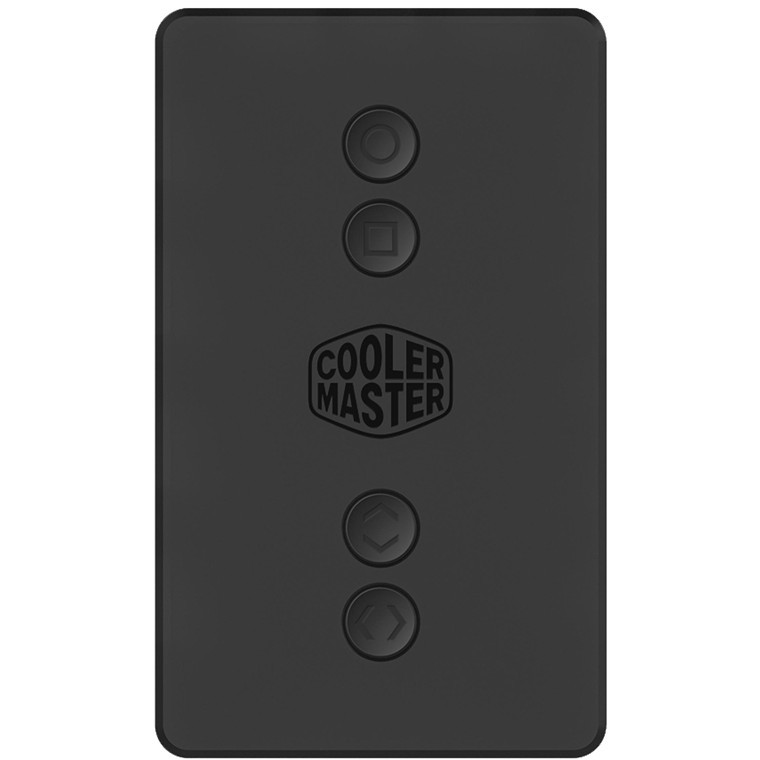

Wired Addressable RGB Controller
A compact size Addressable RGB LED controller that allows you to easily
customize your RGB devices without the need for either an RGB capable
motherboard or software.
Specifications:
Basic Information
- Product Name - MasterLiquid ML120R RGB
- Model - MLX-D12M-A20PC-R1
- CPU Socket Compatibility - Intel® LGA 2066 / 2011-v3 /
2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 socket/AMD® AM4 / AM3+ / AM3 /
AM2+ / AM2 / FM2+ / FM2 / FM1 socket
Radiator
- Material - Aluminum
- Dimensions - 157 × 119.6 × 27mm
(6.2 × 4.7 × 1.1")
Fan
- Dimensions - 120 × 120 × 25 mm
(4.7 × 4.7 × 1")
- Quantity - 2 PCS
- Speed - 650 ~ 2000 RPM (PWM) ± 10%
- Air Flow - 66.7 CFM (Max)
- Air Pressure - 2.34 mm H2O (Max)
- MTTF - 160,000 hours
- Noise Level - 6 ~ 30 dBA
- Connector - 4-Pin (PWM)
- Rated Voltage - 12 VDC
Pump
- Dimensions - 83.6 × 71.8 × 52.7 mm
(3.3 × 2.8 × 2.1")
- MTTF - 70,000 hours
- Noise Leve - l< 15 dBA
- Connector - 3-Pin
- Rated Voltage1 -2 VDC
