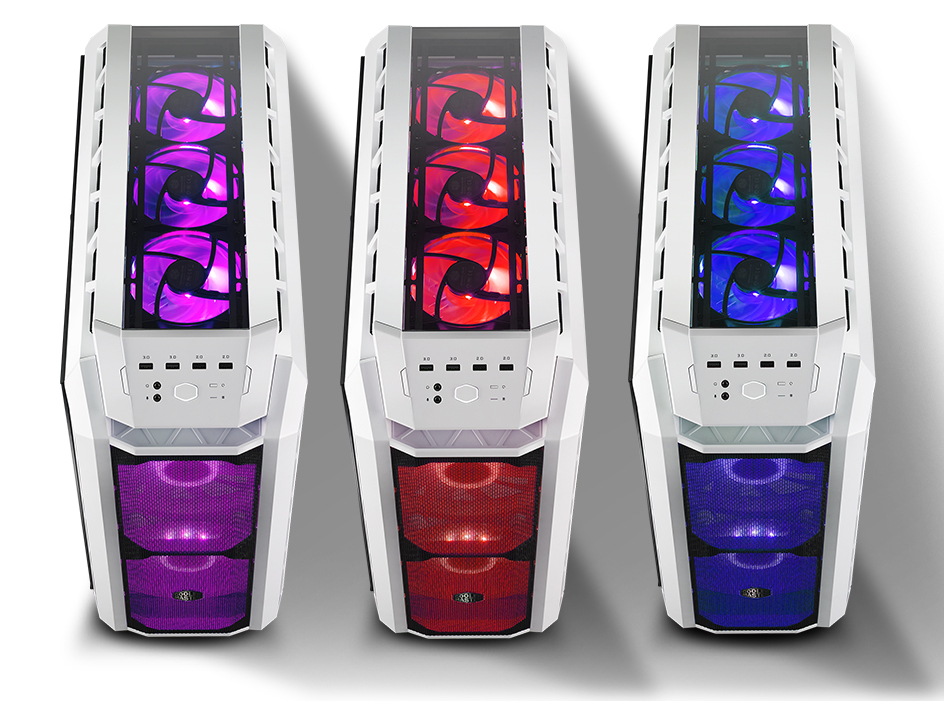

RGB LIGHTING
Use the RGB lighting to create a captivating build in your preferred color theme.

SHOW OFF YOUR GRAPHICS CARD

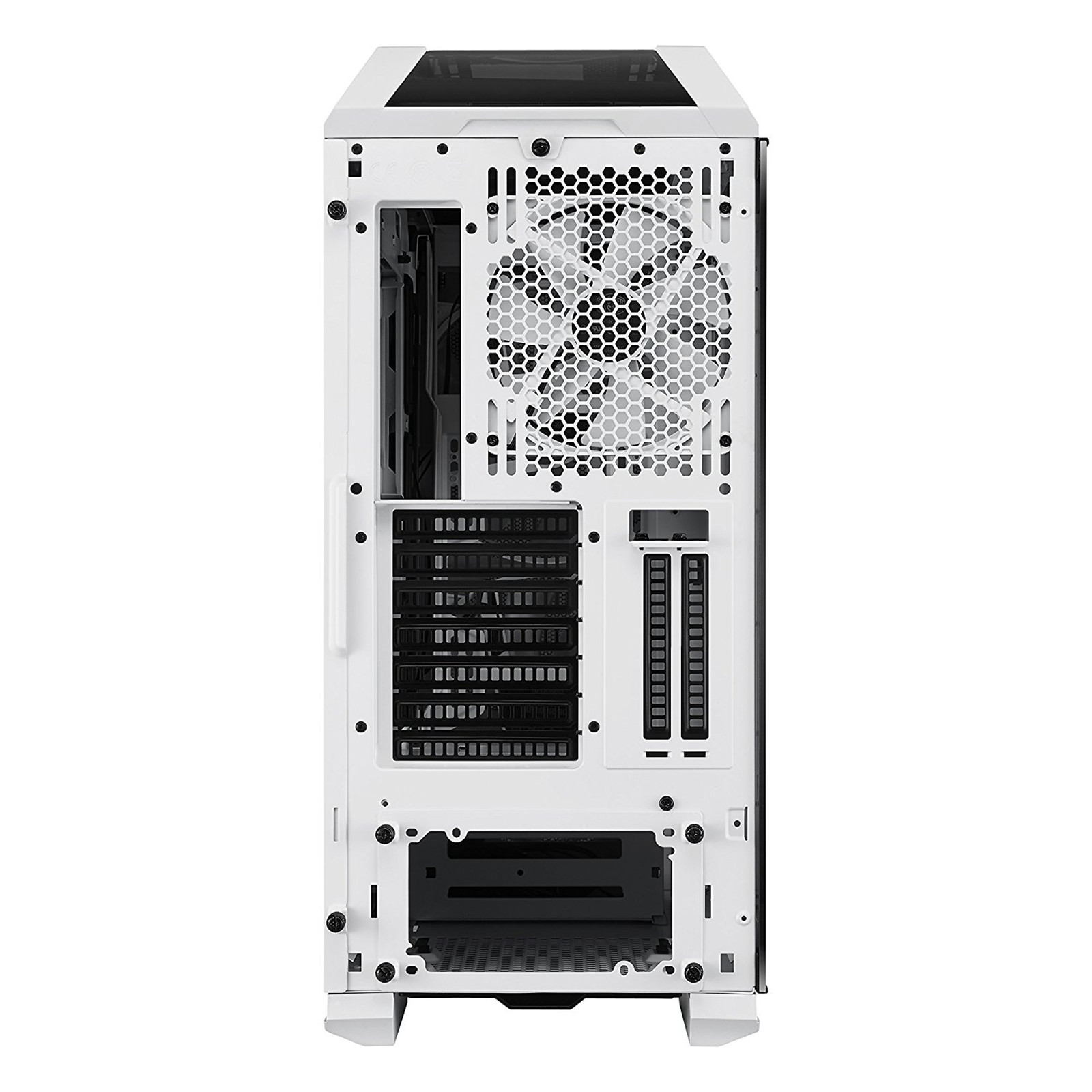

Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position.

CLEAR VIEW INSIDE

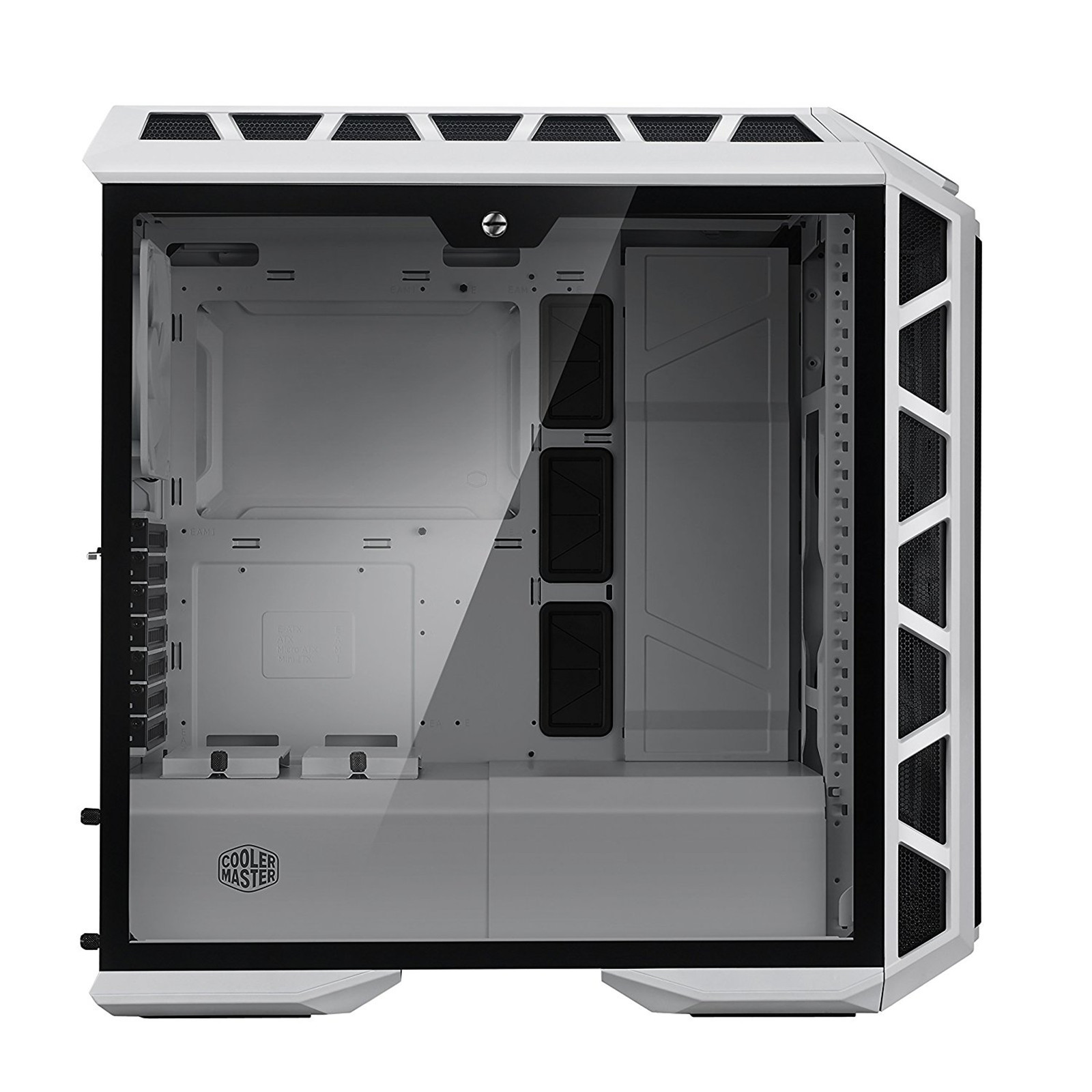

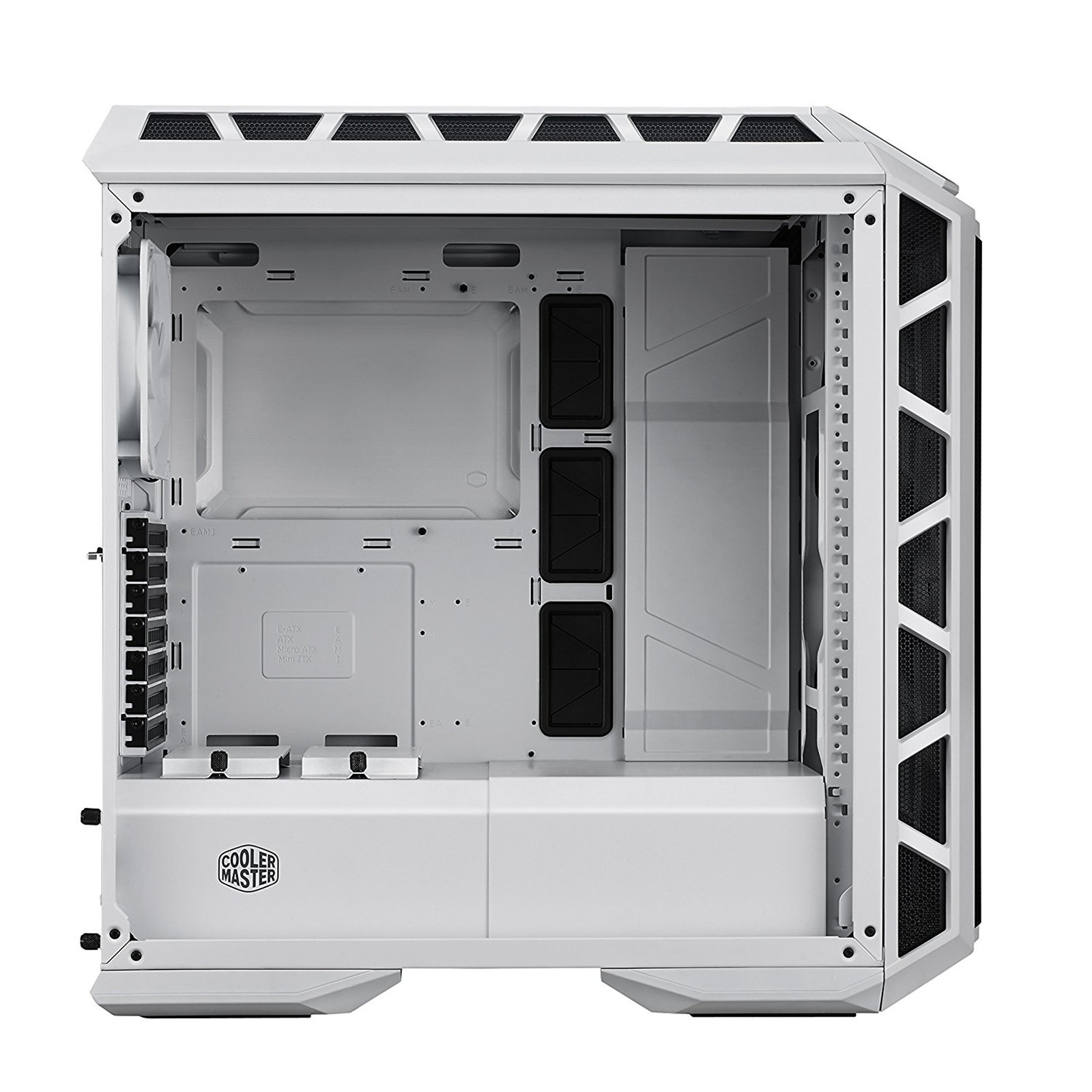

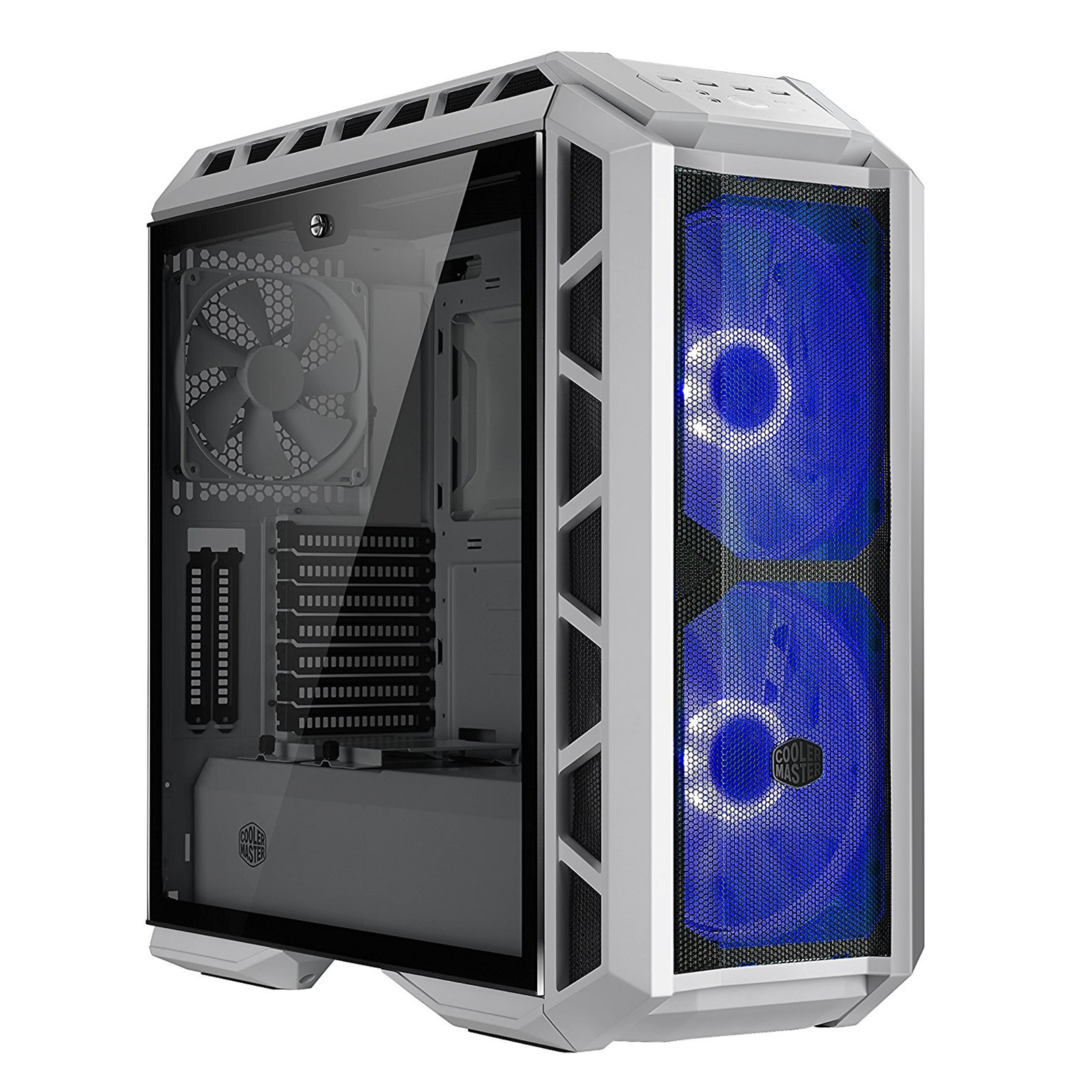

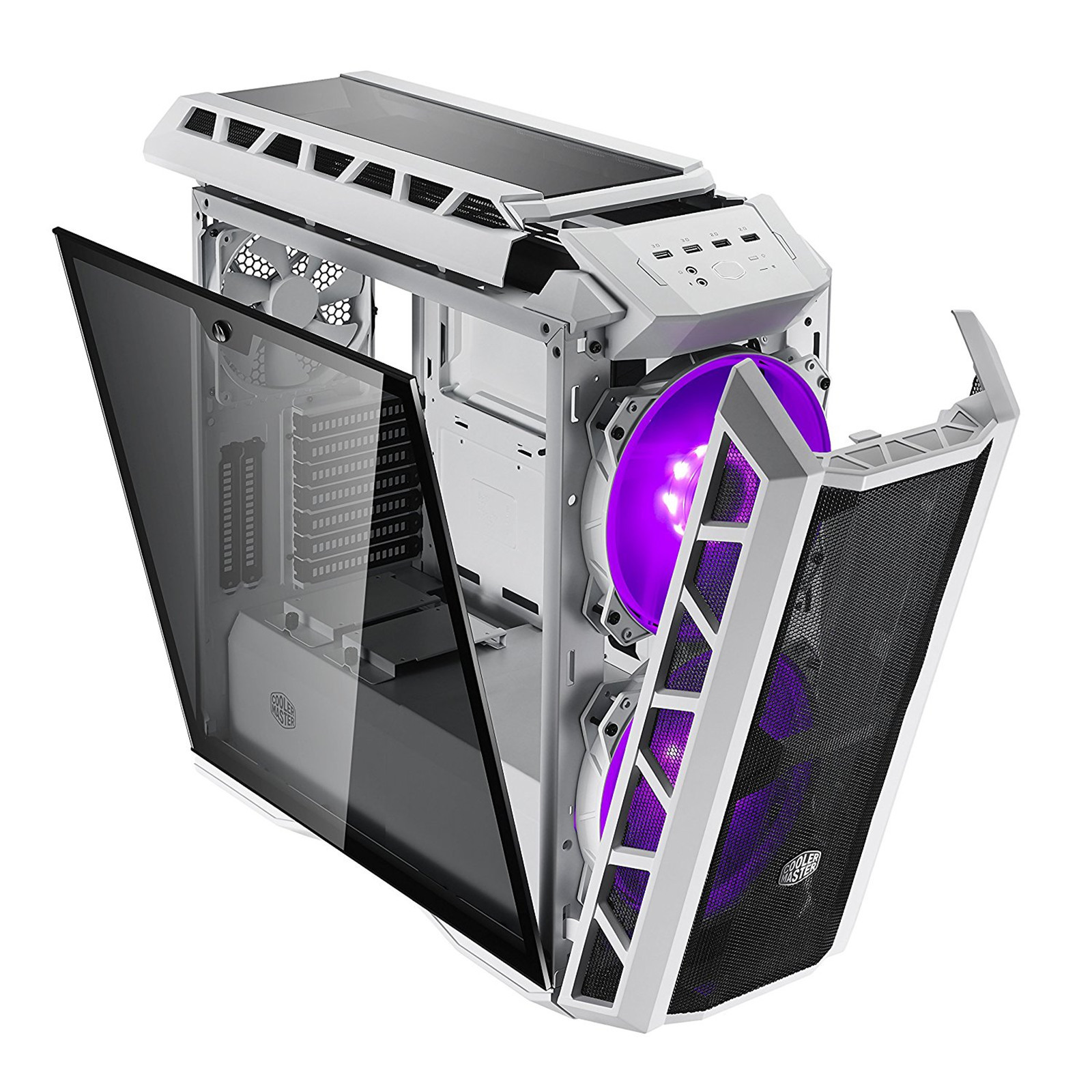

The MasterCase H500P has a light grey tinted tempered glass side panel and plastic top/front covers,making it ideal for showcasing your build with (RGB) lighting.

LIQUID COOLING READY
The MasterCase H500P accommodates up to 360mm radiators on the top and front.

COVERS FOR CLEAN BUILDING
Cooler Master was the first to make a CPU cut out hole and we are the first to cover it again.

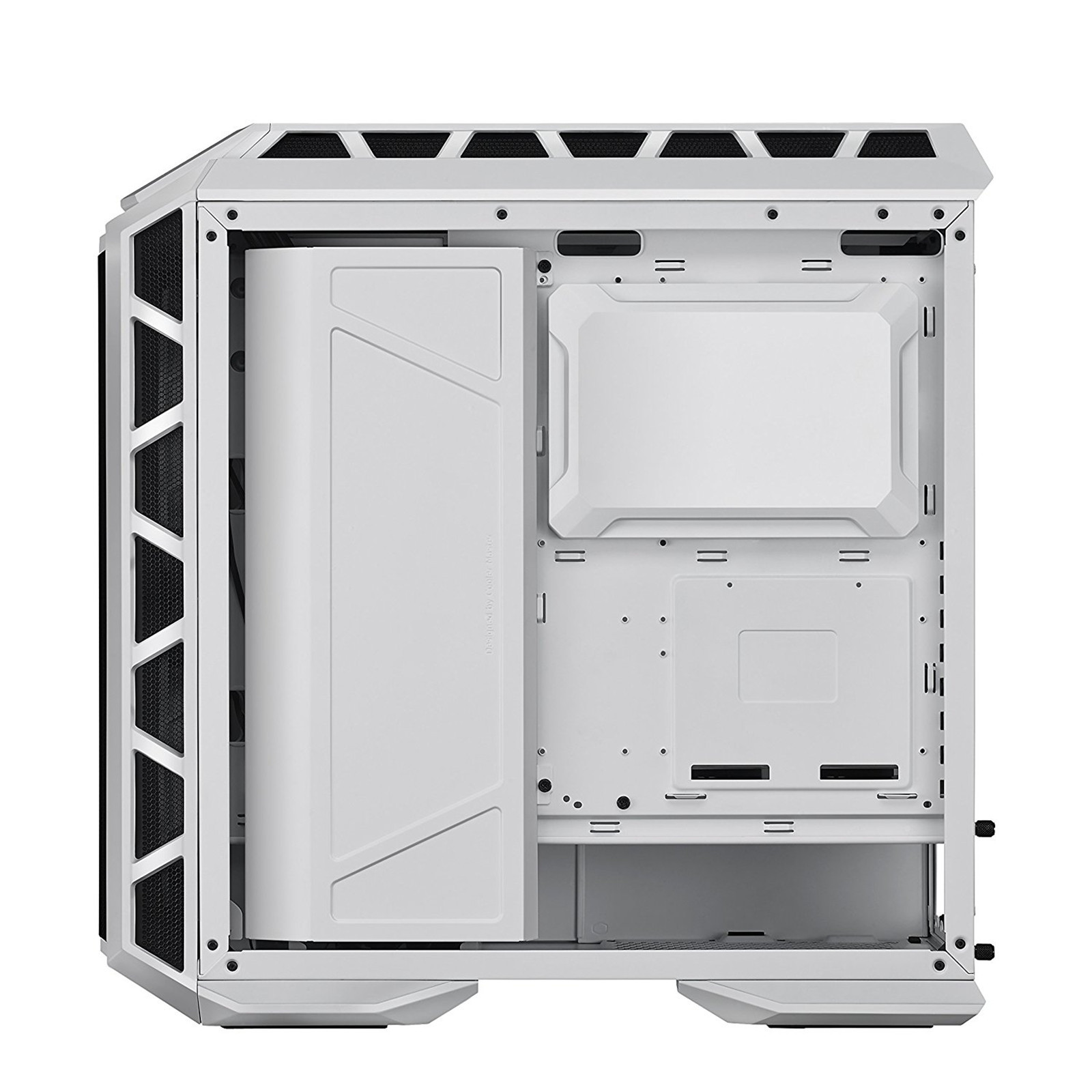

A PSU shroud and additional cable covers take cable management to the next level.
Assemble clean builds like a pro!

1 TO 3 SPLITTER CABLE FOR RGB LED FANS
Connector Splitter and 4 pin male to male adapters are included.

Specifications

• Available Color White
• Materials Outlook: Plastic, Steel Mesh
• Body: Steel
• Side panel: Tempered Glass, Steel
• Dimensions (LxWxH) 544 × 242 × 542mm / 21.4 × 9.5 × 21­.3 inch
• Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7")
• Expansion Slots 7 + 2 (Support vertical graphics card installation)
• Drive Bays
  • 5.25" 0
  • 2.5" / 3.5" 2
  • 2.5" SSD 2

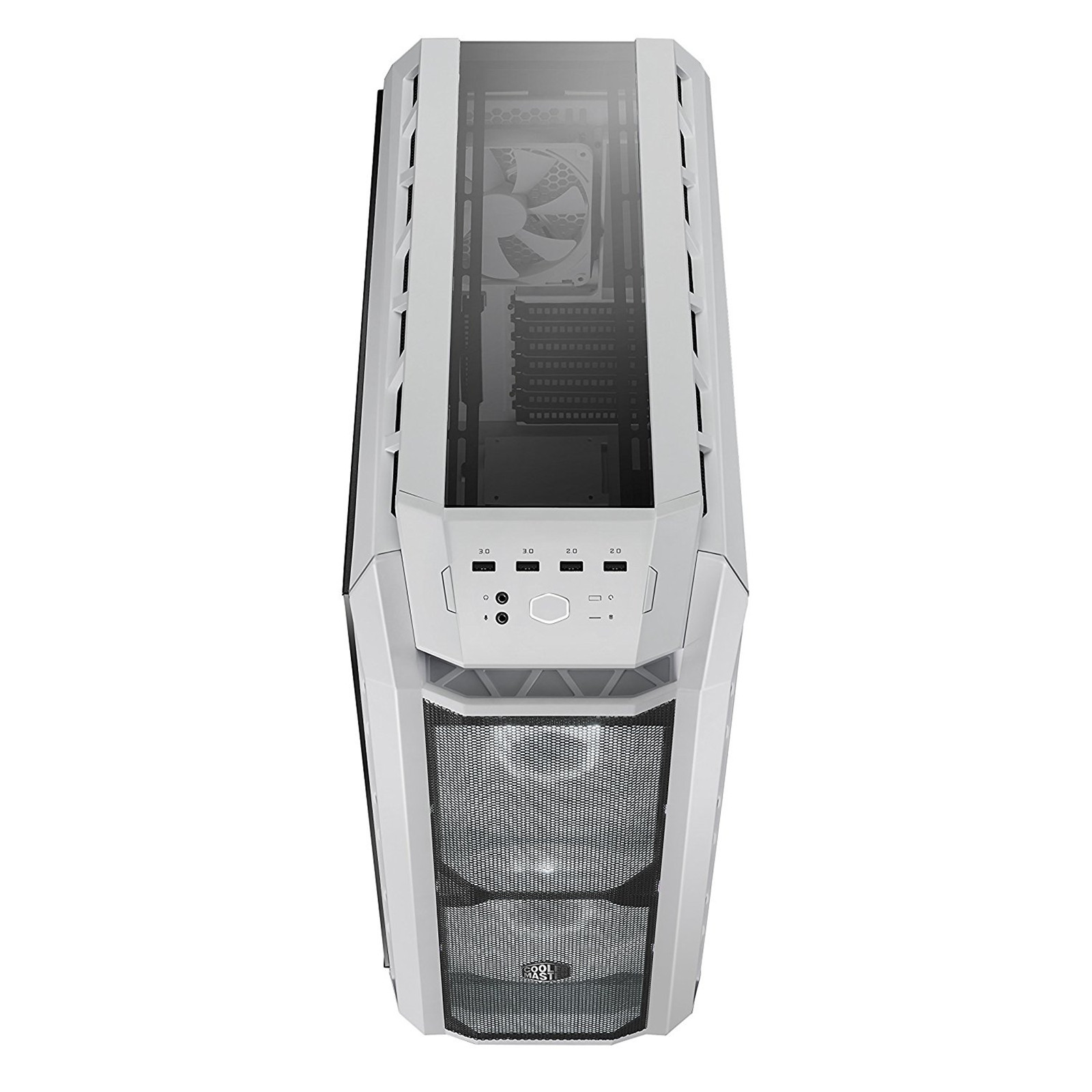

• I/O Port
  • USB 3.0 × 2
  • USB 2.0 × 2
• Audio In & Out (supports HD Audio)
• Pre-installed Fan(s)

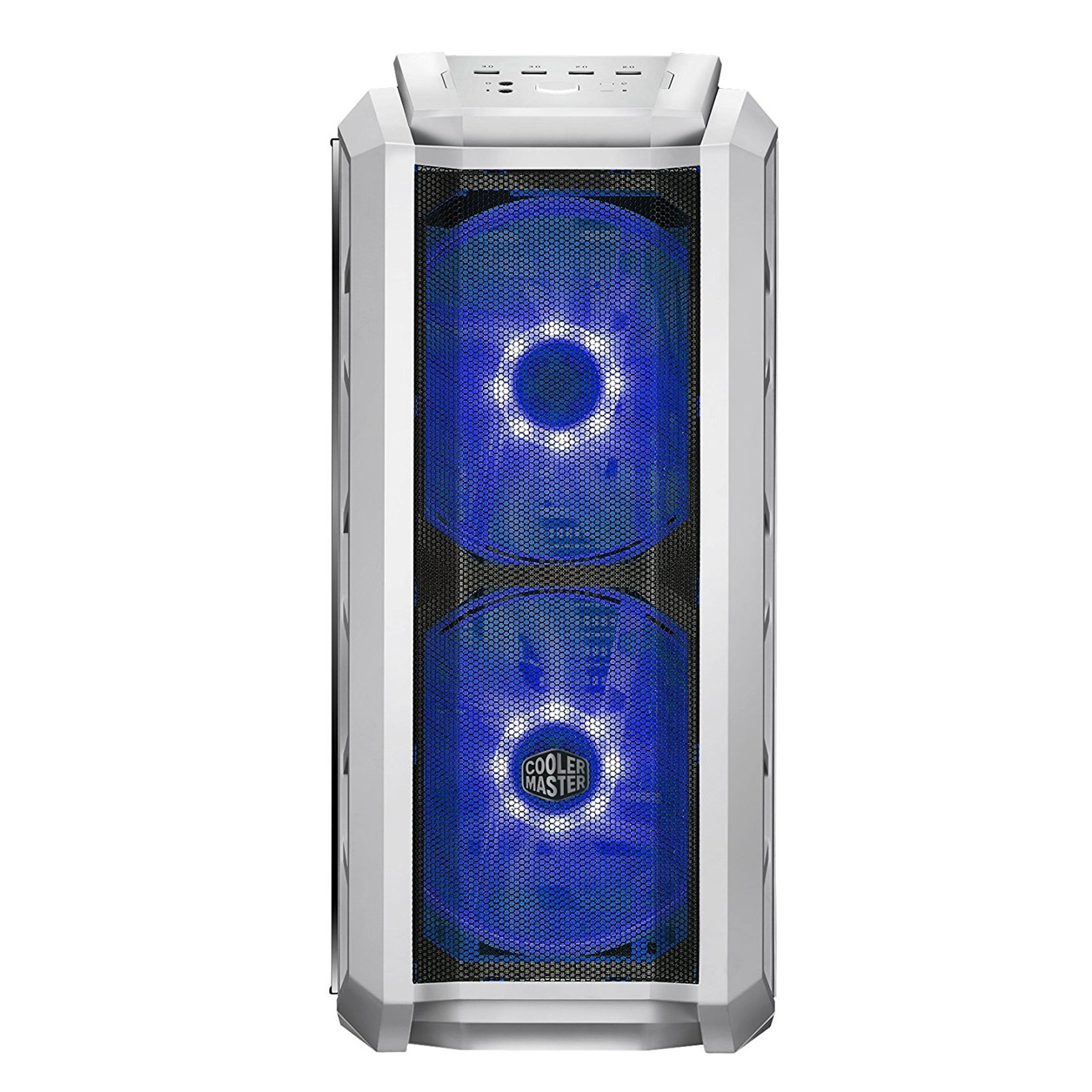

  • Front 200 × 25mm RGB fan x 2, 800RPM
  • Rear 140 × 25mm fan x 1, 1200RPM
• Fan Support
  • Top 120/140mm fan x 3 or 200mm fan x 2
  • Front 120/140mm fan x 3 or 200mm fan x 2
  • Rear 120/140mm fan x 1
• Liquid Cooling Support
  • Top 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm)
  • Front 120mm, 140mm 240mm, 280mm, 360mm
  • Rear 120mm, 140mm
• Clearance CPU Cooler 190mm / 7.5 inch
• GPU 412mm / 16.2 inch
• Power Supply Support Bottom mount, ATX PS2
