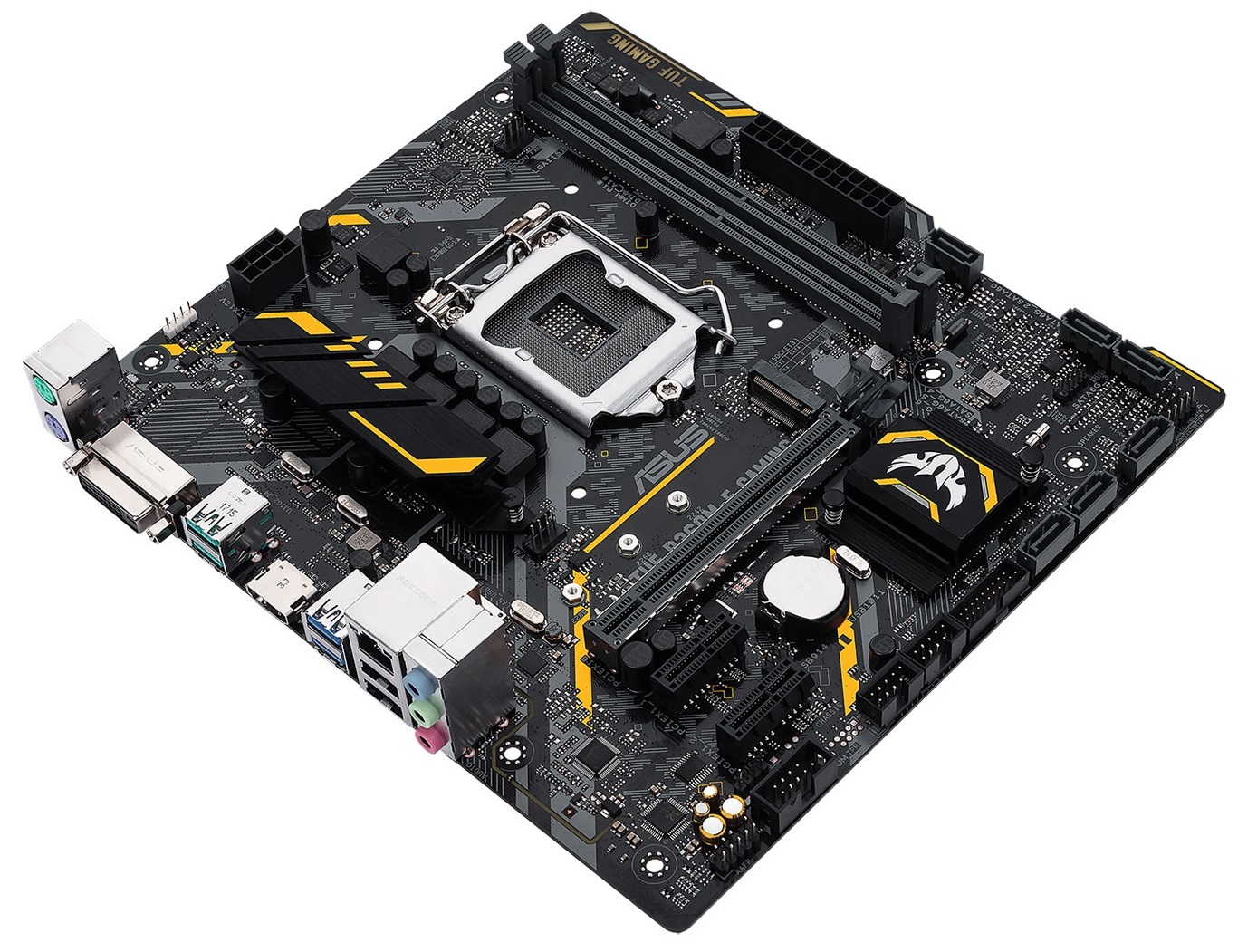

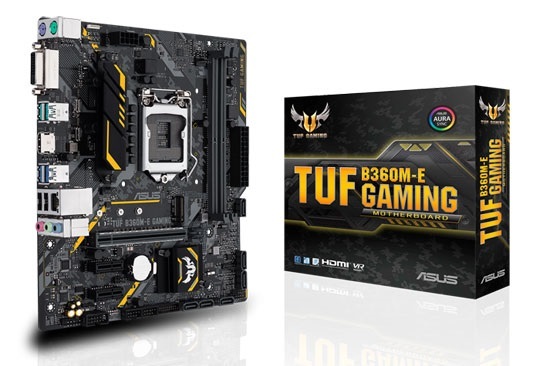

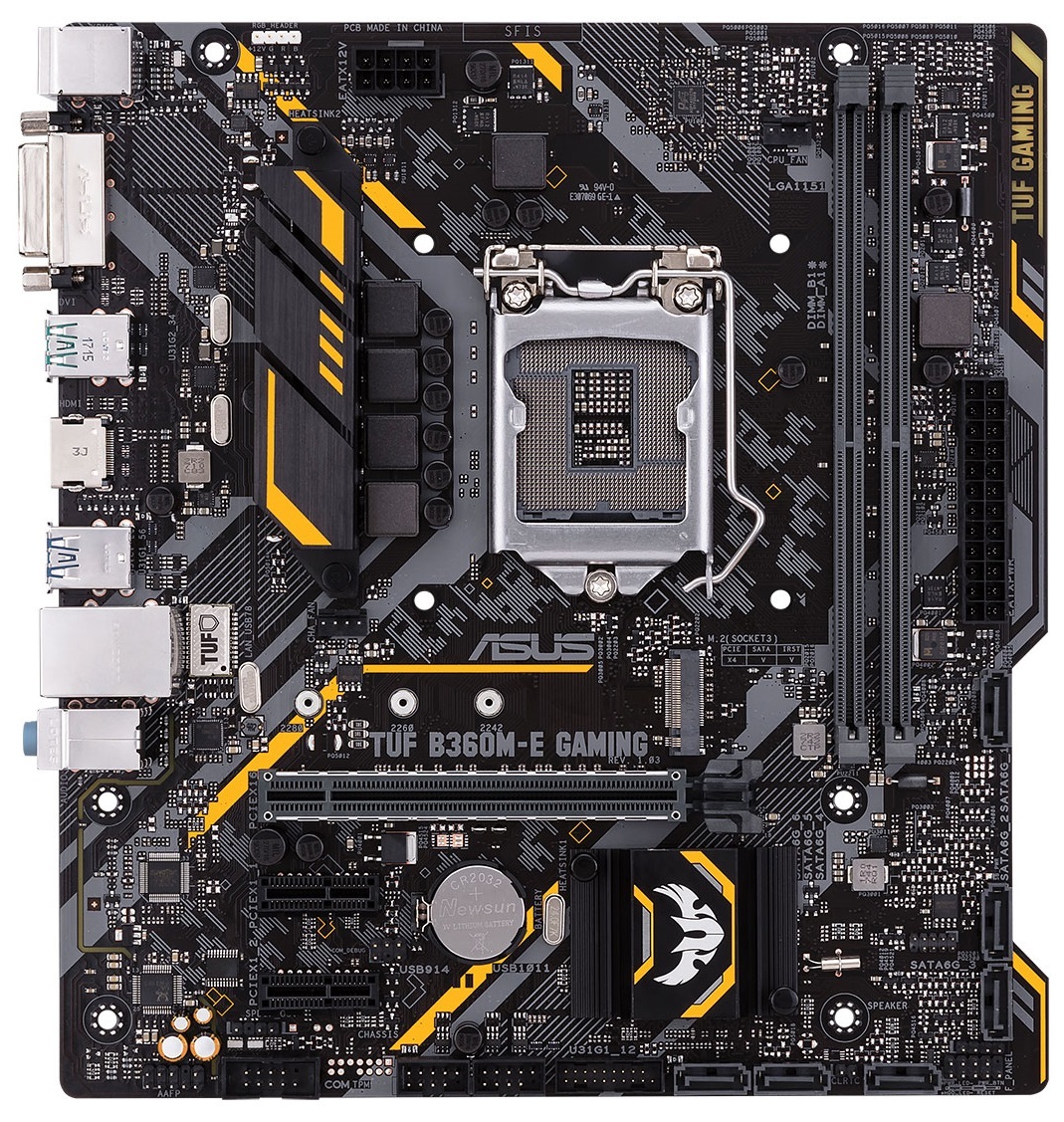

ASUS TUF B360M-E GAMING Motherboard

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

$149.00
or 4 payments of $37.25 with Learn more
In stock at Mighty Ape

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
  • Saturday using Saturday Delivery
    Mighty Ape can deliver this product on Saturday to most cities and towns in NZ. Learn more
  • Monday using standard courier delivery

Description

  • TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Fan Xpert: Flexible cooling controls
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
  • Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
  • Native M.2: Lightning-fast storage speeds

Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

Specs

  • CPU
    • Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Ce­leron® Processors
    • Supports Intel® 14 nm CPU
    • Supports Intel® Turbo Boost Technology 2.0
    • The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    • Refer to www.asus.com for CPU support list
  • Chipset: Intel® B360
  • Memory
    • Intel® B360 Chipset
    • 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    • Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    • DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    • Integrated Graphics Processor
    • Multi-VGA output support : HDMI/DVI-D ports
    • Supports HDMI with max. resolution 4096 × 2160 @ 24 Hz / 2560 × 1600 @ 60 Hz
    • Supports DVI-D with max. resolution 1920 × 1200 @ 60 Hz
    • Maximum shared memory of 1024 MB (for iGPU exclusively)
    • Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Expansion Slots
    • Intel® B360 Chipset
      • 1 x PCIe 3.0/2.0 x16 (x16 mode)
      • 2 x PCIe 3.0/2.0 x1
  • Storage
    • Intel® B360 Chipset :
      • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 4 mode)*1
      • 6 x SATA 6Gb/s port(s),
    • Intel® Optane™ Memory Ready
  • LAN
    • Intel® I219V, 1 x Gigabit LAN Controller(s)
    • TUF LANGuard
  • Audio
    • Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2
  • Audio Feature :
    • Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    • Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    • Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    • Intel® B360 Chipset : : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
    • Intel® B360 Chipset : : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
    • Intel® B360 Chipset : : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)
  • Special Features
    • ASUS TUF PROTECTION
      • ASUS SafeSlot: Protect your graphics card Investment
      • ASUS ESD Guard: Enhanced ESD protection
      • ASUS Overvoltage Protection: World-class circuit-protecting power design
      • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
      • ASUS DIGI+ VRM: 5 Phase digital power design
    • ASUS OptiMem:: Optimem (Improved DDR4 stability)
    • ASUS EPU :: EPU
    • ASUS Exclusive Features :
      • AI Suite 3
      • Ai Charger
      • ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
      • EZ XMP ASUS Exclusive Features
      • PC Cleaner
      • File Transfer
    • ASUS Quiet Thermal Solution :: ASUS Fan Xpert
    • ASUS EZ DIY :
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS MyLogo 2
      • ASUS UEFI BIOS EZ Mode
    • ASUS Q-Design :
      • ASUS Q-Slot
      • ASUS Q-DIMM
    • AURA: RGB Lighting Control
    • M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Operating System Support: Windows® 10 64-bit

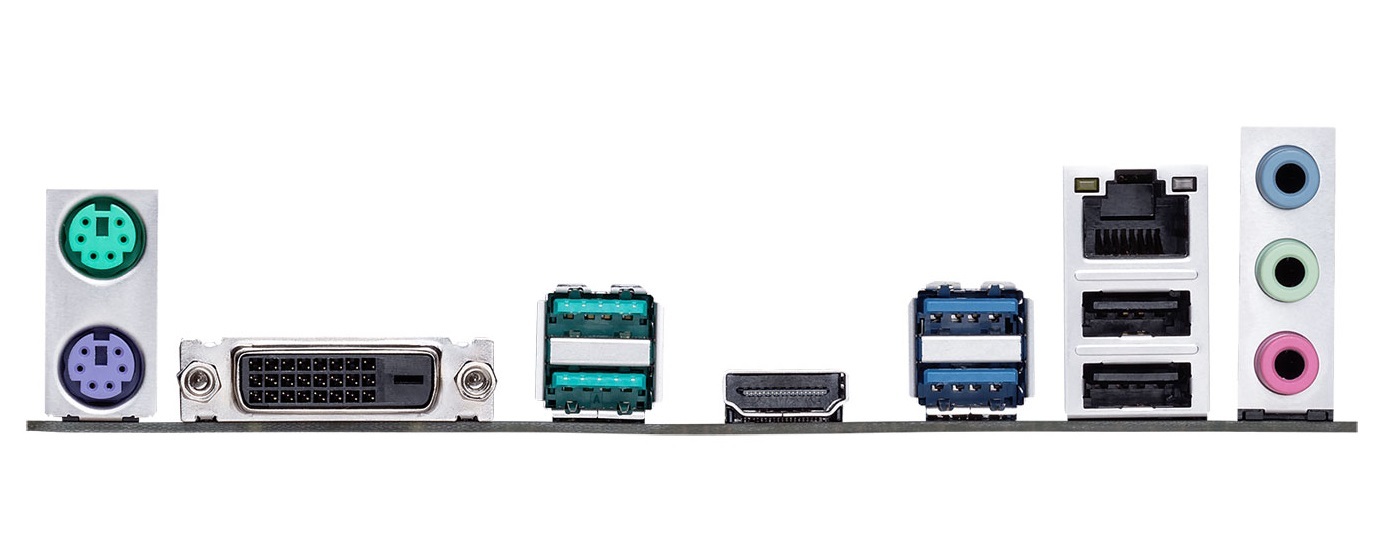

  • Back I/O Ports
    • 1 x PS/2 keyboard (purple)
    • 1 x PS/2 mouse (green)
    • 1 x DVI-D
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.1 Gen 2 (teal blue)
    • 2 x USB 3.1 Gen 1 (blue) ,
    • 2 x USB 2.0
    • 3 x Audio jack(s)
  • Internal I/O Ports
    • 1 x RGB Header(s)
    • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 4 mode)
    • 1 x COM port(s) connector(s)
    • 6 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s) (1 × 4 -pin)
    • 1 x Chassis Fan connector(s) (1 × 4 -pin)
    • 1 x S/PDIF out header(s)
    • 1 × 24-pin EATX Power connector(s)
    • 1 × 8-pin EATX 12V Power connectors
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x System panel(s)
    • 1 x Clear CMOS jumper(s)
    • 1 x Speaker connector
  • Accessories
    • User's manual
    • I/O Shield
    • 2 x SATA 6Gb/s cable(s)
    • 1 x M.2 Screw Package
    • 1 x Supporting DVD
    • 1 x TUF Gaming Sticker
    • 1 x TUF Certification card(s)
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
  • Manageability: WOL by PME, PXE
  • Support Disc
    • Drivers
    • ASUS Utilities
    • EZ Update
    • Anti-virus software (OEM version)
  • Form Factor
    • mATX Form Factor
    • 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
  • Note
    • 1.When a device in SATA mode is installed on the M.2 socket, SATA2 port cannot be used.
    • 2. Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
Release date NZ
April 4th, 2018
Manufacturer code:
TUF B360M-E GAMING
Warranty Period
1 year
Brand
Manufacturer
Series
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
2
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
32
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
0
Number of HDMI Ports
1
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
2
Number of M.2 Sockets
1
Number of SATA Headers
6
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
2
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Number of USB Type-C Back Panel Ports
0
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
265x270x55
UPC
889349989951
Product ID
27818692
