- NVIDIA TURING™: ROG GeForce RTX™ graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
- DirectX 12: Power new visual effects and rendering techniques for more lifelike gaming.
- NVIDIA Shadowplay™ Record and share high-quality gameplay videos, screenshots, and livestreams with your friends.
- Patented Wing-blade Fans deliver high air pressure, reduced noise levels, IP5X certified dust resistance, and 0dB mode for silent gaming.*
- MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
- Auto-Extreme Technology uses automation to enhance reliability.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages to fuel Turing™’s cores.
- ASUS FanConnect II equips 2 hybrid-controlled fan headers for optimal system cooling.
- GPU Tweak II provides intuitive performance tweaking and thermal controls.
OUTSHINE THE COMPETITION
The ROG Strix GeForce RTX™ 2070 teams up NVIDIA®'s A-list GPU with an elite
cast of specialists, setting the stage for epic gaming action. Gargantuan power
delivery provides the muscle to push overclocking boundaries, while cooling
that's honed to perfection keeps the spotlight squarely on
Turing™'s performance. And with an arsenal of utilities that allow you to
customize and tweak this extreme hardware, you call the shots.
Patented Wing-blade Fans
They're pretty fly
Our patented Wing-blade fan design is cool and quiet with 105% greater static
pressure over the heatsink compared to traditional axial fans. IP5X dust
resistance seals the fan's internals from particle ingress to keeps things
running smoothly.
0dB Technology
Quiet intelligence
0dB technology allows fans to stop spinning when the GPU core temperature
remains below 55 Celsius, letting you enjoy light gaming in complete silence*.
If temps rise, the fans automatically start up again.
MaxContact Technology
Precision-machined heat spreader
MaxContact is an industry-first technology that utilizes precision machining to
create a heat spreader surface that makes up to 2X more contact with the GPU
chip, resulting in improved thermal transfer.
Auto-Extreme Technology
Precision Automated Manufacturing
All ROG Strix graphics cards are produced using Auto-Extreme Technology, an
automated manufacturing process that sets new standards in the industry.
Traditionally, soldering of through-hole and surface-mounted components needs to
be performed in separate stages. Auto-Extreme Technology allows all soldering to
be completed in a single pass, reducing thermal strain on components and
avoiding the use of harsh cleaning chemicals. The end result is less
environmental impact, lower manufacturing power consumption, and a more reliable
product.
Specs
- Graphics Engine: NVIDIA® GeForce RTX™ 2070
- Bus Standard: PCI Express 3.0
- OpenGL: OpenGL®4.5
- Video Memory: GDDR6 8GB
- Engine Clock
- OC Mode – GPU Boost Clock : 1845 MHz , GPU Base Clock : 1410 MHz
- Gaming Mode (Default) – GPU Boost Clock : 1815 MHz , GPU Base Clock : 1410 MHz
- CUDA Core: 2304
- Memory Clock: 14000 MHz
- Memory Interface: 256-bit
- Resolution: Digital Max Resolution:7680×4320

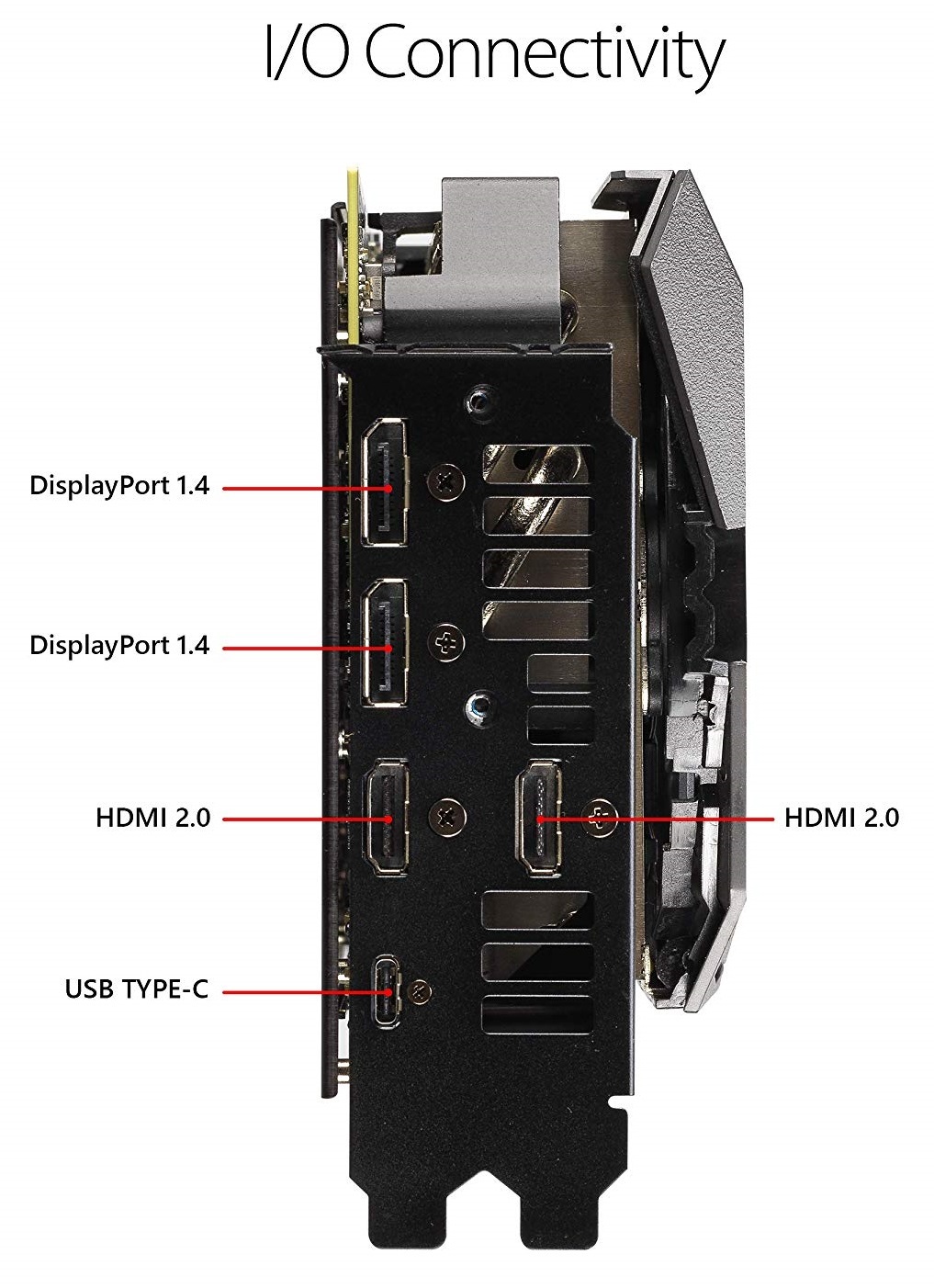

- Interface
- HDMI Output : Yes x 2 (Native) (HDMI 2.0b)
- Display Port : Yes x 2 (Native) (DisplayPort 1.4)
- HDCP Support : Yes (2.2)
- USB Type-C Support:Yes x1
- Maximum Display Support: 4
- NVlink/ Crossfire Support: No
- Recommended PSU: 550W
- Power Connectors: 1 × 6-pin, 1 × 8-pin
- Accessories
- 1 x CD
- 1 x Quick Guide
- 1 x ROG Velcro Hook & Loop
- Software: ASUS GPU Tweak II & Driver
- Dimensions
- 11.83 " x 5.14 " x 1.93 " Inch
- 30.5 × 13.06 x4.89 Centimeter
