- AM4 socket: Ready for AMD Ryzen™ processors
- Fast memory and storage: Dual-channel DDR4 3200MHz (OC) and NVM Express®
RAID supported.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible
PC gear.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
- Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst
technologies.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and
cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an
aural landscape that draws you deeper into the action.
- Gamer's Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium
components for maximum endurance.

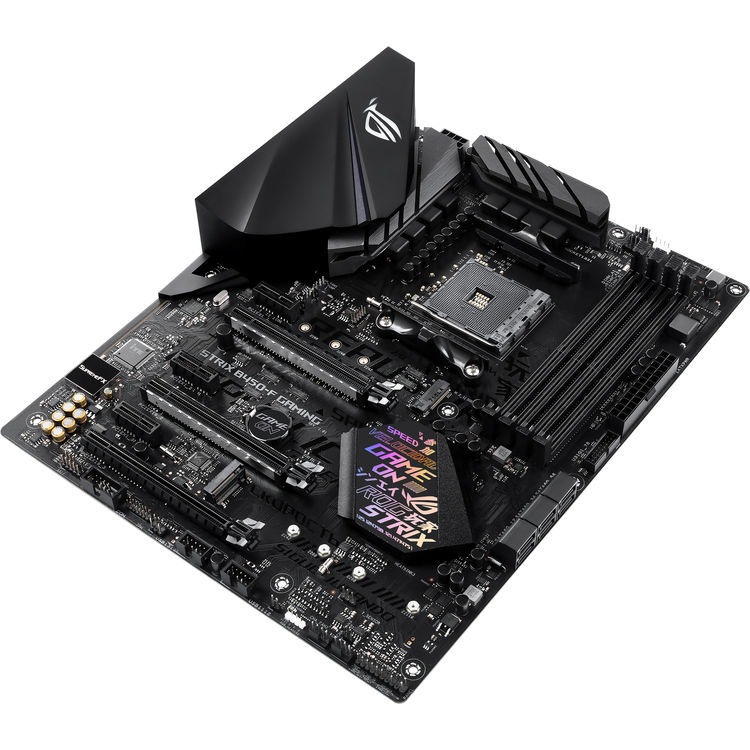

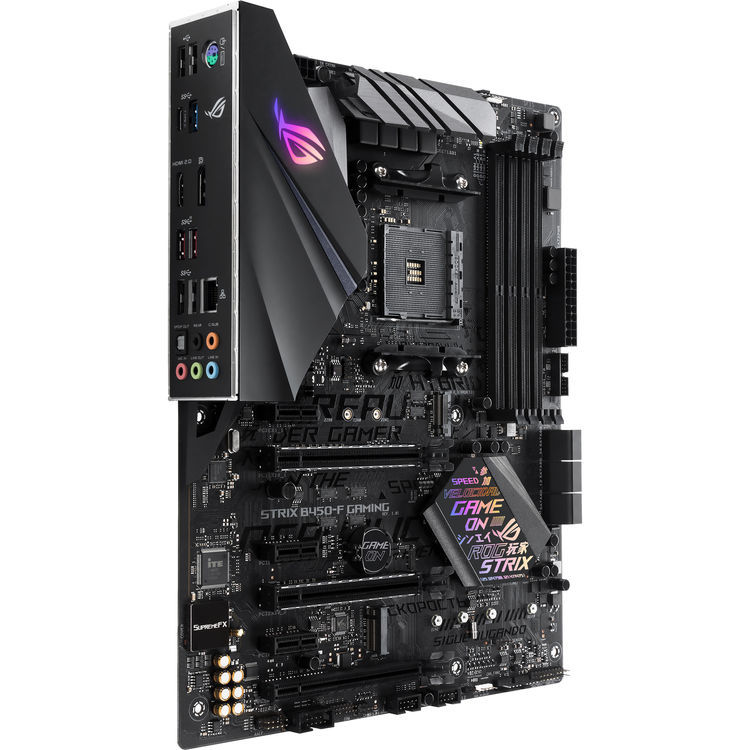

SOLID HARDWARE SPECS FOR GAMING AND MORE
With ample power to fuel Ryzen's cores, plus cooling, storage and connectivity
options for a range of hardware, the ROG Strix B450-F Gaming motherboard has
everything you need to build on a budget or load up with high-performance
components to game in the big leagues.
DESIGN, CUSTOMIZATION, AND SETUP
A host of design touches, customization options, comprehensive validation
lists, and the most diverse ecosystem of components in the industry make
building and personalizing a gaming rig with ROG Strix B450-F Gaming
wonderfully easy.
TUNE YOUR RIG THE WAY YOU WANT
The ROG Strix B450-F Gaming motherboard features firmware controls and software
utilities crafted for all skill levels, making first-time setup, tuning, and
system maintenance simple. With options from overclocking and cooling to
managing network performance and audio characteristics, you can configure your
ROG Strix gaming build to perform the way you want.
Specs
- CPU
- AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega
Graphics/Ryzen™ 1st Generation Processors
- Chipset: AMD B450
- Memory
- AMD Ryzen™ Processors
- 4 x DIMM, Max. 64GB,
DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC,
Un-buffered Memory
- Dual Channel Memory Architecture
- Graphic
- Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
- Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 × 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 × 2160 @ 60 Hz
- Multi-GPU Support
- AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
- Supports AMD 3-Way CrossFireX™ Technology
- Expansion Slots
- AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
- 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
- AMD Ryzen™ with Radeon™ Vega Graphics Processor
- 1 x PCIe 3.0/2.0 x16 (x8 mode)
- AMD B450 chipset
- 1 x PCIe 2.0 x16 (max at x4 mode) *1
- 3 x PCIe 2.0 x1
- Storage
- AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *2
- 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices
support (SATA & PCIE 3.0 × 4 mode)*3
- 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage
devices support (PCIE 3.0 × 4 mode)*4
- 2 x SATA 6Gb/s port(s)
- AMD Ryzen™ with Radeon™ Vega Graphics Processor : *2
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support
(SATA & PCIE 3.0 × 4 mode)*3
- 2 x SATA 6Gb/s port(s)
- AMD B450 chipset :
- 4 x SATA 6Gb/s port(s),
- Support Raid 0, 1, 10
- LAN
- Intel® I211-AT, 1 x Gigabit LAN Controller(s)
- Anti-surge LANGuard
- ROG GameFirst Technology
- Audio
- ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR
recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *5
- Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
- USB Ports
- AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™
1st Generation :
- 3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)
- AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™
1st Generation :
- 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)
- AMD B450 chipset :
- 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
- AMD B450 chipset :
- 2 x USB 3.1 Gen 1 port(s)
- AMD B450 chipset :
- 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
- ROG Exclusive Features
- ROG RAMCache II
- ROG CPU-Z
- Pre-mounted I/O Shield
- Overwolf
- GameFirst IV
- Special Features
- 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key
perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together,
providing better CPU performance, efficient power saving, precise digital power
control, whole system cooling and even tailor your own app usages.
- TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
selection for optimized system cooling control
- Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- SafeSlot
- ASUS EPU :
- AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS Grid
- ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- Digi+VRM
- Turbo APP
- featuring system performance tuning for selected applications

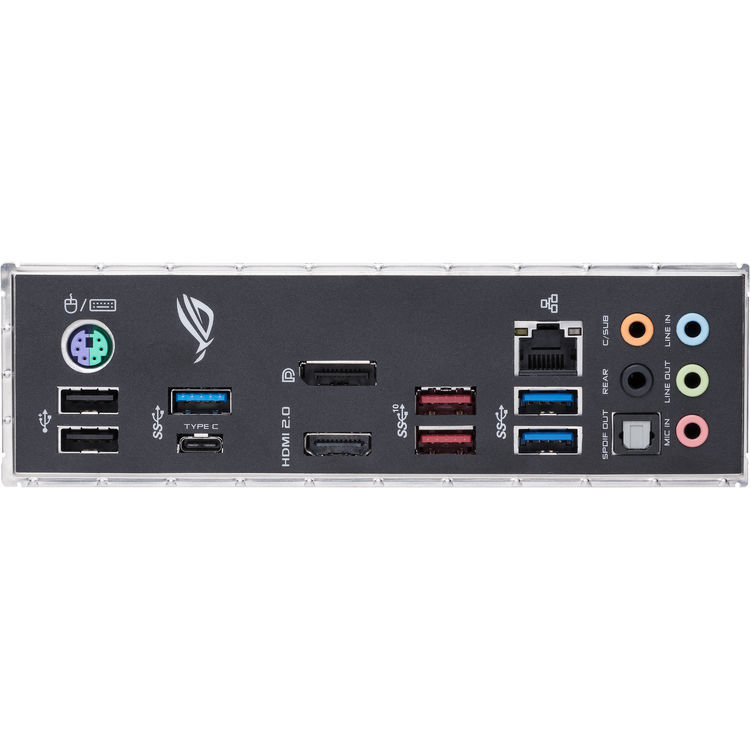

- Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.1 Gen 2 (red)Type-A,
- 4 x USB 3.1 Gen 1 (blue) ,
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- Internal I/O Ports
- 2 x Aura RGB Strip Headers
- 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB
3.1 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
(SATA & PCIE 3.0 × 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices
support (PCIE 3.0 × 4 mode)
- 1 x TPM header
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 1 × 24-pin EATX Power connector(s)
- 1 × 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Thermal sensor connector(s)
- 1 x Clear CMOS jumper(s)
- Operating System
- Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note
- 1 PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3.
- 2 Support StoreMI and NVMe RAID
- 3 When the M.2_1 Socket 3 is operating in SATA or PCIE mode,
SATA6G5/6 ports will be disabled.
- 4 When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at
x8 mode.
- 5 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for
8-Channel audio.
