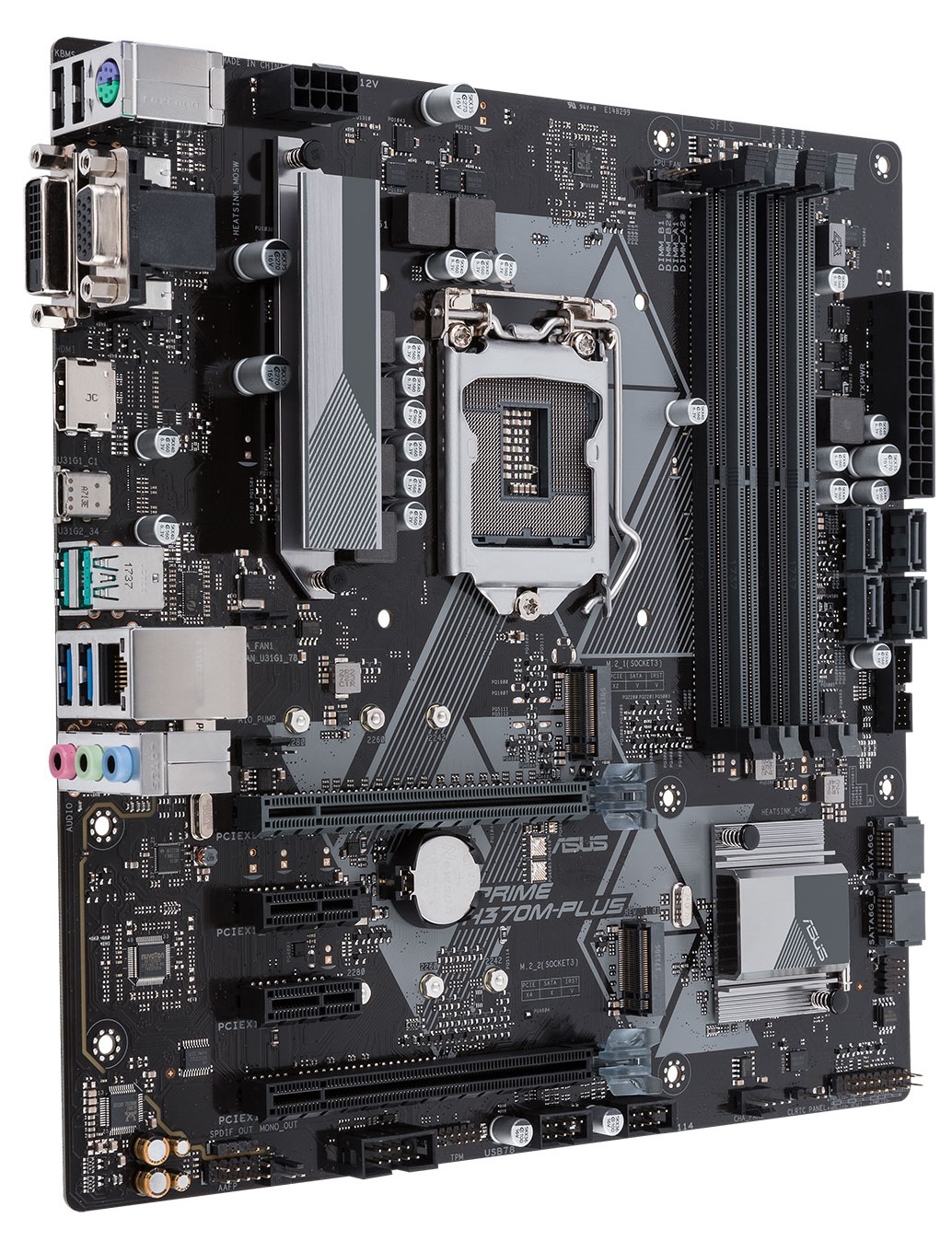

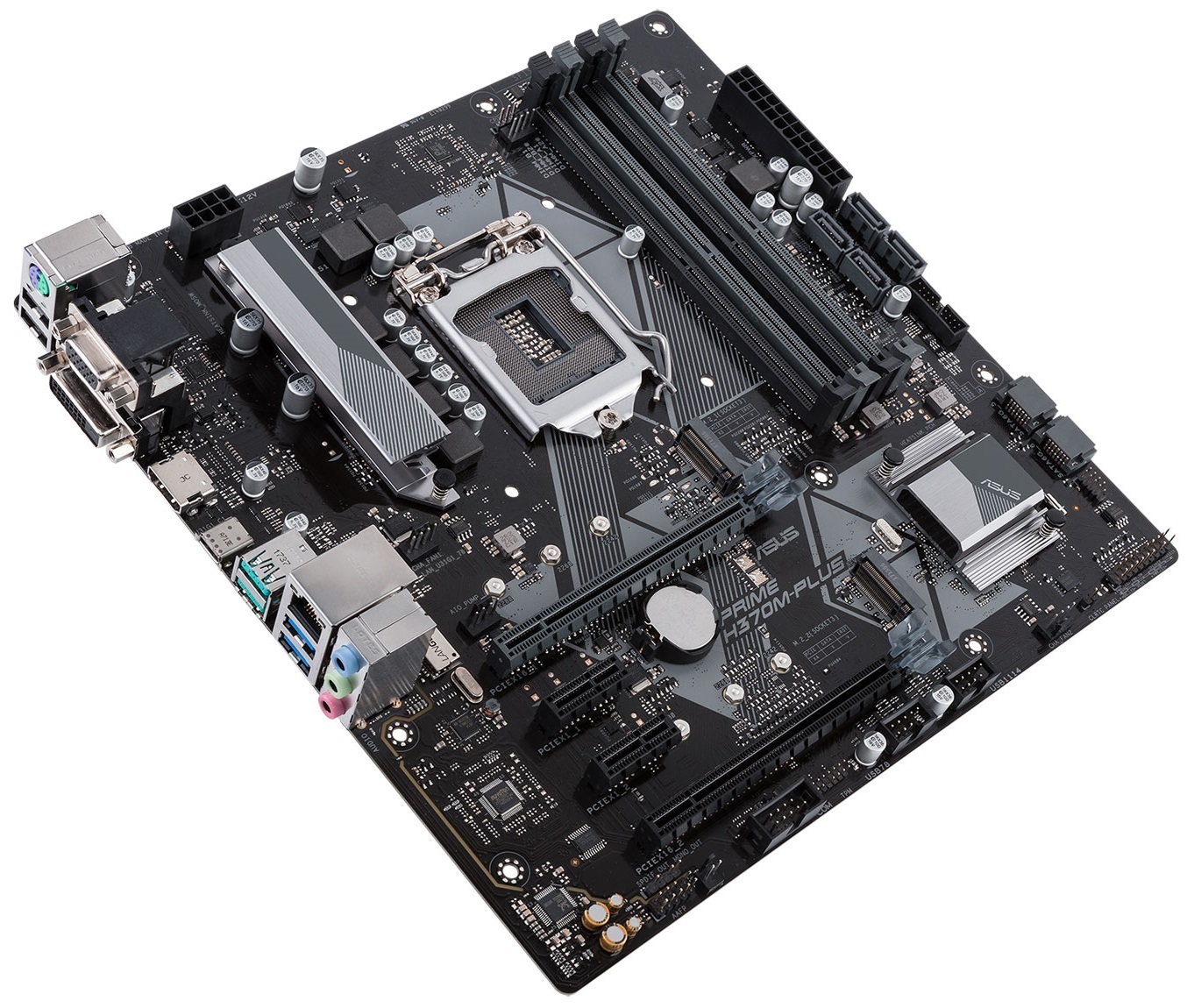

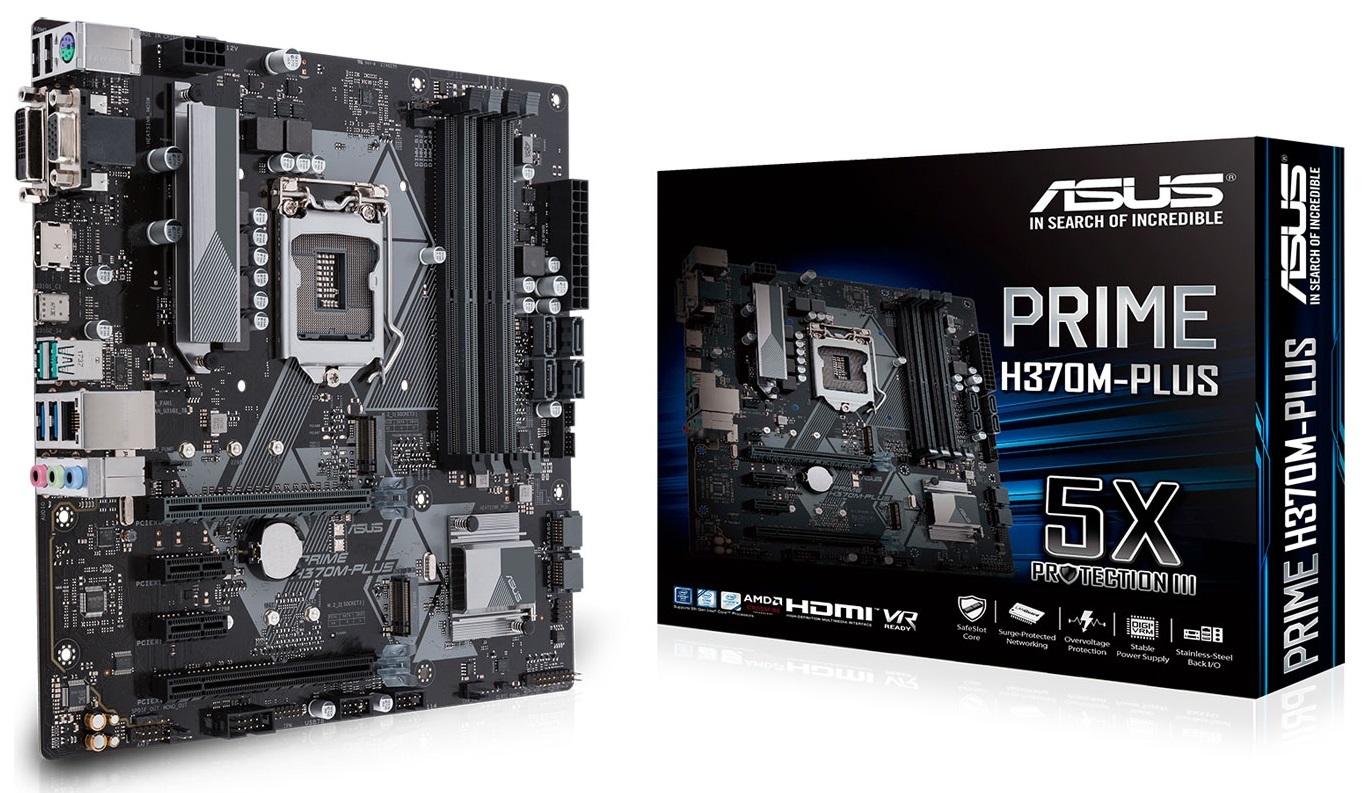

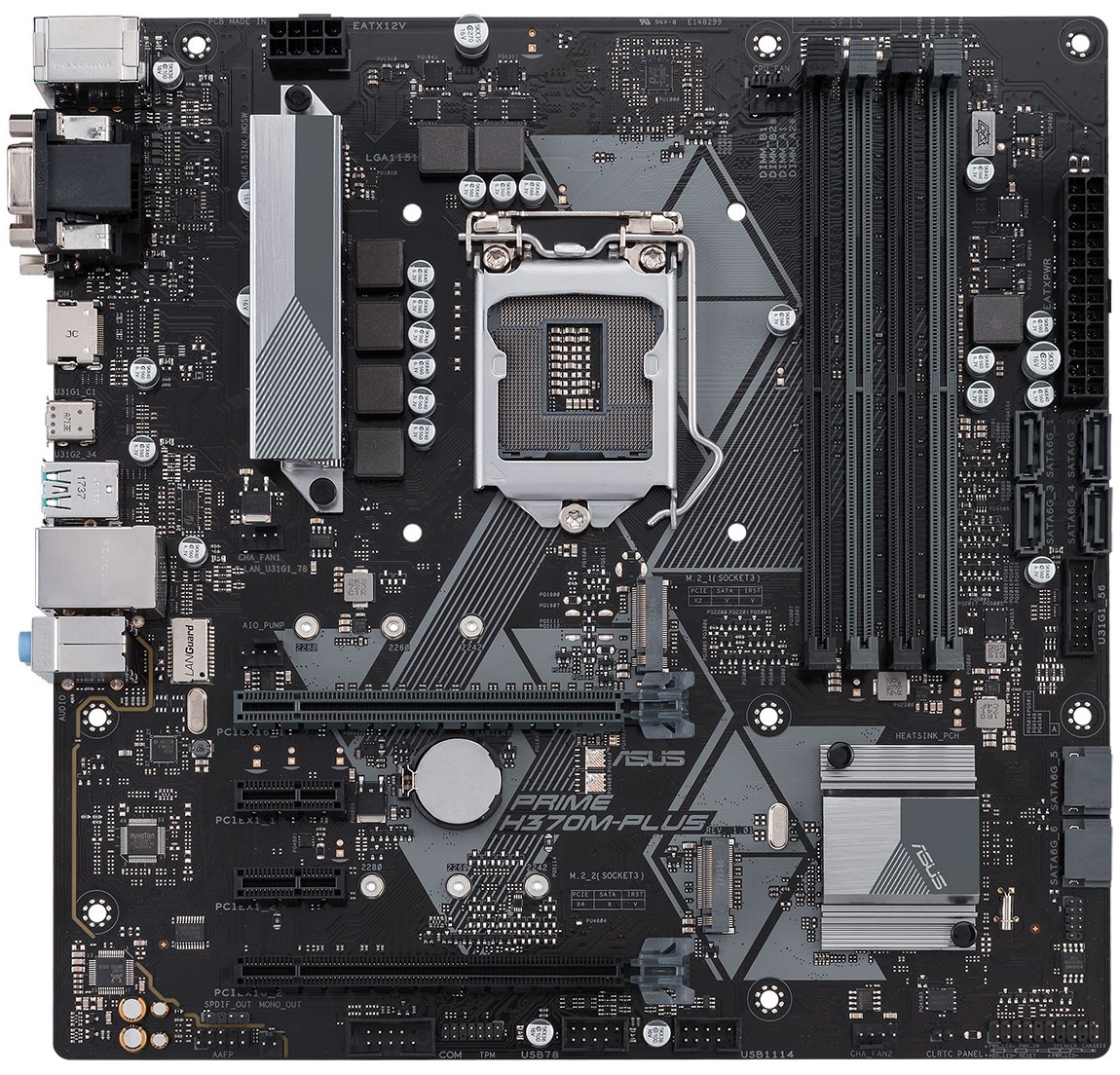

ASUS PRIME H370M-PLUS Motherboard

Customer rating

Click to share your rating 1 rating (4.0/5.0 average) Thanks for your vote!

Share this product

$188.00
or 4 payments of $47.00 with Learn more
In stock with supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 48-72 hours

Availability

Delivering to:

Estimated arrival:

  • Around 23-26 July using standard courier delivery

Customer reviews

4.0 out of 5 stars Based on 1 Customer Ratings

5 star
(0)
4 star
(1)
3 star
(0)
2 star
(0)
1 star
(0)
Write a Review
"Not compatible with an i5-2500"
4 stars"
Purchased on Mighty Ape

You may or may not need a get a new CPU like I did for this board. Blinky lights on the PCIe slots, Nifty. Get some new RAM too, maybe. Comes with a free mobo box. Not benchmarked because I am busy with the pew pew… Runs the command prompt like a champ!

0 out of 1 people found this review helpful.

Description

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Fan Xpert 4 Core: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2, Intel Optane memory ready and dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds

ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.

Specs

  • CPU
    • Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Ce­leron® Processors
    • Supports Intel® 14 nm CPU
    • Supports Intel® Turbo Boost Technology 2.0
    • The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    • Refer to www.asus.com for CPU support list
  • Chipset: Intel® H370
  • Memory
    • 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    • Dual Channel Memory Architecture
    • Supports Intel® Extreme Memory Profile (XMP)
    • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    • The maximum memory frequency supported varies by processor.
    • DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    • Integrated Graphics Processor- Intel® HD Graphics support
    • Multi-VGA output support : HDMI/DVI-D/D-Sub ports
    • Supports HDMI 1.4b with max. resolution 4096 × 2160 @ 24 Hz / 2560 × 1600 @ 60 Hz
    • Supports DVI-D with max. resolution 1920 × 1200 @ 60 Hz
    • Supports D-sub with max. resolution 1920 × 1200 @ 60 Hz
    • Maximum shared memory of 1024 MB (for iGPU exclusively)
    • Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Multi-GPU Support: Supports AMD CrossFireX™ Technology
  • Expansion Slots
    • 1 x PCIe 3.0/2.0 x16 (x16 mode)
    • 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    • 2 x PCIe 3.0/2.0 x1
  • Storage
    • Intel® H370 Chipset :
      • 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
      • 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 × 4 mode)
      • 6 x SATA 6Gb/s port(s), gray
    • Support Raid 0, 1, 5, 10
    • Intel® Optane™ Memory Ready
  • LAN
    • Intel® I219V, 1 x Gigabit LAN Controller(s)
    • ASUS LAN Guard
  • Audio
    • Realtek® ALC887 8-Channel High Definition Audio CODEC
    • Supports : Jack-detection, Front Panel Jack-retasking
    • Audio Feature :
      • Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
      • Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      • Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    • Intel® H370 Chipset : : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
    • Intel® H370 Chipset : : 5 x USB 3.1 Gen 1 up to 5Gbps port(s) (3 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)
    • Intel® H370 Chipset : : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    • ASUS 5X Protection III :
      • ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
      • ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
      • ASUS Overvoltage Protection: World-class circuit-protecting power design
      • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
      • ASUS DIGI+ VRM: 6 Phase digital power design
    • ASUS EPU :: EPU
    • ASUS Exclusive Features :
      • AI Suite 3
      • Ai Charger
      • PC Cleaner
      • File Transfer
    • ASUS Quiet Thermal Solution :
      • Stylish Fanless Design Heat-sink solution & MOS Heatsink
      • ASUS Fan Xpert 4 Core
    • ASUS EZ DIY :
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
    • ASUS Q-Design :
      • ASUS Q-Slot
      • ASUS Q-DIMM
    • M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports
    • 1 x PS/2 keyboard/mouse combo port(s)
    • 1 x DVI-D
    • 1 x D-Sub
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps
    • 3 x USB 3.1 Gen 1 (blue) Type-A + USB Type-CTM,
    • 2 x USB 2.0
    • 3 x Audio jack(s)
  • Internal I/O Ports
    • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 × 4 mode)
    • 1 x TPM header
    • 6 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s) (1 × 4 -pin)
    • 2 x Chassis Fan connector(s) (1 × 4 -pin)
    • 1 x AIO_PUMP connector (1 × 4 -pin)
    • 1 x S/PDIF out header(s)
    • 1 × 24-pin EATX Power connector(s)
    • 1 × 8-pin ATX 12V Power connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x System panel(s) (Chassis intrusion header is inbuilt)
    • 1 x Clear CMOS jumper(s)
    • 1 x COM port header
    • 1 x Mono Out header
  • Accessories
    • User's manual
    • I/O Shield
    • 2 x SATA 6Gb/s cable(s)
    • 2 x M.2 screws
    • 1 x SCD
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability: WOL by PME, PXE
  • Support Disc
    • Drivers
    • ASUS Utilities
    • ASUS EZ Update
    • Anti-virus software (OEM version)
  • Operating System: Windows® 10 64-bit
  • Form Factor
    • mATX Form Factor
    • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    • 1. *The M.2_1 socket shares SATA1/2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
Release date NZ
April 4th, 2018
Manufacturer code:
PRIME H370M-PLUS
Warranty Period
1 year
Brand
Manufacturer
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
64
Number of VGA Ports
1
Number of DVI Ports
1
Number of DisplayPort Ports
0
Number of HDMI Ports
1
Number of PCI Express x16 Slots
2
Number of PCI Express x1 Slots
2
Number of M.2 Sockets
2
Number of SATA Headers
6
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
2
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
265x275x50
UPC
889349972823
Product ID
27818710
