PC Parts & Components:

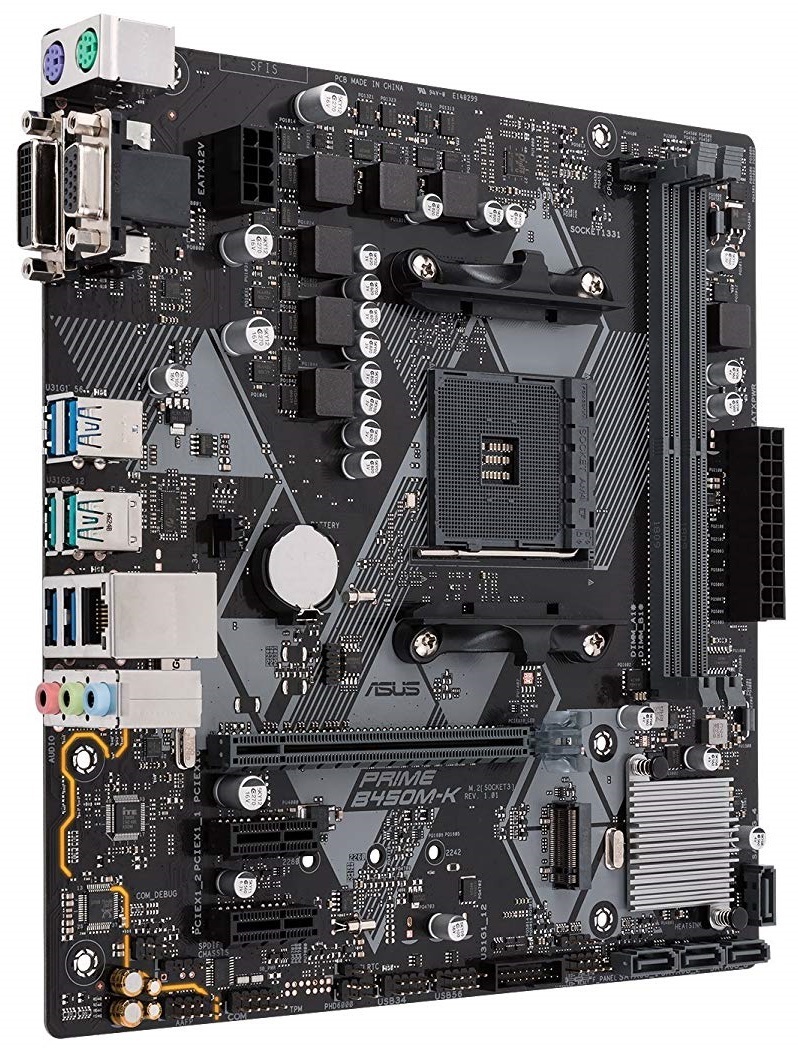

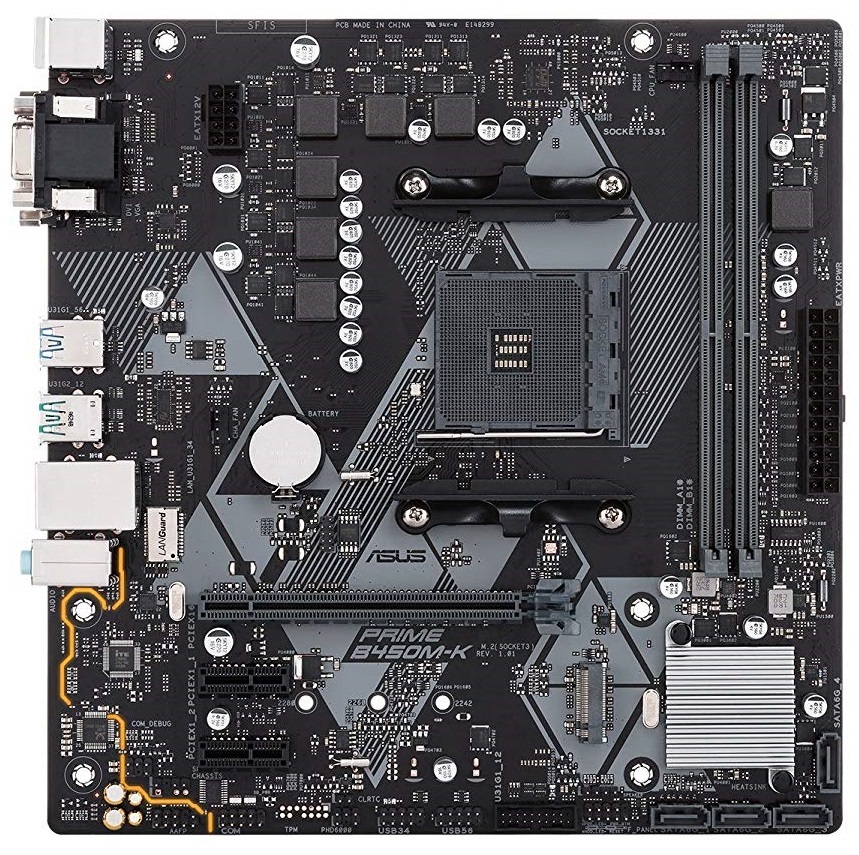

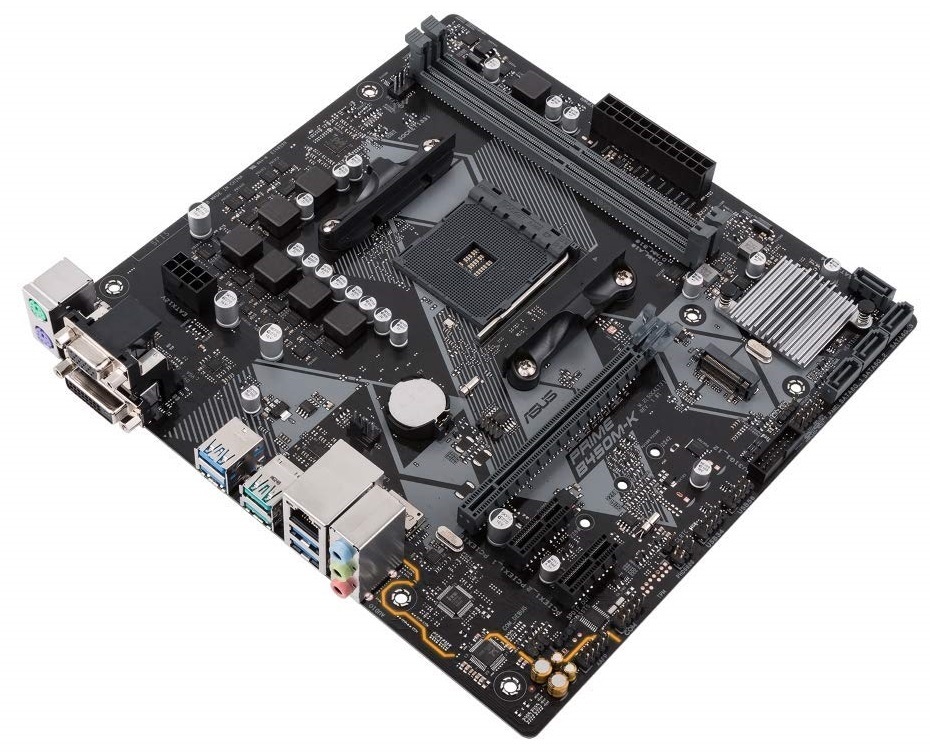

ASUS PRIME B450M-K mATX Motherboard

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

$141.00
or 4 payments of $35.25 with Learn more
In stock at Mighty Ape

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
  • Saturday using Saturday Delivery
    Mighty Ape can deliver this product on Saturday to most cities and towns in NZ. Learn more
  • Monday using standard courier delivery

Description

  • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2, Native M.2
  • LED illumination: Lighting control for both PCIe slot and audio trace paths

ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordably.

Specs

  • CPU: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
  • Chipset: AMD B450
  • Memory
    • AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
    • 2 x DIMM, Max. 32GB, DDR4 3200(O.C­.)/3000(O.C.)/2933(O­.C.)/2800(O.C­.)/2666/2400/2133 MHz Un-buffered Memory
    • Dual Channel Memory Architecture
    • ECC Memory (ECC mode) support varies by CPU.
  • Graphic
    • Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
    • Multi-VGA output support : DVI-D/D-Sub ports
      • Supports DVI-D with max. resolution 1920 × 1200 @ 60 Hz
      • Supports D-sub with max. resolution 1920 × 1200 @ 60 Hz
  • Expansion Slots
    • AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
      • 1 x PCIe 3.0/2.0 x16 (x16 mode)
    • AMD Ryzen™ with Radeon™ Vega Graphics Processor
      • 1 x PCIe 3.0/2.0 x16 (x8 mode)
    • AMD B450 chipset
      • 2 x PCIe 2.0 x1
  • Storage
    • AMD B450 chipset :
      • 4 x SATA 6Gb/s port(s), gray,
    • Support Raid 0, 1, 10
    • AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
      • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 4 mode)
  • LAN
    • Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
    • ASUS LAN Guard
  • Audio
    • Realtek® ALC887 8-Channel High Definition Audio CODEC
    • Audio Feature :
      • LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
      • Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
      • Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      • Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
      • Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    • AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
      • 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    • AMD B450 chipset :
      • 2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
    • AMD B450 chipset :
      • 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    • AMD B450 chipset :
      • 4 x USB 2.0/1.1 port(s) (4 at mid-board)
  • Special Features
    • ASUS 5X Protection III :
      • ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
      • ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
      • ASUS Overvoltage Protection: World-class circuit-protecting power design
      • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
      • ASUS DIGI+ VRM: 6 Phase digital power design
    • ASUS Exclusive Features :
      • AI Suite 3
      • Ai Charger
    • ASUS Quiet Thermal Solution :
      • Stylish Fanless Design Heat-sink solution
      • ASUS Fan Xpert
    • ASUS EZ DIY :
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
      • Multi-language BIOS
    • ASUS Q-Design :
      • ASUS Q-Slot
      • ASUS Q-DIMM

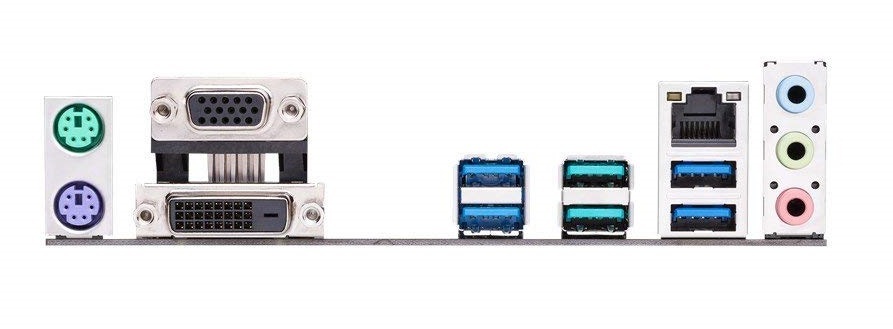

  • Back I/O Ports
    • 1 x PS/2 keyboard (purple)
    • 1 x PS/2 mouse (green)
    • 1 x DVI-D
    • 1 x D-Sub
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.1 Gen 2
    • 4 x USB 3.1 Gen 1 ,
    • 3 x Audio jack(s)
  • Internal I/O Ports
    • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 4 mode)
    • 1 x COM port(s) connector(s)
    • 4 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s) (1 × 4 -pin)
    • 1 x Chassis Fan connector(s) (1 × 4 -pin)
    • 1 x S/PDIF out header(s)
    • 1 × 24-pin EATX Power connector(s)
    • 1 × 8-pin ATX 12V Power connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x System panel(s)
    • 1 x Clear CMOS jumper(s)
    • 1 x Speaker connector
  • Accessories
    • User's manual
    • I/O Shield
    • 2 x SATA 6Gb/s cable(s)
    • 1 x M.2 Anchor
    • 1 x Supporting DVD
  • BIOS
    • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
  • Operating System
    • Windows® 10 64-bit
  • Form Factor
    • mATX Form Factor
    • 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Release date NZ
August 21st, 2018
Manufacturer code:
PRIME B450M-K
Warranty Period
1 year
Brand
Manufacturer
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
Socket AM4
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
2
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
3200
Maximum Memory Size (GB)
32
Number of VGA Ports
1
Number of DVI Ports
1
Number of DisplayPort Ports
0
Number of HDMI Ports
0
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
2
Number of M.2 Sockets
1
Supported M.2 Module Code(s)
  • 22110
  • 2242
  • 2260
  • 2280
Number of SATA Headers
4
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
4
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Number of USB Type-C Back Panel Ports
0
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
275x270x55
UPC
192876020432
Product ID
28325320
