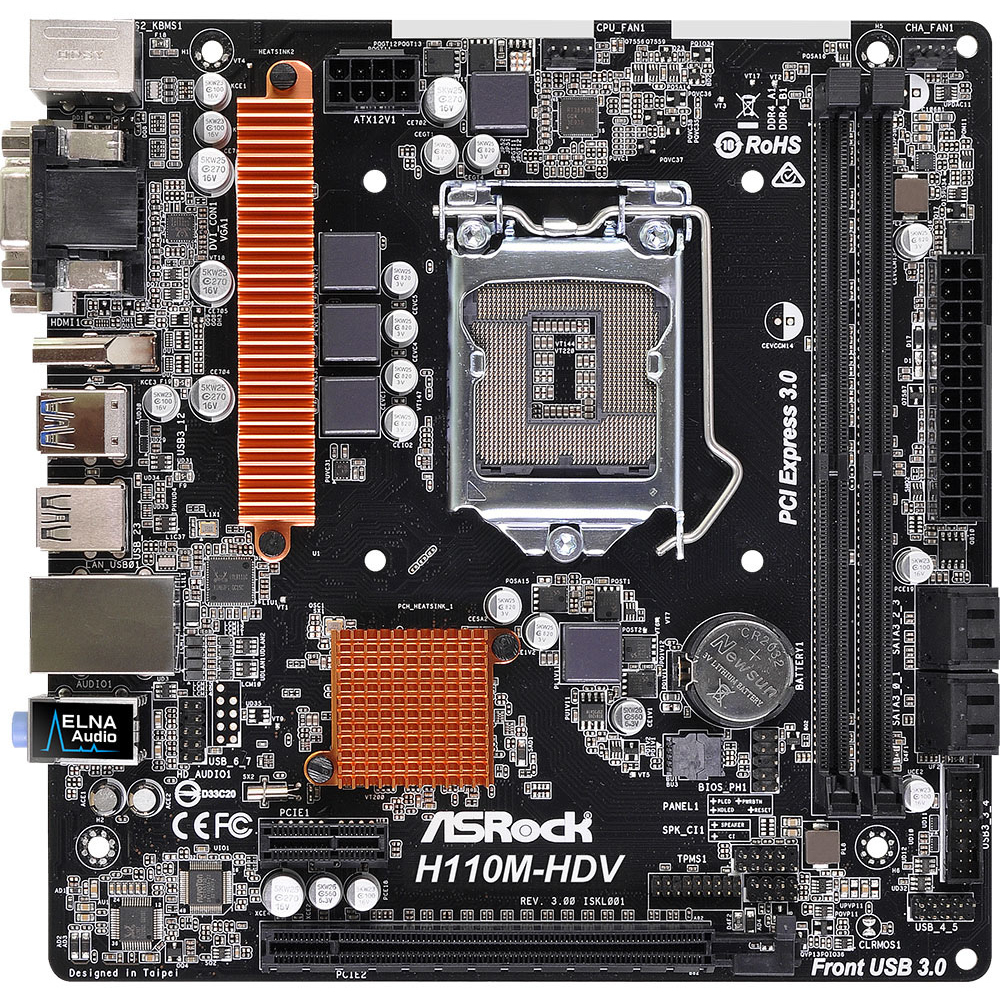

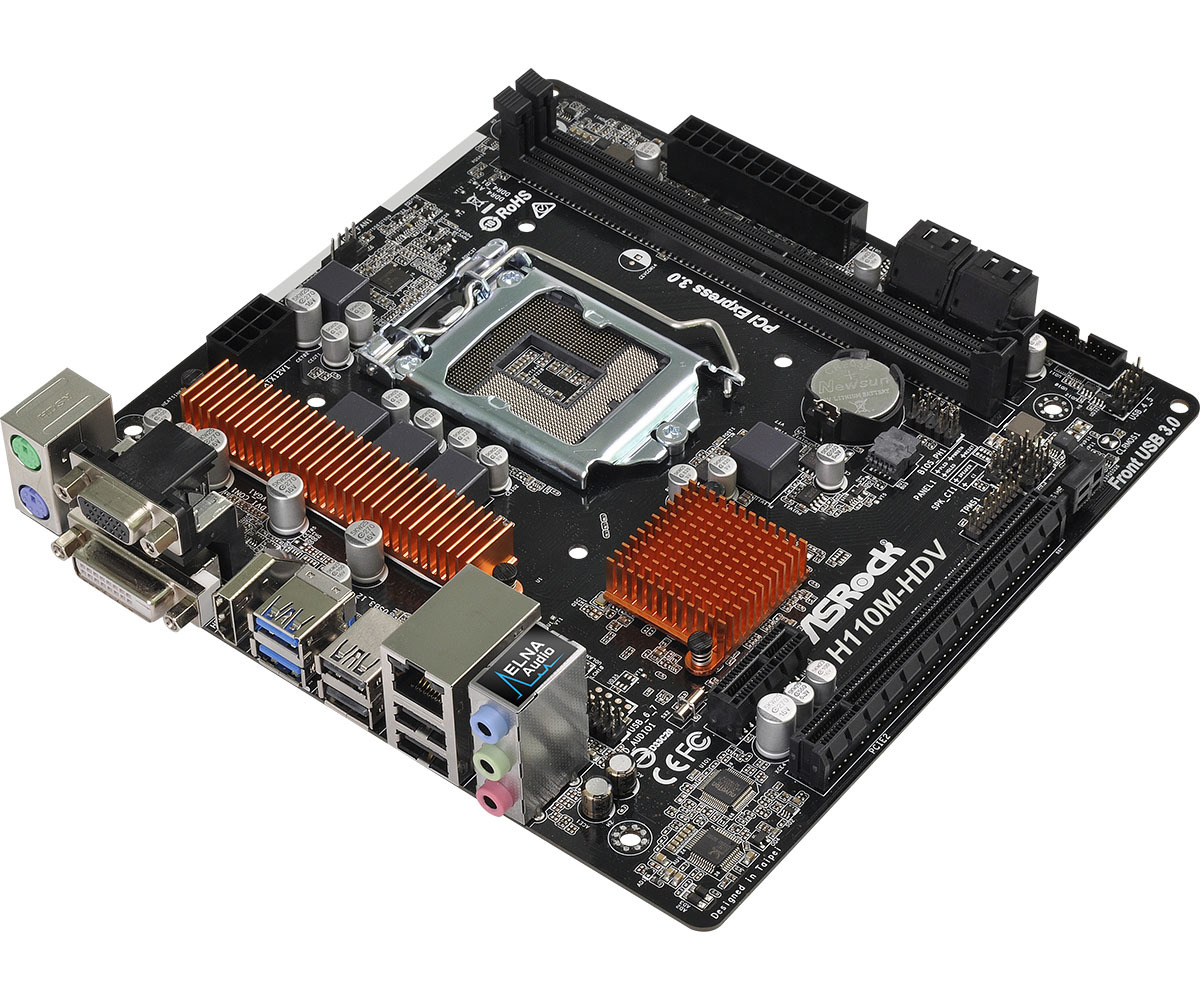

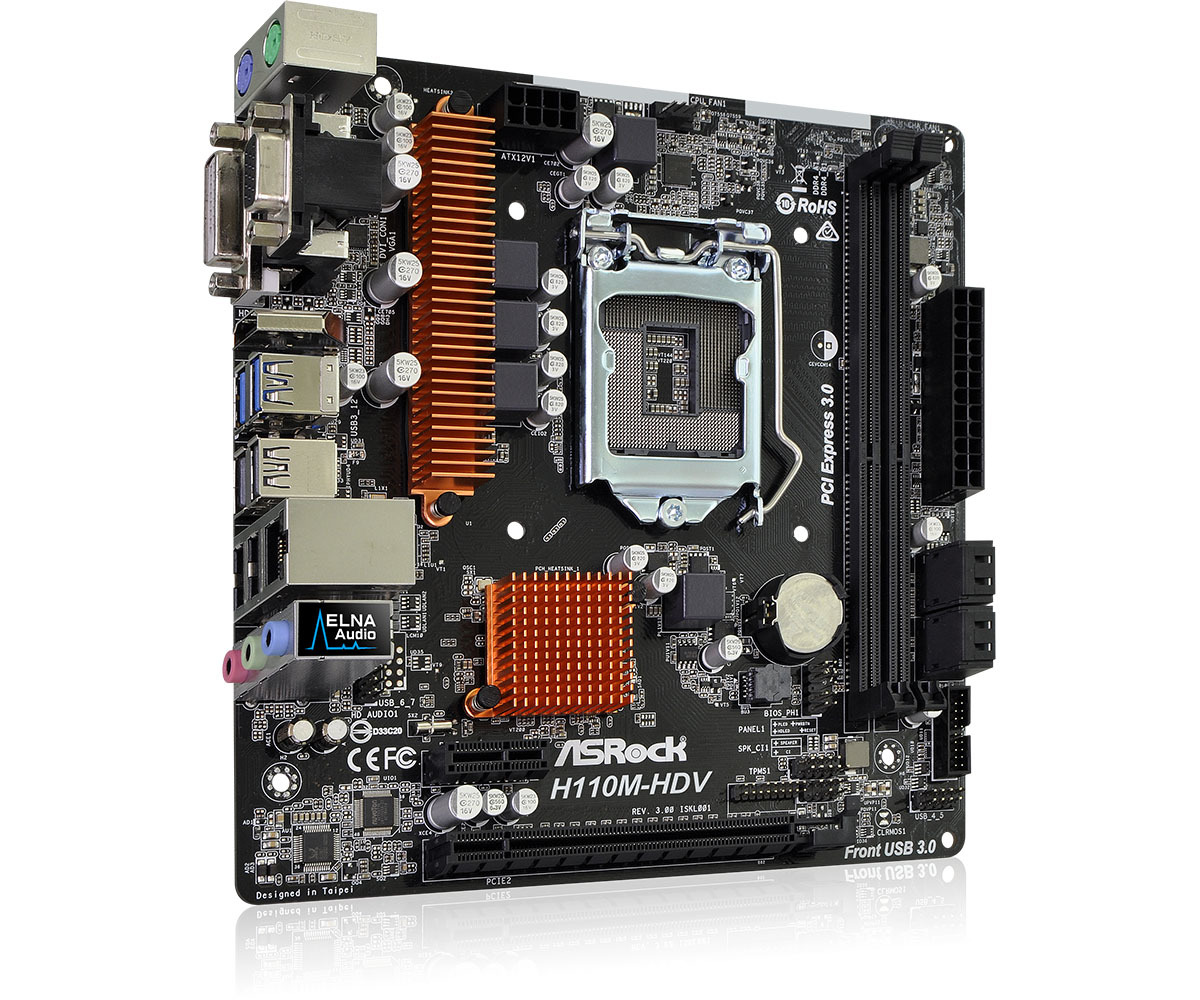

Features
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2133
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

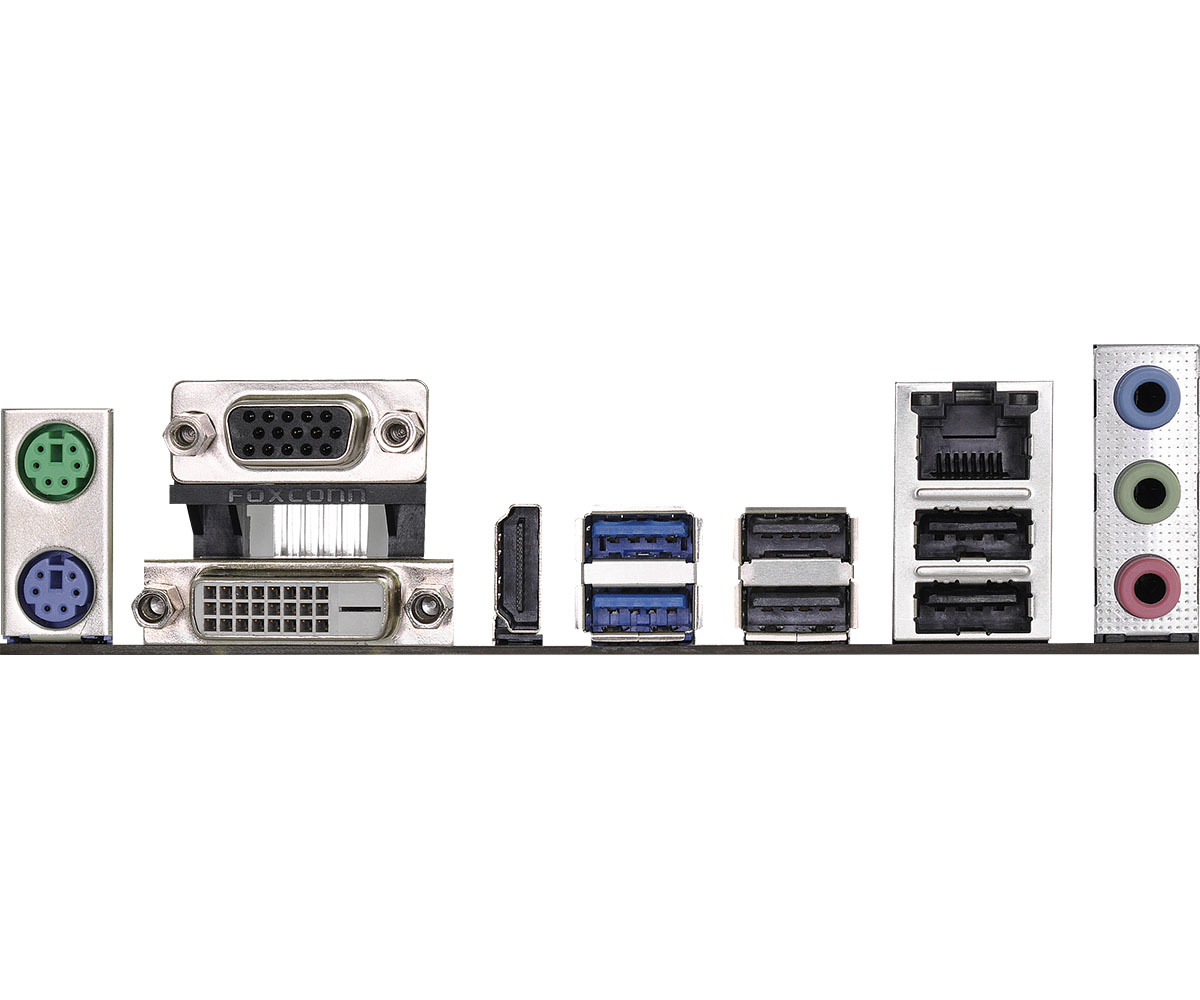

- Graphics Output Options: DVI-D, D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 4 USB 3.0 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death
of water, H2O, humidity or whatever you’d like to name it. And even though you
do not see the water, actually there may be lots of excessive moist in the air
killing your motherboard silently and slowly. No, your motherboard doesn’t
melt when in contact with water like the wicked witch of the west, but it dies
of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design
that reduces the gaps between the PCB layers to protect the motherboard against
electrical shorts caused by humidity.
High Density Glass Fabric PCBTraditional Glass Fabric PCB
UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the
system’s current status. You can check the most crucial information of your
system, such as CPU speed, DRAM frequency, SATA information, fan
speed, etc.
Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme memory performance!
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub +
DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this
motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock
applied ELNA audio capacitors on mainstream and entry-level motherboards!
Compared with traditional solid caps, the leakage current of ELNA audio caps is
merely 3uA. This is the key to reduce noise level significantly and satisfy even
the pickiest audiophiles.
**Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely
fast internet connections.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide
various apps and support software for users to download. You can also easily
optimize your system and keep your motherboard up to date with ASRock Live
Update & APP Shop.
Win 7 USB Patcher
Due to chipset limitation, when you want to install Windows® 7 on this MB, you
may need to use “Win 7 USB Patcher” to create a new ISO file, or check this
page for more details on how to install Windows® 7 OS.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power
surges, the excessive current may cause your system to malfunction immediately.
ASRock Full Spike Protection includes various technologies to prevent your
motherboard’s components from being damaged by these unexpected voltage
spikes.
USB Key
In a world where time is money, why waste precious time everyday typing
usernames to log in to Windows? Why should we even bother memorizing those foot
long passwords? Nobody has time for that! Just plug in the USB Key and let your
computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup
utility during POST. Therefore, ASRock Restart to UEFI technology allows users
to easily enter the UEFI setup utility automatically when turning on the PC next
time. It is designed for those who constantly need to enter the UEFI setup
utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG
(Online Management Guard) technology allows you to establish an internet curfew
or restrict internet access at specified times. Administrators are able to
schedule the starting and ending hours of internet access granted to
other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup
utility if you are having trouble with your personal computer. Users may try to
choose the category of the issue they have encountered, describe the problem in
detail, and then attach an optional picture or log file for our technical
support team.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from
our support CD, Easy Driver Installer is a handy tool in the UEFI that installs
the LAN driver to your system via an USB storage device, then downloads and
installs the other required drivers automatically through the internet.
Completely no CD or optical disk drive required!
- ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
- When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
- This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
