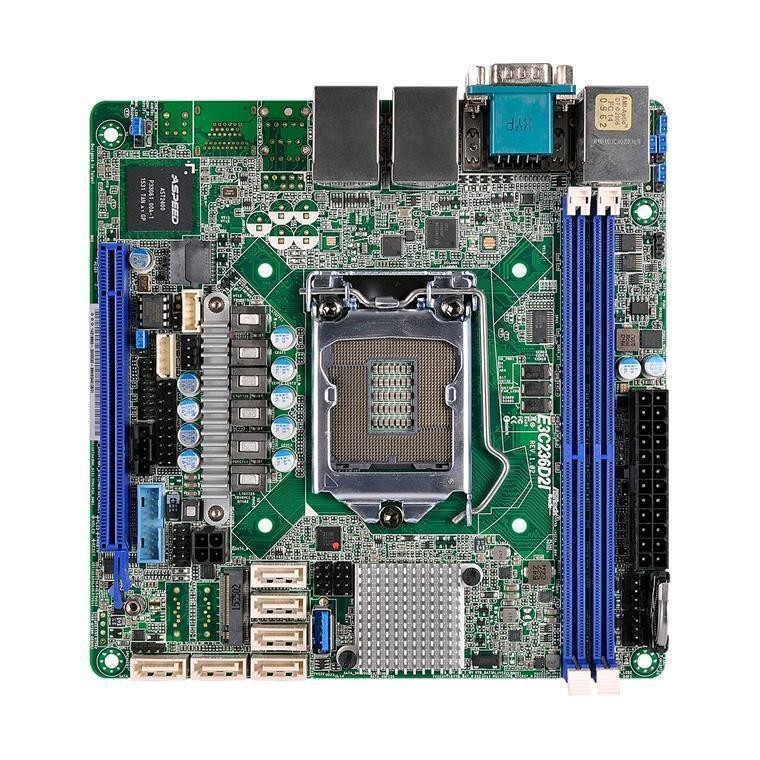

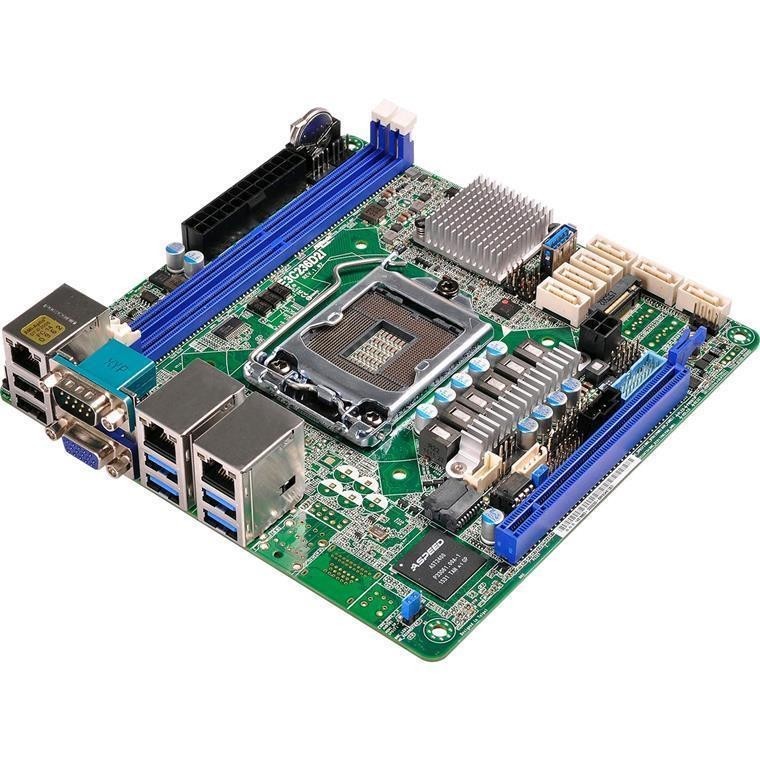

ASRock E3C236D2I Server Motherboard

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$414.99
In stock with NZ supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 8-12 days

Availability

Delivering to:

Estimated arrival:

  • Around 8-15 January using standard courier delivery
    Unlikely to arrive before Christmas

Description

E3C236D2I

  • Intel Xeon E3–1200 v5 Series Processors
  • Supports Dual channel DDR4 2133 ECC/NON-ECC UDIMM max 32 GB
  • Support 6 SATA3 by C236
  • Supports 1× PCIe 3.0 x16, 1× M.2 slot
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports Intel i210*1+Intel i219*1

Specifications

**Form Factor
Mini ITX

Dimensions
17.02cm x17.02 cm (6.7'' x 6.7'')

CPU
Intel Xeon E3–1200 v5 Series Processors

Chipset
Intel C236

Memory Capacity
2 x DDR4 DIMM slots

Memory Type
Dual Channel DDR4 memory technology
Supports DDR4 2133 ECC/NON-ECC UDIMM memory
Max. capacity of system memory: 32 GB (2 × 16GB Dual Rank DIMMs)

Memory Voltage
1.2V

Expansion Slot
1 x PCIe 3.0 × 16
1 x M.2 (share with SATA0)

SATA Controller
C236: 6× SATA3 6Gb/s (SATA0 share with M.2 connector), support RAID 0, 1, 5, 10

Networking
Gigabit LAN 10/100/1000 Mb/s

LAN Controller
2 x RJ45 GLAN by Intel i210+Intel i219
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
LAN1 supports NCSI

BMC Controller
ASPEED AST2400

IPMI Dedicated LAN
1 x Realtek RTL8211E for dedicated management GLAN

Networking Features
Watch Dog
NMI

Graphics Controller
ASPEED AST2400+ Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated

VRAM
DDR3 256MB (ASPEED)

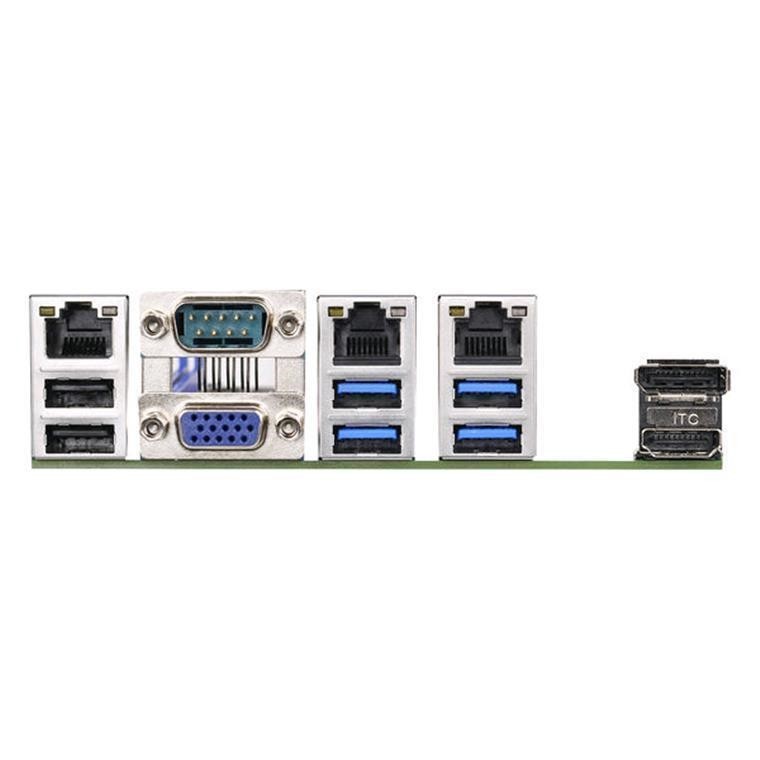

Rear Panel I/O
1 x D-Sub (From ASPEED AST2400)
2 x USB 2.0 Port
4 x USB 3.0 Port
RJ45: 2× GLAN(by Intel i210+Intel i219)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x RJ45 Dedicated IPMI LAN port
Serial Port – 1 (COM1)

Internal Connector
1 x M.2
1 x Auxiliary Panel Header (includes chassis intrusion, location button & LED, front LAN LED, event log LED)
1 x TR1
1 x TPM Header
1 x IPMB Header
3 x Fan Header (CPU/Front/Rear)
1 x ATX Power (24-pin) + (4-pin)
1 x USB 3.0 Header (2 ports)
1 x Type A USB 3.0 Port
1 x PSU SMB Header
1 x NMI Button
1 x Speaker
1 x BMC_SMBUS
1 x SGPIO
1 x PECI
3 x PMBUS Mode Jumpers
1 x ME/SPS Recovery
1 x Clear CMOS (short pin)

BIOS Type
128Mb AMI UEFI Legal BIOS

BIOS Features
Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8.0 Support
ASRock Rack Instant Flash

Hardware Monitor Temperature
CPU/PCH Temperature Sensing
MB/Card Side/TR1 Temperature Sensing

Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control

Voltage
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA, VCCM, V1.0M, VCCIO, VCCST_SFR, VPPM, +BAT, 3VSB, ATX+5VSB

Supported Operating System
Microsoft Windows Server 2008 R2 (64 bit)
Microsoft Windows SBS 2011 (64 bit)
Microsoft Windows Server 2012 (64 bit)
Microsoft Windows Server 2012 R2 (64 bit)
Microsoft Windows Server Threshold (64 bit)
Linux RedHat Enterprise Linux Server 6.6 (64 bit) / 7.0 (64 bit)
Linux SUSE Enterprise Linux Server 11 SP3 (64 bit) / 12.0 (64 bit)
Linux Ubuntu 14.04 (64 bit) / 14.10 (64 bit)

Environment Temperature
Operation temperature: 10 C ~ 35 C / Non operation temperature: –40 C ~ 70 C

Release date NZ
August 9th, 2017
Manufacturer code:
E3C236D2I
Brand
Manufacturer
UPC
4717677328820
Product ID
26877069
