• Easy Installation
• Hi-Speed Wi-Fi – Up to 1900Mbps
• 802.11ac Dual Band
• Backward Compatibility
• Beamforming Technology
• Ultimate Range

802.11ac – The Next Generation of Wi-Fi
TP-LINK's Archer T9E comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speed. With 1300Mbps wireless speeds over the crystal clear 5GHz band or 600Mbps over the 2.4GHz band, the Archer T9E is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

AC1900 Wireless Speed
The 5GHz 1300Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 600Mbps Wi-Fi for normal use such as web surfing.

The Best of Both Bands

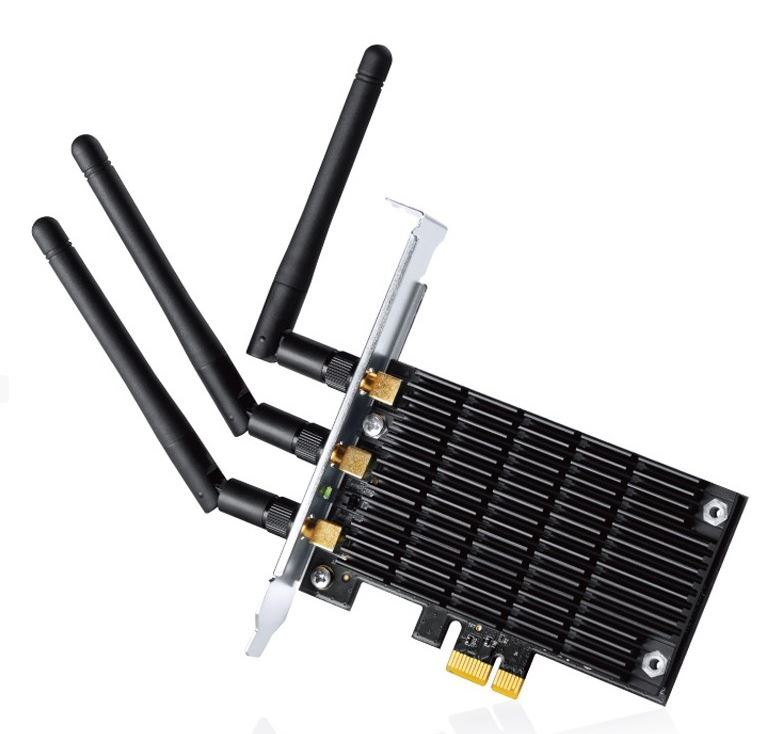

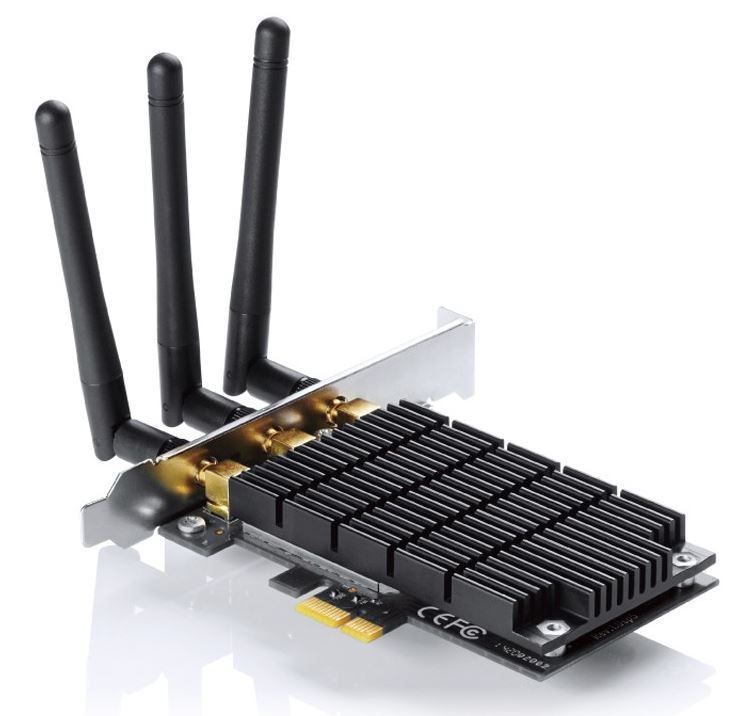

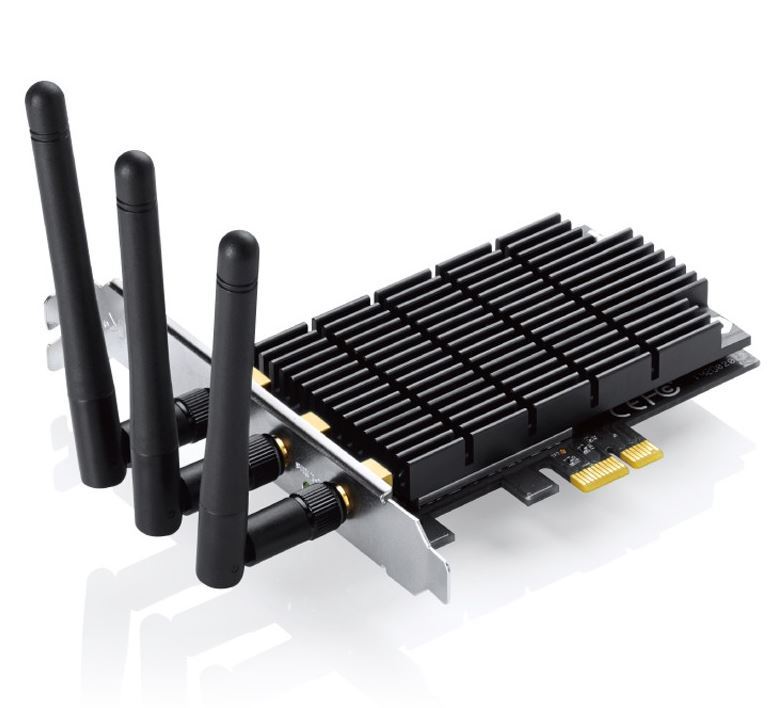

TP-LINK's Archer T9E is an AC1900 Wireless Dual Band PCI Express Adapter, giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their PC's wireless capabilities to operate with new 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.

Beamforming Technology for Efficient Wi-Fi
Archer T9E utilizes beamforming technology to receive more directional Wi-Fi signals for improved performance.

WPA/WPA2 Encryptions – Advanced Security
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

• Simply slot the adapter into any free PCI-E socket in your desktop PC and connect to an available Wi-Fi network
• Maximum wireless speeds of up to 1900Mbps with 1300Mbps at 5GHz or 600Mbps at 2.4GHz band, ideal for HD streaming, online gaming and large file downloads
• Supports 802.11ac – Wi-Fi technology that is 3 times faster than 802.11n
• 3 external antennas provide ultimate Omni-Directional wireless coverage, delivering a stable connection to your Wi-Fi network
• Utilizes Beamforming technology to receive more directional Wi-Fi signals, enhancing the reliability of the wireless connection
• Heat Sink dissipates heat to help increase performance and improve stability
• Selectable 2.4GHz and 5GHz bands to avoid wireless signal interference
• Supports routers utilizing 802.11 a/b/g/n Wi-Fi standards
• Bundled management utility offers easy administration to control your Wi-Fi network

Hardware Features

• Interface: PCI Express
• Dimensions (WxDxH): 115.2×120.8×21.5 mm
• Antenna Type: Omni Directional

Wireless Features

Wireless Standards:

• IEEE 802.11ac, IEEE 802.11a,
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b:

Frequency:

• 5GHz
• 2.4GHz

Signal Rate:
5GHz:

• 11ac: Up to 1300Mbps(dynamic)
• 11a: Up to 54Mbps(dynamic)

2.4GHz:

• 11n: Up to 600Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)

Reception Sensitivity:
5GHz:

• 11a 6Mbps: –85dBm
• 11a 54Mbps: –68dBm
• 11ac HT20: –59dBm
• 11ac HT40: –54dBm
• 11ac HT80: –51dBm

2.4GHz

• 11b 11Mbps: –80dBm
• 11g 54Mbps: –68dBm
• 11n HT20: –64dBm
• 11n HT40: –61dBm
• Transmit Power: <20dBm (EIRP)
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1×
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Others

• Certification: CE, FCC, RoHS

Package Contents:

• Wireless Adapter Archer T9E
• Resource CD
• Quick Installation Guide

System Requirements: Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)

Environment:

• Operating Temperature: 0°C~40°C
• Storage Temperature: –40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
