8ware: Mini DisplayPort to DVI/HDMI/VGA M/F Adapter

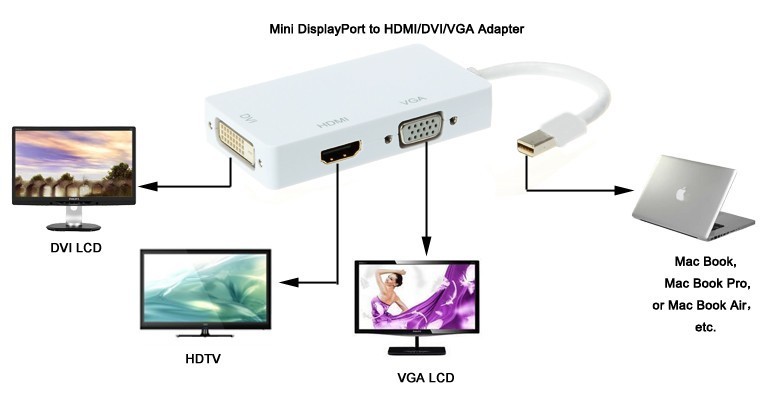

This adapter seamlessly connects Mac Book, Mac Book Pro, or Mac Book Air with a Mini DisplayPort to high definition displays with HDMI, DVI or VGA input port. Using this adapter, you no need to buy 3 separate Mini DisplayPort adapters. It not only saves your money but also solves the trouble of plugging in and out, because there is only one Mini Display port in Mac notebook.

Note: You can only plug one port among three output ports at one time.

Features

• Support Mini DisplayPort 1.1a Dual-mode input.
• The HDMI can support audio output for iMac (Late 2009) and MacBook Pro (Mid 2010)
• Support HDMI/DVI/VGA output with the max resolution of 1920×1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color.
• Automatic detect the display by plugging and unplugging it.
• Powered from Mini DisplayPort source.

Specifications:

• Input Signal: Mini DisplayPort 1.1a
• Output Video: HDMI/DVI/VGA
• Input/Output Connector Input: Mini DisplayPort Male 20pin
• Output: HDMI Female Type A 19pin DVI Female (24+1), VGA Female 15Pin
• Vertical Frequency Range: 50/60Hz
• Video Amplifier Bandwidth: 2.25Gbps/225MHz
• Resolutions: HDMI/DVI/VGA 480i/480p,576­p,720p,1080i/1080p
• Operating Temperature: 0? to +70?
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Temperature: –10? to +80?
• Storage Humidity: 5% to 90 % RH (no condensation)
• External Power Supply: No external power needed
• Power consumption (Max): 700mW
