Computer Components:

8GB Kingston 2666Mhz DDR4 Non-ECC CL19 Dimm

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$200.00
In stock with NZ supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 4-6 days

Availability

Delivering to:

Estimated arrival:

  • Around 5-12 April using standard courier delivery

Description

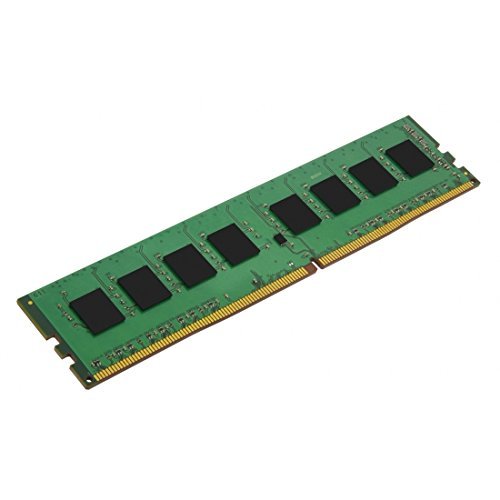

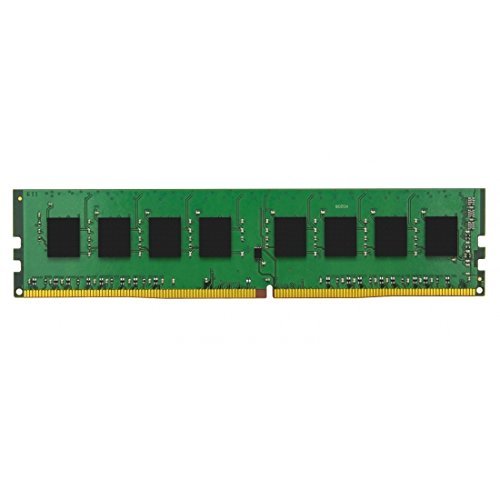

This document describes ValueRAM's KVR26N­19S8/8 is a 1G x 64-bit (8GB) DDR4–2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA
omponents. The SPD is programmed to JEDEC standard latency DDR4–2666 timing of 19–19–19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES:

  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP – 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
Release date NZ
June 21st, 2018
Manufacturer code:
KVR26N19S8/8
Brand
Product ID
28220277
