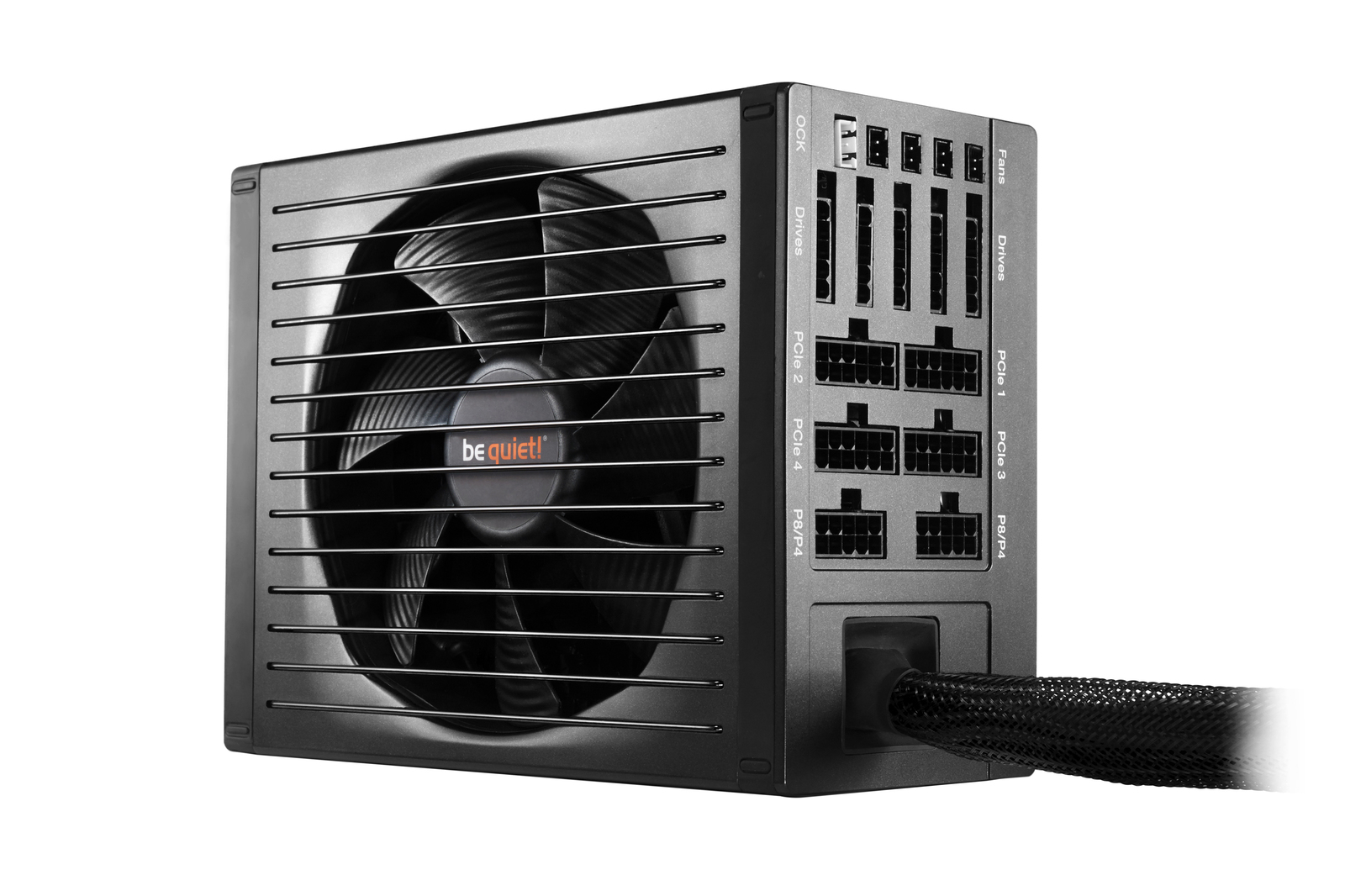

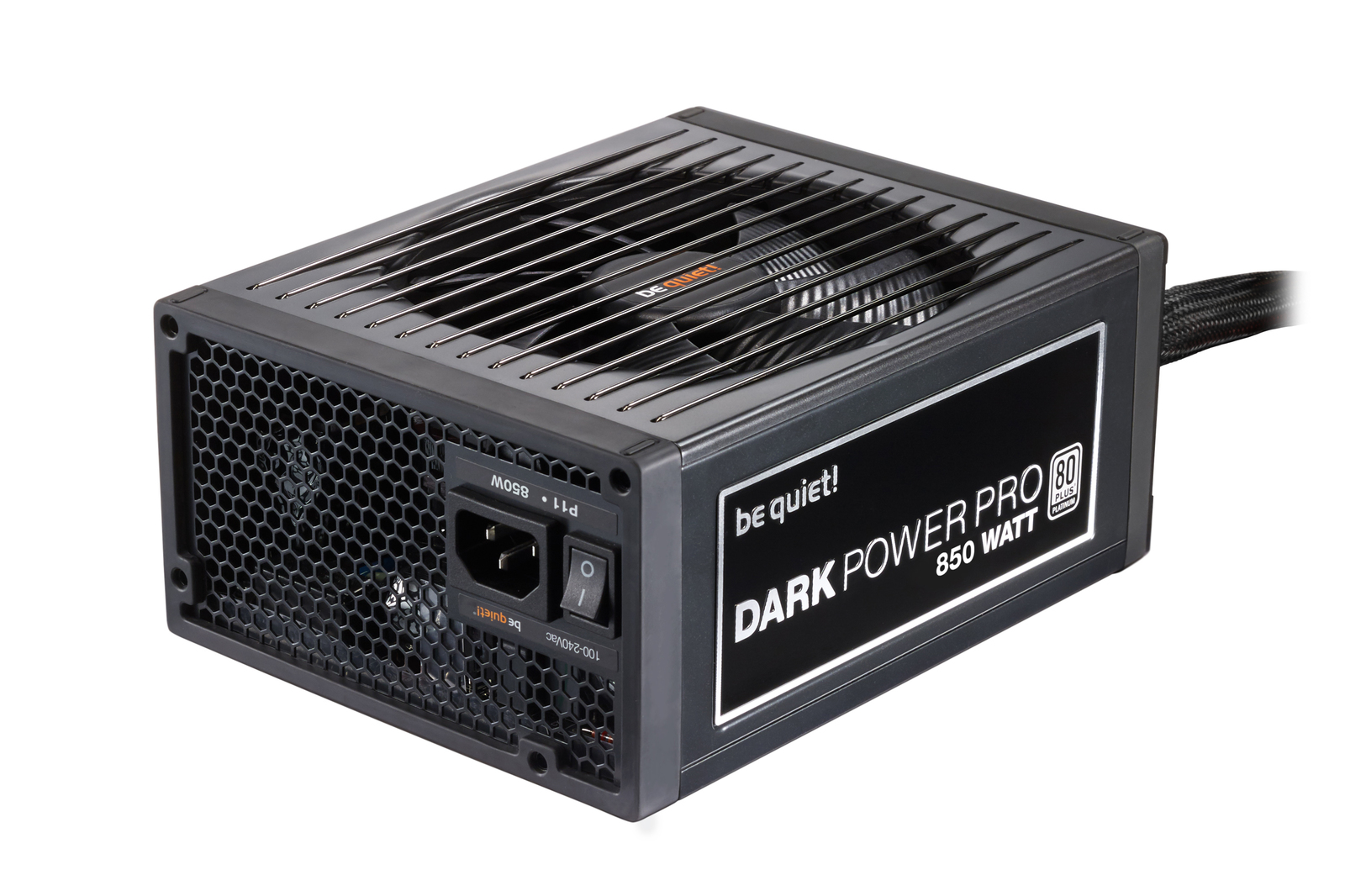

850W be quiet! Dark Power Pro 11

Legendary Silence, Cutting Edge Performance

It is a fact of the modern world that high technology requires constant refinement and unending improvement — and that is even truer for those who would be leaders. Dark Power Pro power supplies are renowned as the world’s quietest and most efficient high-performance PSUs. The Dark Power Pro 11 850W model takes that a step further with a power conversion topology that delivers 80PLUS® Platinum performance, add to that an unparalleled array of enhancements that augment this unit’s compati­bility, convenience of use, reliability, and safety, and the result is the most technologically-advanced power supply be quiet! has ever built.

FEATURES

• 80PLUS® Platinum certification and up to 94% power conversion efficiency
• Virtually inaudible operation thanks to a broad array of optimizations, including the use of a be quiet! SilentWings® 3 135mm fan
• SilentWings® 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration

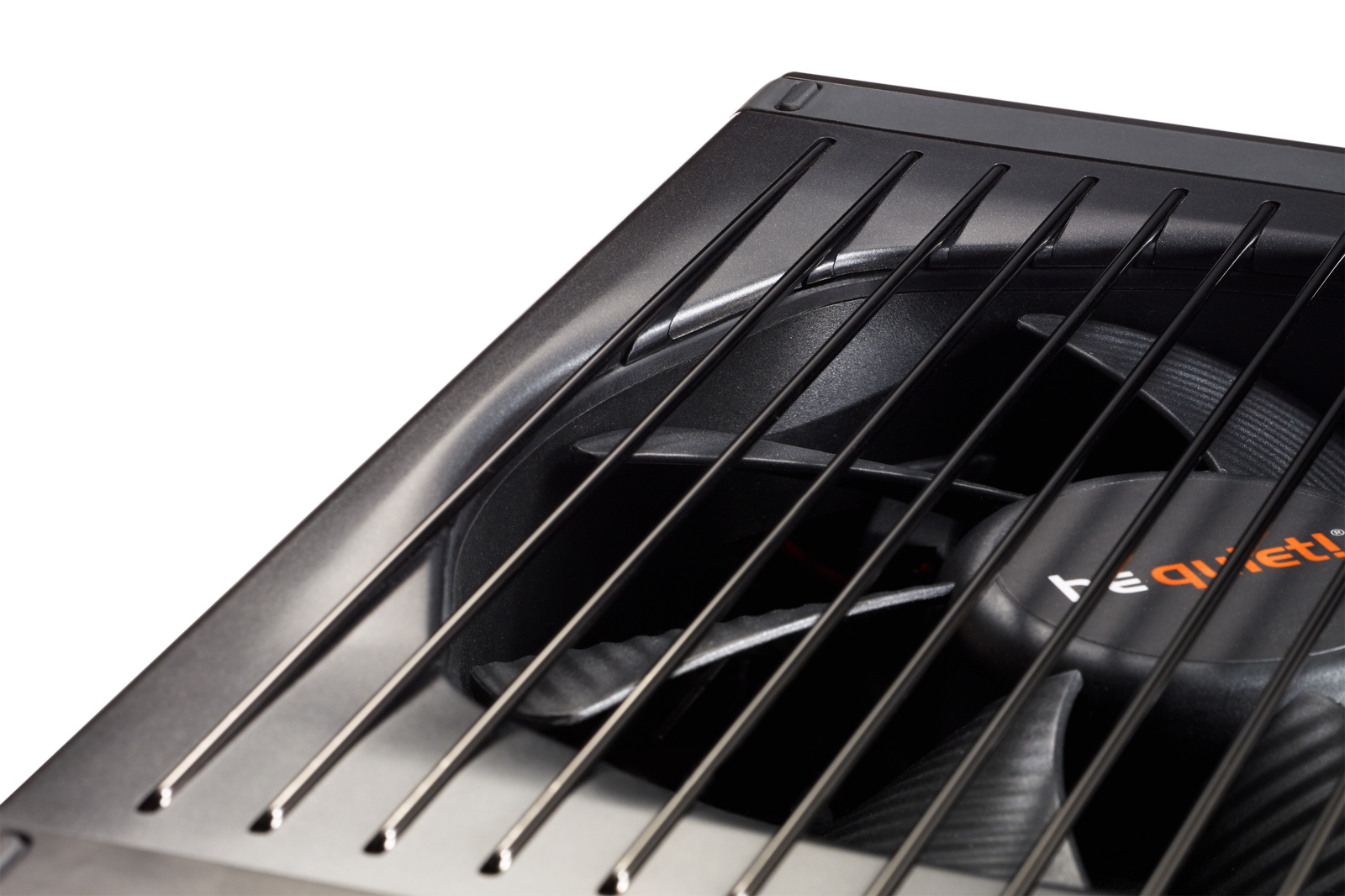

• The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
• 850 Watts of continuous power provide intensive power reserves for demanding computing applications
• Overclocking key allows switchover between quadruple independent 12V-rail mode and high-performance single-rail operation
• Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases
• Product conception, design and quality control in Germany

SPECIFICATIONS

General Data

• Continuous power (W) 850
• Peak power (W) 950
• Form factor ATX 12V Version 2.4
• Form factor EPS 12V Version 2.92
• Modular cable management ✓
• Topology Full bridge + LLC + SR + DC/DC
• Voltage (Vac) 100 – 240
• Frequency (Hz) 50 – 60
• Input current (A) 13 / 7
• PFC active
• Power factor at 100% load >0.99
• Compliant to Intel C6/C7 ✓
• Compliant to Intel C6 mode ✓
• Power consumption in standby (W) <0.10
• Average life time (h / 25°C) 100.000
• Operating temperature up to (°C) 40

Output

• 12V rails (multi-rail operation) 4
• 12V single rail operation –
• Overclocking key –
• +3.3V (A) 25
• +5V (A) 25
• +12V1 (A) 30
• +12V2 (A) 30
• +12V3 (A) 35
• +12V4 (A) 35
• +12V5 (A) –
• +12V6 (A) –
• -12V (A) 0.5
• +5Vsb (A) 3
• Max. combined power 12V (W) 840
• Max. combined power 3.3V + 5V (W) 140
• Hold-up time (ms @ 100%) 20,84

Fan / Cooling technology

• Fan type be quiet! SilentWings
• +SilentWings ✓
• Motor technology 6-pole fan motor
• Bearing technology FDB
• Fan size (mm) 135
• Max. fan speed (rpm), temperature-dependent 1,500
• Temperature control for case fans –
• dB(A) at 20% load 10.4
• dB(A) at 50% load 10.4
• dB(A) at 100% load 20.1

Protection

• OCP (over current protection) ✓
• OVP (over voltage protection) ✓
• UVP (under voltage protection) ✓
• SCP (short circuit protection) ✓
• OTP (over temperature protection) ✓
• OPP (over power protection) ✓

Safety certification

• CE ✓
• CB ✓
• TÜV ✓
• Nemko (N) –
• Semko (S) –
• Fimko (FI) –
• Demko (D) –
• FCC ✓
• cRUus –
• cTUVus ✓
• RCM (Australia) ✓
• BSMI –
• CU (Russia) ✓

Eco / Efficiency

• 80PLUS certification Gold
• Efficiency (%) at 230V, 20% load 91.3
• Efficiency (%) at 230V, 50% load 93.4
• Efficiency (%) at 230V, 100% load 91.2

Environmental directives

• ENERGY STAR 6.0
• ErP ✓
• WEEE ✓
• RoHS ✓

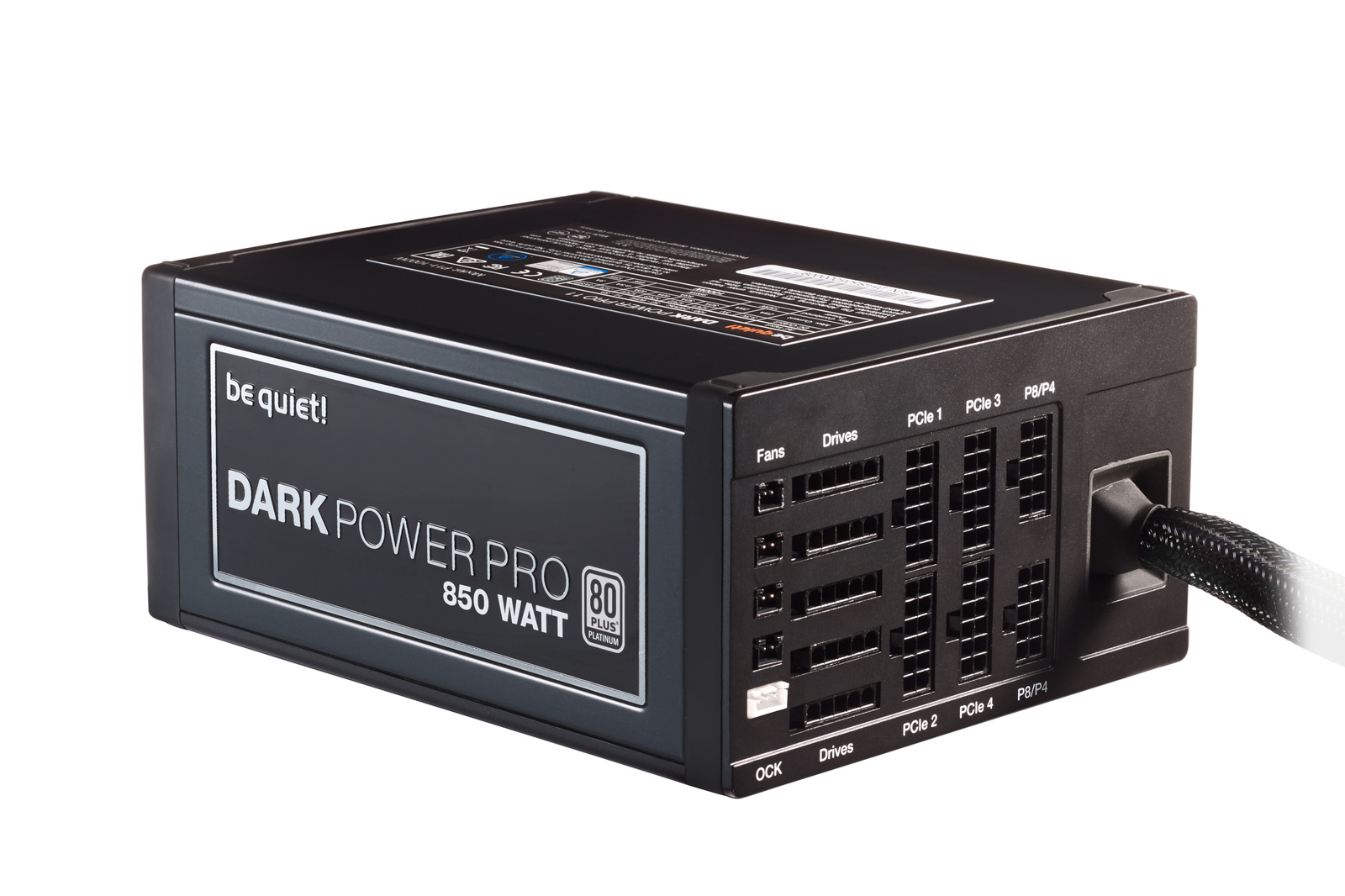

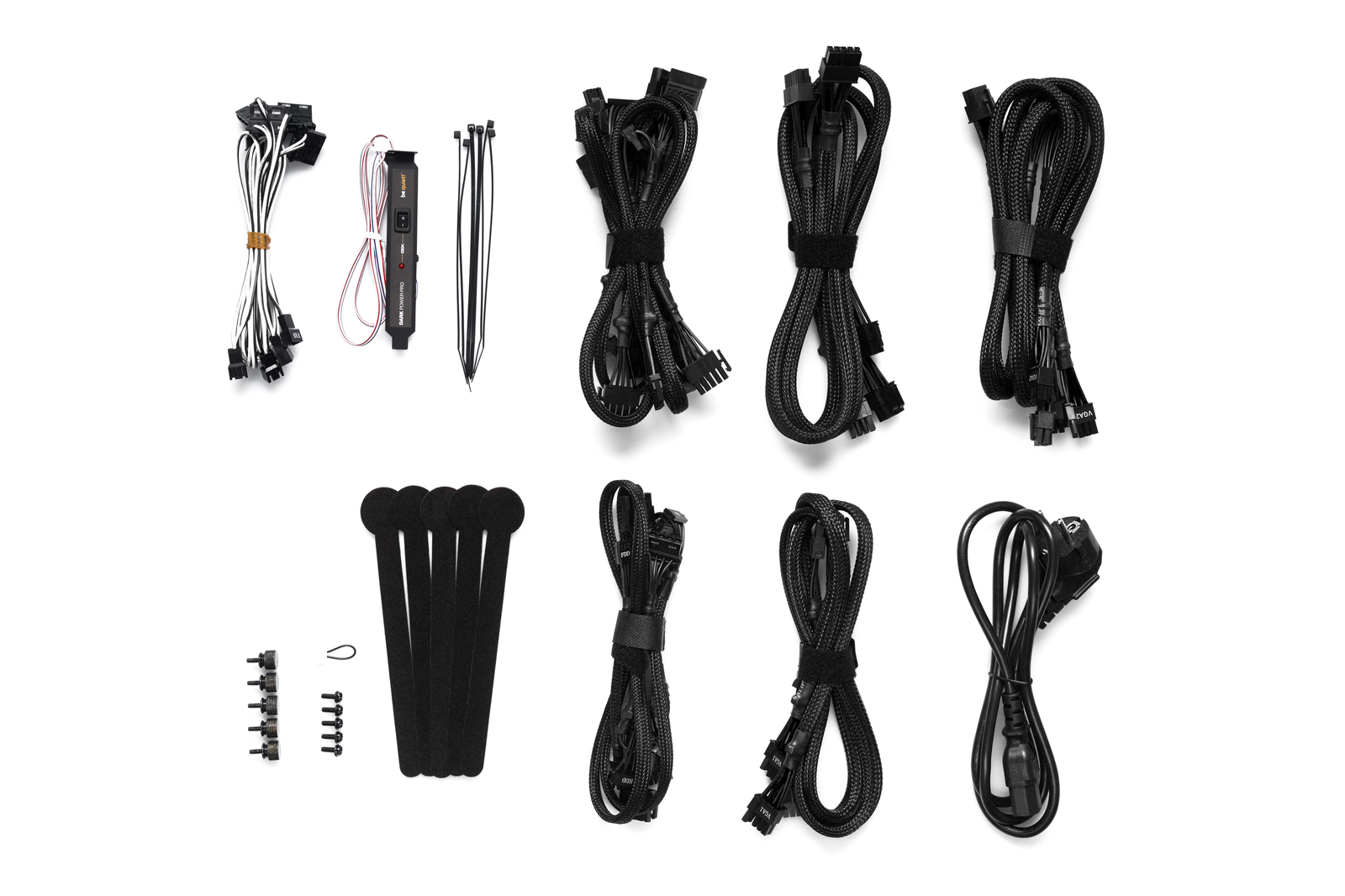

Cable Management / Connectors

• Modular cable management ✓
• Sleeved cables ✓
• Flat Cables –
• Cable length to mainboard (cm) 60
• Cable length to first connector (cm) 60
• Maximum cable length (cm) 120
• All-in-one cable (SATA/PATA/FDD) ✓
• No. of cables 19
• ATX-Mainboard (20+4 pin) 1
• P8 (CPU) 1
• P4+4 (CPU) 1
• P4 (CPU) –
• PCI-E 6 pin (GPU) 1
• PCI-E 6+2 pin (GPU) 6
• PATA 4 pin 7
• SATA 15-pin (HDD, Drives) 8
• FDD (Floppy) 2
• Mainboard Connector (PATA 4 pin) 1
• External fan connectors 4

GPU compatibility

• Multi-GPU ready ✓
• NVIDIA SLI readyTM certified ✓
• AMD CrossFireX certified ✓

Casing

• Dimensions without cable (L x W x D), (mm) 180 × 150 × 86
• Weight incl. fixed cables (kg) 2.02
• Color black
