80mm Noctua NF-A8 PWM - 4-Pin Fan

Sorry, this product is not currently available to order

Here are some other products you might consider...

80mm Noctua NF-A8 PWM - 4-Pin Fan

80x80x25mm/2200/1750rpm

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

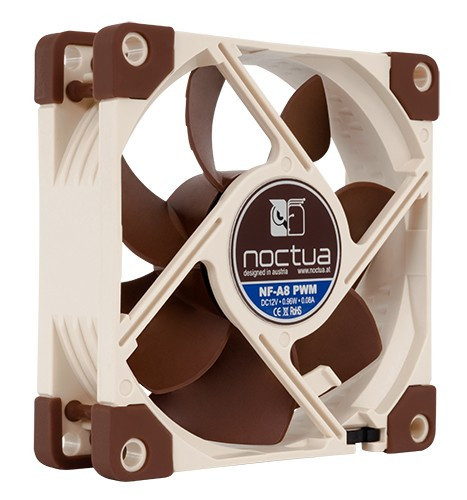

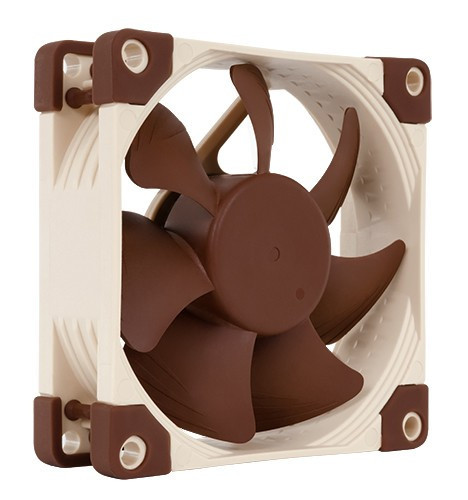

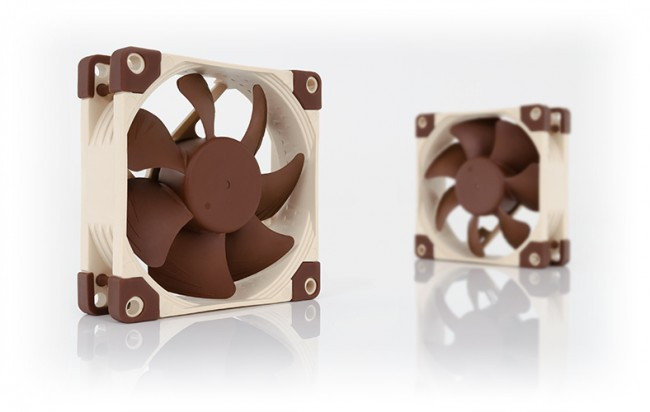

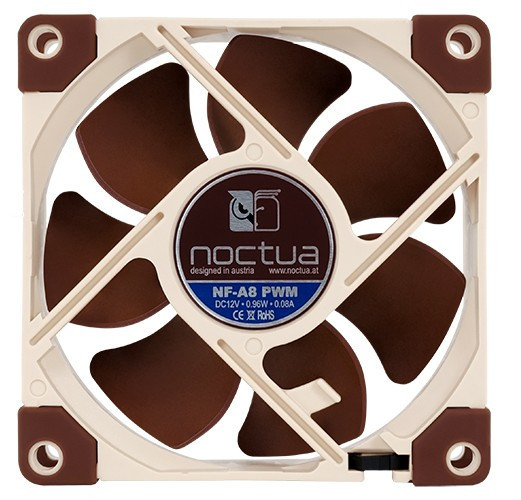

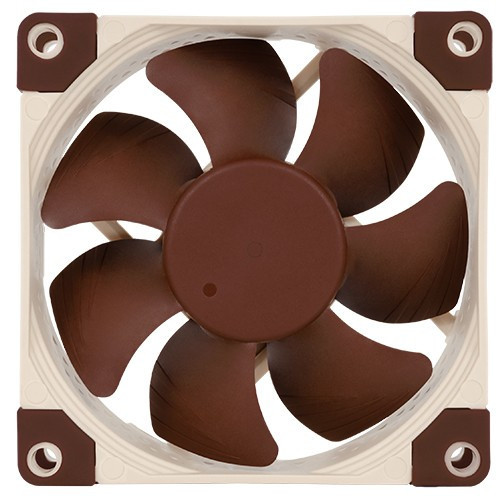

80mm Noctua NF-A8 PWM 200/1750rpm 4-Pin Fan

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Features:

  • Succeeding the award-winning NF-R8
  • Flow Acceleration Channels
  • AAO Frame
  • Stepped Inlet Design
  • Inner Surface Microstructures
  • Integrated Anti-Vibration Pads
  • SSO2 Bearing
  • Custom designed PWM IC with SCD

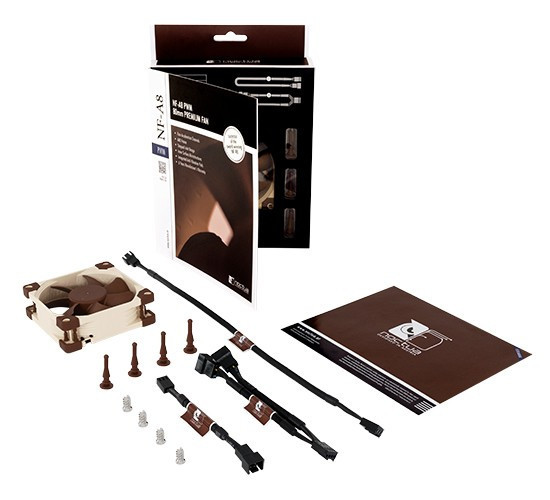

  • Low-Noise Adaptor
  • Extensive cabling options
  • 6 years manufacturer’s wa­rranty

Specifications:

  • Size: 80×80×25 mm
  • Connector: 4-pin PWM
  • Bearing: SSO2
  • Blade Geometry: A-Series with Flow Acceleration Channels
  • Frame Technology: AAO (Advanced Acoustic Optimisation)
  • Rotational Speed (+/- 10%): 2200 RPM
  • Rotational Speed with L.N.A. (+/- 10%): 1750 RPM

    *Min. Rotational Speed (PWM, +/-20%): 450 RPM

  • Airflow: 55,5 m³/h
  • Airflow with L.N.A.: 43,9 m³/h
  • Acoustical Noise: 17,7 dB(A)
  • Acoustical Noise with L.N.A.: 13,8 dB(A)
  • Static Pressure: 2,37 mm H2O
  • Static Pressure with L.N.A.: 1,54 mm H2O
  • Max. Input Power: 0,96 W
  • Max. Input Current: 0,08 A
  • Voltage: 12 V
  • MTBF: > 150.000 h
  • Warranty: 6 years
Release date NZ
July 28th, 2017
Manufacturer code:
NF-A8 PWM
Brand
Manufacturer
Box Dimensions (mm)
152x210x31
UPC
842431014436
Product ID
26858589
