Description

800W Be Quiet! Straight Power 10 CM

Be quiet! Straight Power 10 800W CM provides a new level of silent performance for systems that demand whisper-quiet operation without facing the slightest compromise in power quality. Our German team has updated and designed even more premium features into this generation of the Straight Power series, which make the Straight Power 10 800W CM more silent than ever and a clear ‘Best Choice’ for new systems and as a replacement in existing systems.

FEATURES

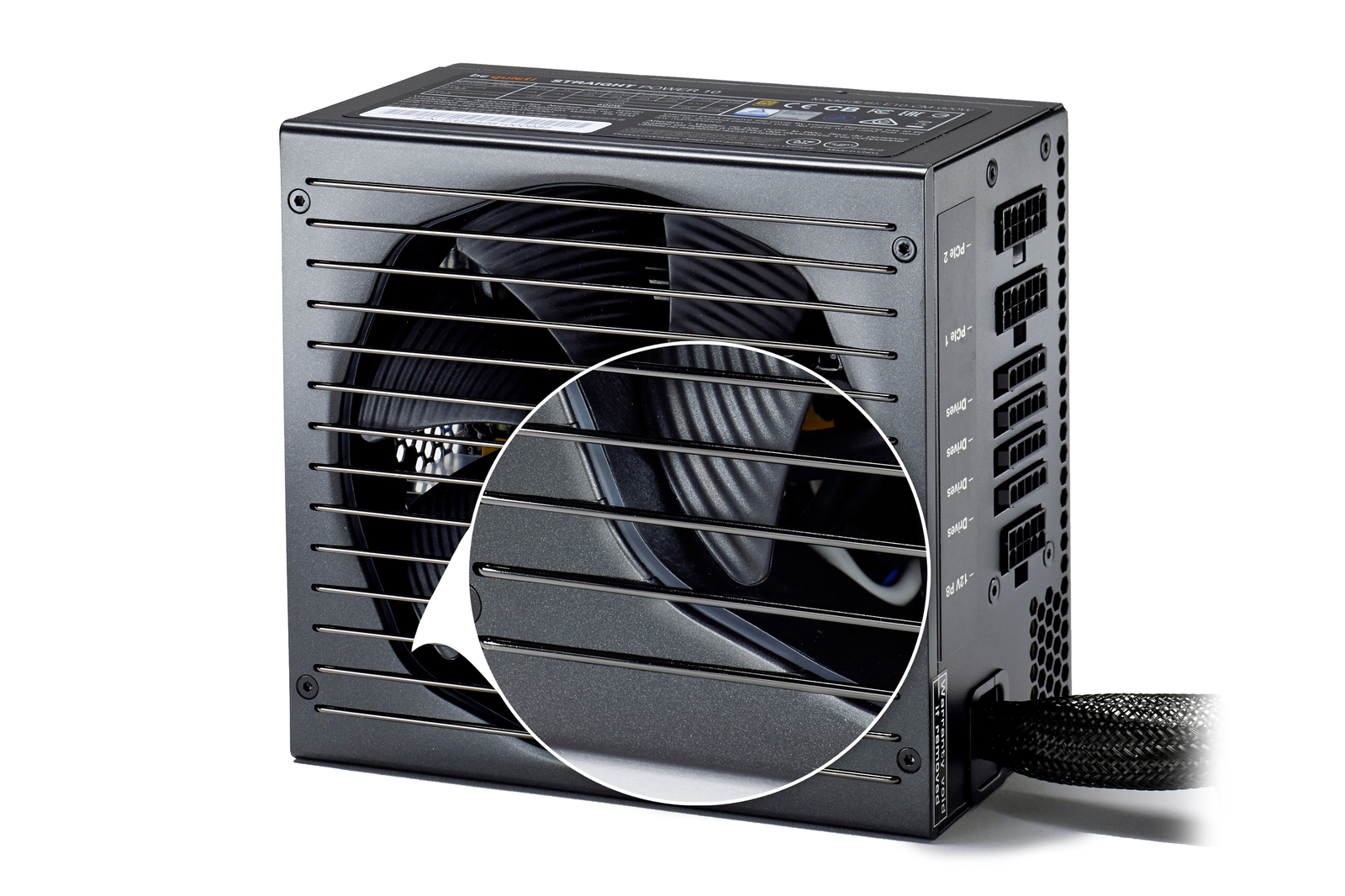

  • Virtually inaudible operation achieved through a broad array of meticulous optimizations, including the use of a be quiet! SilentWings® 3 135mm fan
  • SilentWings® 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration
  • The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
  • 800 Watts of continuous power with stable four 12V-rail design
  • 80PLUS® Gold certification and up to 93% power conversion efficiency
  • Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases
  • NVIDIA SLI Ready and AMD CrossFireX certifications allow you to build powerful Multi-GPU systems with confidence
  • Product conception, design and quality control in Germany

SPECIFICATIONS

General Data

  • Continuous power (W) 800
  • Peak power (W) 870
  • Form factor ATX 12V Version 2.4
  • Form factor EPS 12V Version 2.92
  • Modular cable management
  • Topology Active Clamp + SR + DC/DC
  • Voltage (Vac) 100 – 240
  • Frequency (Hz) 50 – 60
  • Input current (A) 12 / 6
  • PFC active
  • Power factor at 100% load >0.99
  • Compliant to Intel C6/C7
  • Compliant to Intel C6 mode
  • Power consumption in standby (W) <0.16
  • Average life time (h / 25°C) 100.000
  • Operating temperature up to (°C) 40

Output

  • 12V rails (multi-rail operation) 4
  • 12V single rail operation –
  • Overclocking key –
  • +3.3V (A) 25
  • +5V (A) 25
  • +12V1 (A) 20
  • +12V2 (A) 20
  • +12V3 (A) 24
  • +12V4 (A) 24
  • +12V5 (A) –
  • +12V6 (A) –
  • -12V (A) 0.5
  • +5Vsb (A) 3
  • Max. combined power 12V (W) 780
  • Max. combined power 3.3V + 5V (W) 160
  • Hold-up time (ms @ 100%) 17

Fan / Cooling technology

  • Fan type be quiet! SilentWings
  • +SilentWings
  • Motor technology 6-pole fan motor
  • Bearing technology FDB
  • Fan size (mm) 135
  • Max. fan speed (rpm), temperature-dependent 2,100
  • Temperature control for case fans –

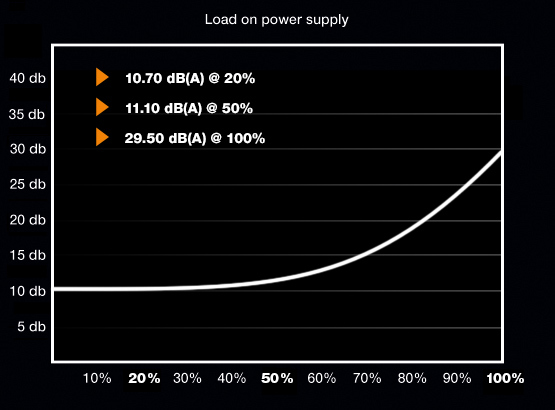

  • dB(A) at 20% load 10,7
  • dB(A) at 50% load 11.1
  • dB(A) at 100% load 29.5

Protection

  • OCP (over current protection)
  • OVP (over voltage protection)
  • UVP (under voltage protection)
  • SCP (short circuit protection)
  • OTP (over temperature protection)
  • OPP (over power protection)

Safety certification

  • CE
  • CB
  • TÜV
  • Nemko (N) –
  • Semko (S) –
  • Fimko (FI) –
  • Demko (D) –
  • FCC
  • cRUus –
  • cTUVus
  • RCM (Australia) –
  • BSMI
  • CU (Russia) –

Eco / Efficiency

  • 80PLUS certification Gold
  • Efficiency (%) at 230V, 20% load 91.3
  • Efficiency (%) at 230V, 50% load 93.4
  • Efficiency (%) at 230V, 100% load 91.2

Environmental directives

  • ENERGY STAR 6.0
  • ErP
  • WEEE
  • RoHS

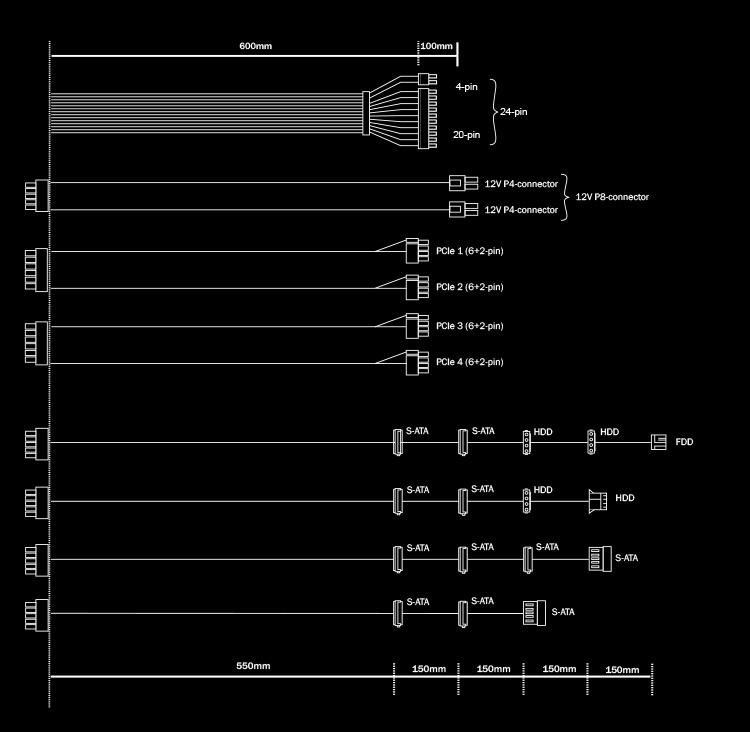

Cable Management / Connectors

  • Modular cable management
  • Sleeved cables
  • Flat Cables –
  • Cable length to mainboard (cm) 60
  • Cable length to first connector (cm) 55
  • Maximum cable length (cm) 115
  • All-in-one cable (SATA/PATA/FDD)
  • No. of cables 8
  • ATX-Mainboard (20+4 pin) 1
  • P8 (CPU) –
  • P4+4 (CPU) 1
  • P4 (CPU) –
  • PCI-E 6 pin (GPU) –
  • PCI-E 6+2 pin (GPU) 4
  • PATA 4 pin 4
  • SATA 15-pin (HDD, Drives) 11
  • FDD (Floppy) 1
  • Mainboard Connector (PATA 4 pin) –
  • External fan connectors –

GPU compatibility

  • Multi-GPU ready
  • NVIDIA SLI readyTM certified
  • AMD CrossFireX certified

Casing

  • Dimensions without cable (L x W x D), (mm) 160 × 150 × 86
  • Weight incl. fixed cables (kg) 2.57
  • Color black
Release date NZ
August 15th, 2016
Brand
Box Dimensions (mm)
330x250x105
UPC
4260052184042
Product ID
25567272
