Amazing Versatility.
Unmatched Dependability.

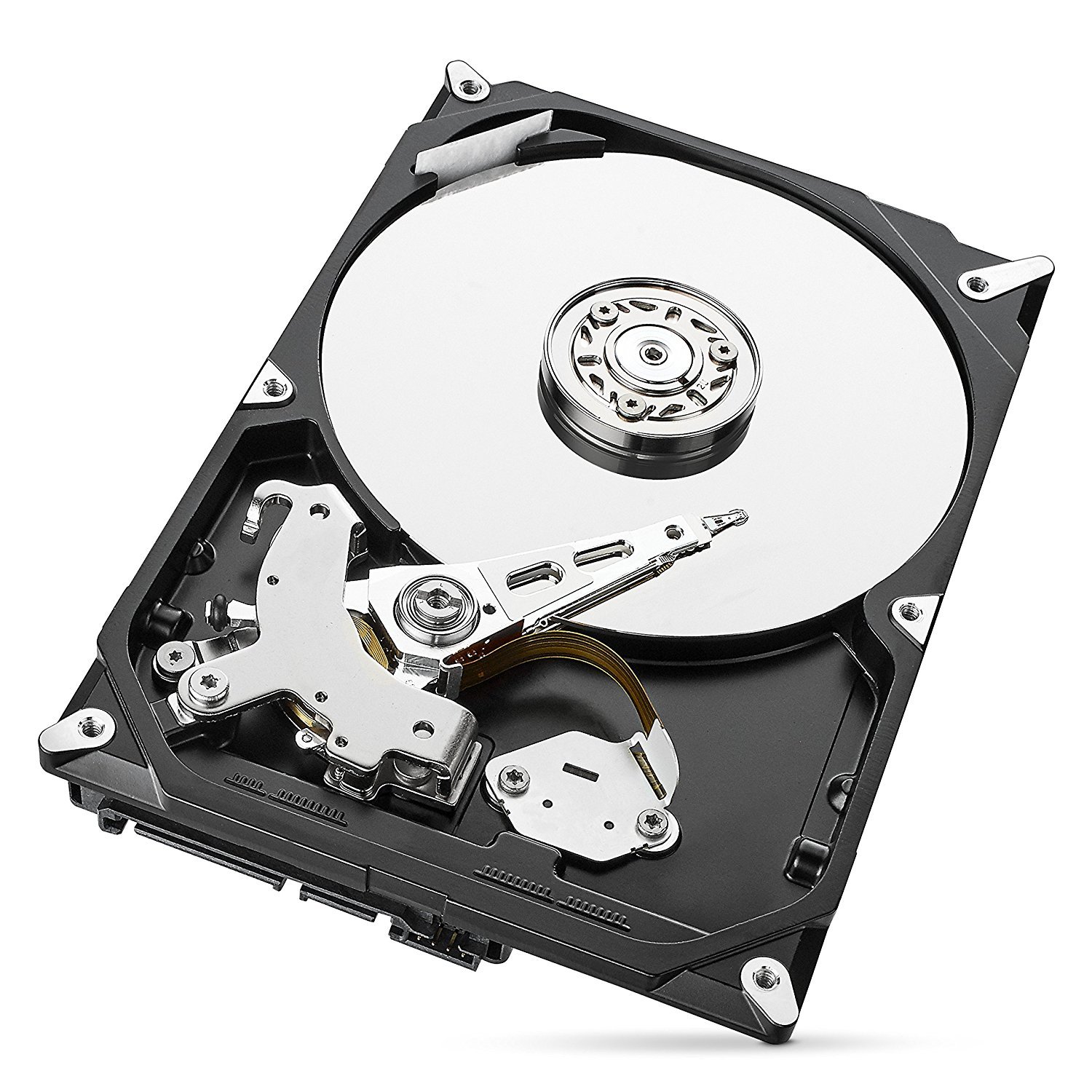

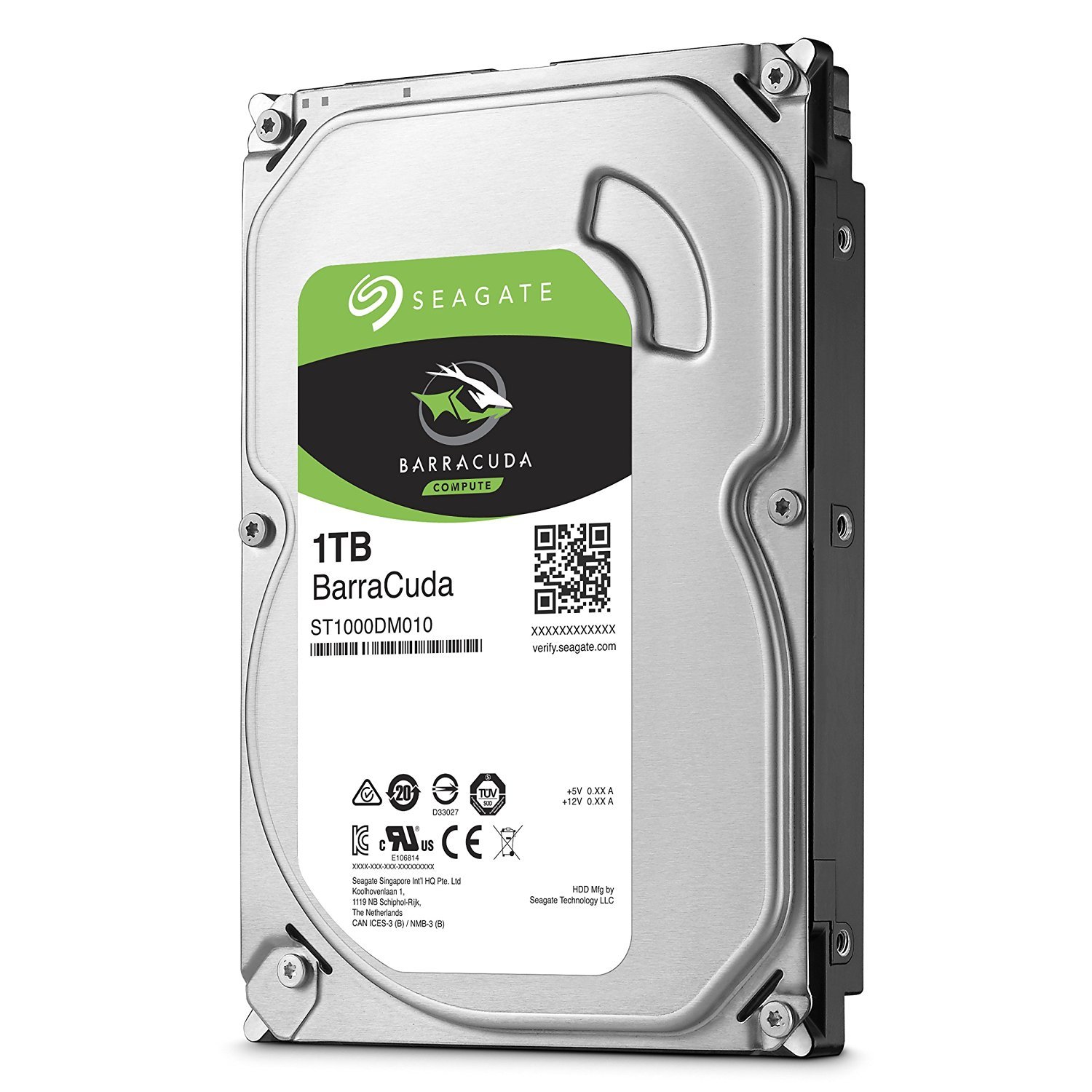

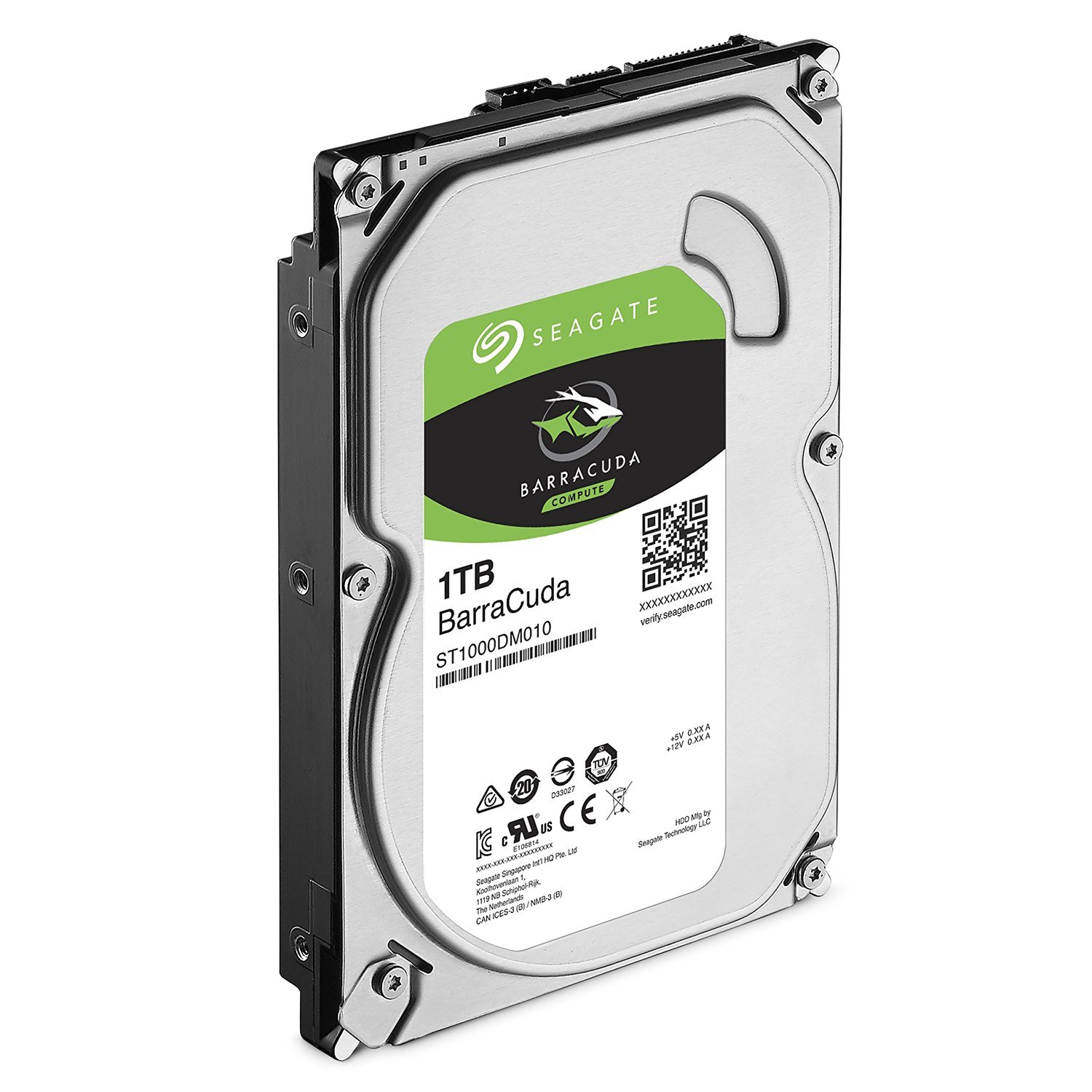

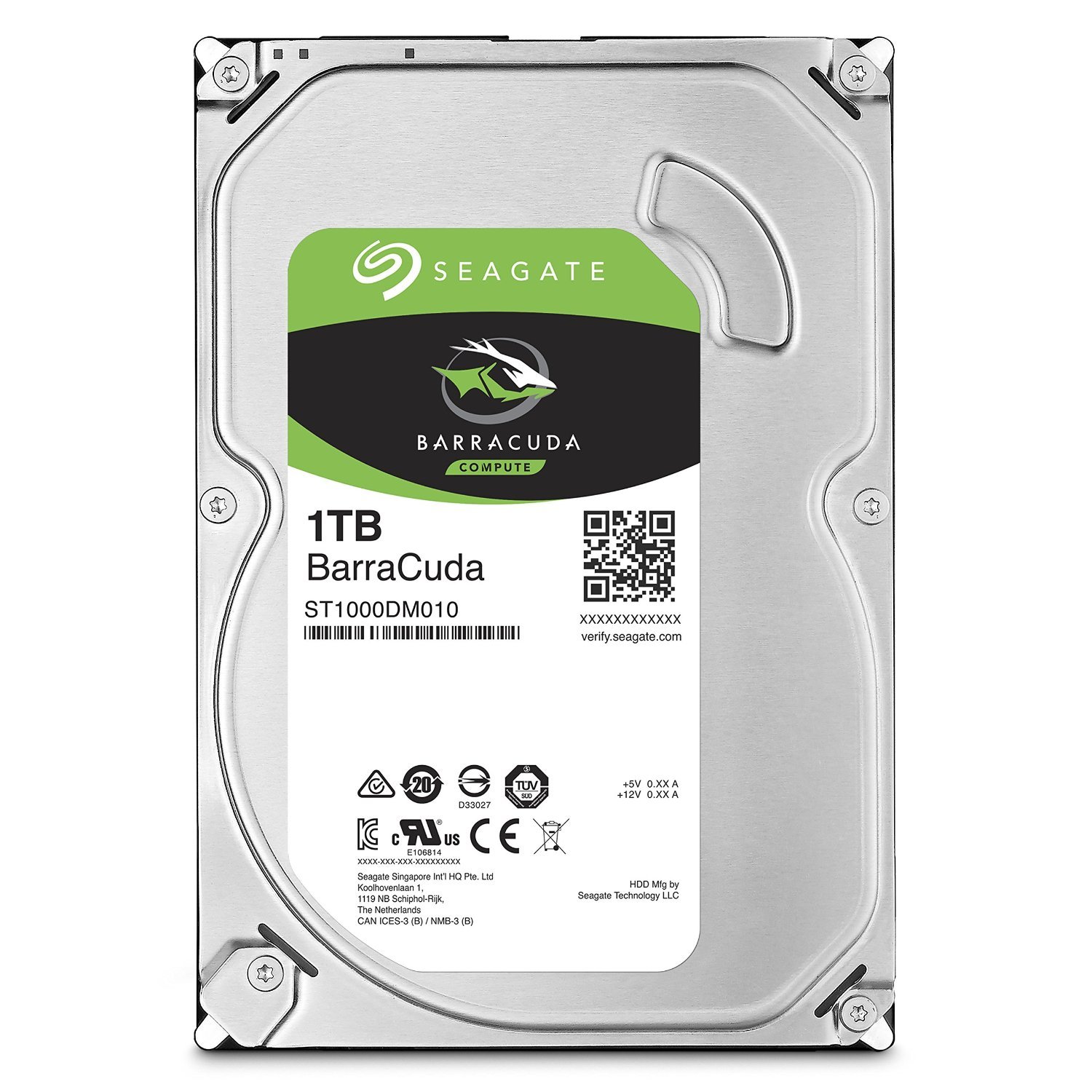

Seagate brings over 20 years of trusted performance and reliability to the Seagate® BarraCuda® 3.5-inch HDD.


FEATURES

• Versatile HDDs for all your PC needs bring you industry-leading excellence in personal computing.
• For over 20 years the BarraCuda family has delivered super-reliable storage for the hard drive industry.
• Capacities up to 8TB for desktops, BarraCuda leads the market with the widest range of storage options available.
• Advanced Power modes help save energy without sacrificing performance.
• SATA 6Gb/s interface optimizes burst performance.
• Seagate Secure® models provide Self-Encrypting Drive (SED) hardware-based data security and deliver an Instant Secure Erase feature for safe, fast and easy drive retirement. They meet NIST 800–88 media sanitization specifications and also support the Trusted Computer Group (TCG) Opal standard.
• Best-Fit Applications:
  • Desktop or all-in-one PCs
  • Home servers
  • Entry-level direct-attached storage devices (DAS)

SPECIFICATIONS

• Specifications: 1TB
• Standard Model Numbers: ST1000DM010
• Seagate Secure® Model Numbers: —
• Bytes per Sector: 4096
• Performance:
  • Interface: SATA 6Gb/s
  • SATA Transfer Rates Supported (Gb/s): 6.0/3.0/1.5
  • Max. Sustained Transfer Rate OD (MB/s): 210MB/s
  • Cache, Multisegmented (MB): 64
  • Rotational Speed (RPM): 7200
• Reliability/Data Integrity:
  • Load/Unload Cycles: 300000
  • Nonrecoverable Read Errors per Bits Read, Max: 1 per 10E14
  • Power-On Hours per Year (24×7): 2400
  • Workload Rate Limit (TB/Year): 55
  • Limited Warranty (years): 2
• Power Management:
  • Startup Power (A): 2
  • Operating Mode, Typical (W): 5.3
  • Idle Average (W): 4.60W
  • Standby Mode/Sleep Mode, Typical (W): 0.94/0.94
  • Voltage Tolerance, Inc. Noise (5V): ±5%
  • Voltage Tolerance, Inc. Noise (12V): ±10%
• Environmental/Tem­perature:
  • Operating (ambient, min): 0°C
  • Operating (drive case, max): 60°C
  • Nonoperating (ambient): –40°C – 70°C
  • Halogen Free: Yes
  • RoHS Compliance: Yes
• Physical:
  • Height (mm/in, max): 19.99mm/0.787in
  • Width (mm/in, max): 101.85mm/4.010in
  • Depth (mm/in, max): 146.99mm/5.787in
  • Weight (g/lb): 400g/0.88lb
