Computer Components:

16GB Kingston 2400Mhz DDR4 Non-ECC CL17 Dimm 2Rx8

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$380.00
In stock with NZ supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 4-6 days

Availability

Delivering to:

Estimated arrival:

  • Around 2-9 April using standard courier delivery

Description

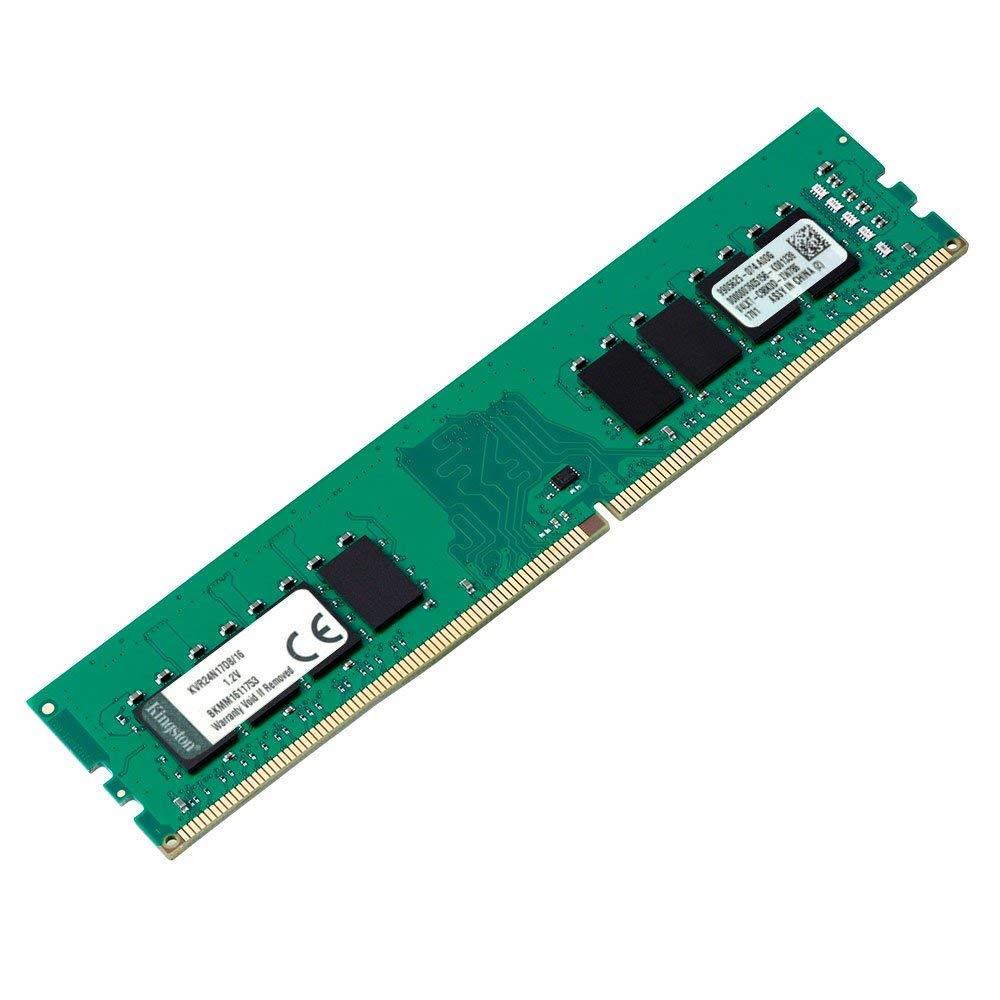

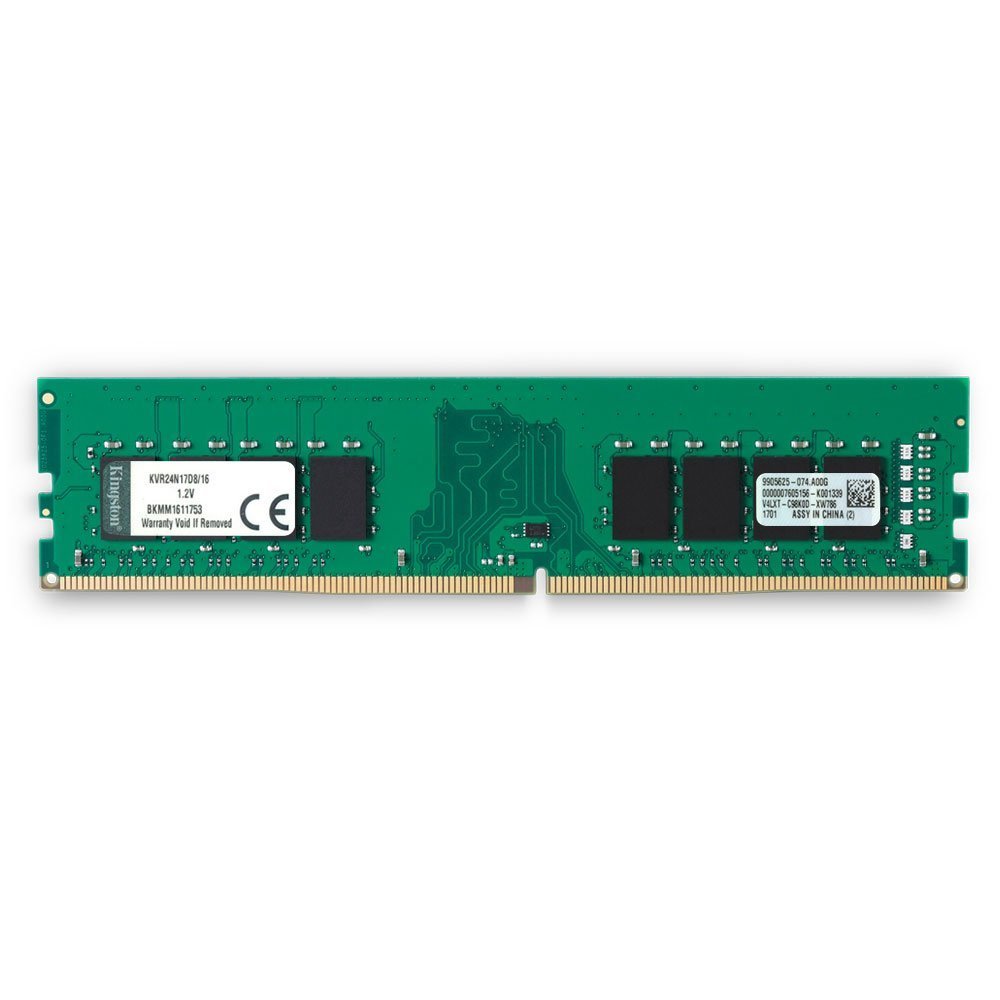

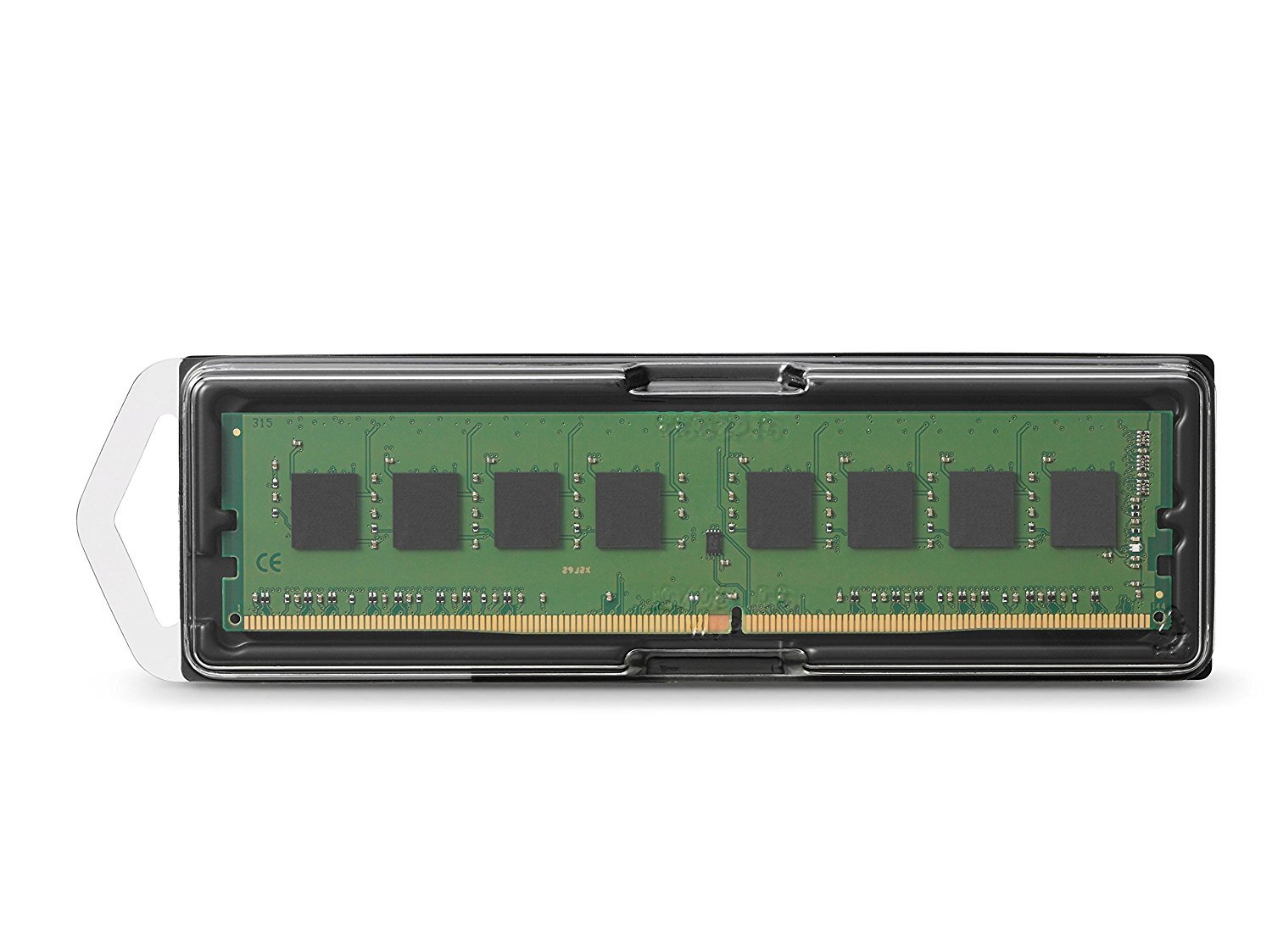

Kingston: 16Gb 2400Mhz Ddr4 Non-Ecc Cl17 Dimm 2Rx8

This document describes ValueRAM's KVR24N­17D8/16 is a 2G x 64-bit (16GB) DDR4–2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4–2400 timing of 17–17–17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES:

  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP – 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
Release date NZ
June 21st, 2018
Manufacturer code:
KVR24N17D8/16
